Garvee 6-Pack Trailer Stake Pocket Winches, 5,400 lb WLL, 16,200 lb Breaking Strength, 4 Cotter Pin Holes, Black

PAE_339RG5CV
PAE_339RG5CV
PAE_339RG5CV
PAE_339RG5CV
PAE_339RG5CV
PAE_339RG5CV
PAE_339RG5CV
PAE_339RG5CV
PAE_339RG5CV
PAE_339RG5CV
PAE_339RG5CV
PAE_339RG5CV
PAE_339RG5CV
PAE_339RG5CV
PAE_339RG5CV
PAE_339RG5CV
PAE_339RG5CV
PAE_339RG5CV
PAE_339RG5CV
PAE_339RG5CV
PAE_339RG5CV
PAE_339RG5CV
PAE_339RG5CV
PAE_339RG5CV
PAE_339RG5CV
PAE_339RG5CV
PAE_339RG5CV
PAE_339RG5CV
Regular price

C$179.99

Sale price C$179.99 Regular price C$234.99
Unit price
- 23%
Pack Size / Color ：6 Pack / Black
Garvee 6-Pack Trailer Stake Pocket Winches, 5,400 lb WLL, 16,200 lb Breaking Strength, 4 Cotter Pin Holes, Black - Black
In Stock. Shipping From Canada
Est. Delivery Time:
30 Day No- Hassle Returns
12-Month Warranty
Shipping & Returns
Total Price
C$179.99
PAE_339RG5CV

Garvee 6-Pack Trailer Stake Pocket Winches, 5,400 lb WLL, 16,200 lb Breaking Strength, 4 Cotter Pin Holes, Black
Description
Specification
Reviews

Trailer Stake Pocket Winches, 6 Pack

Equip your trailer for cargo securement with this 6 pack of stake pocket winches. Designed for flatbeds, utility trailers and work trucks, these assemblies provide mounting and manual tensioning at the trailer edge. Steel construction brings the spool and mounting stake together in a compact unit, giving you a practical way to organize restraint points for hauling equipment and materials.

Cargo Securement Features

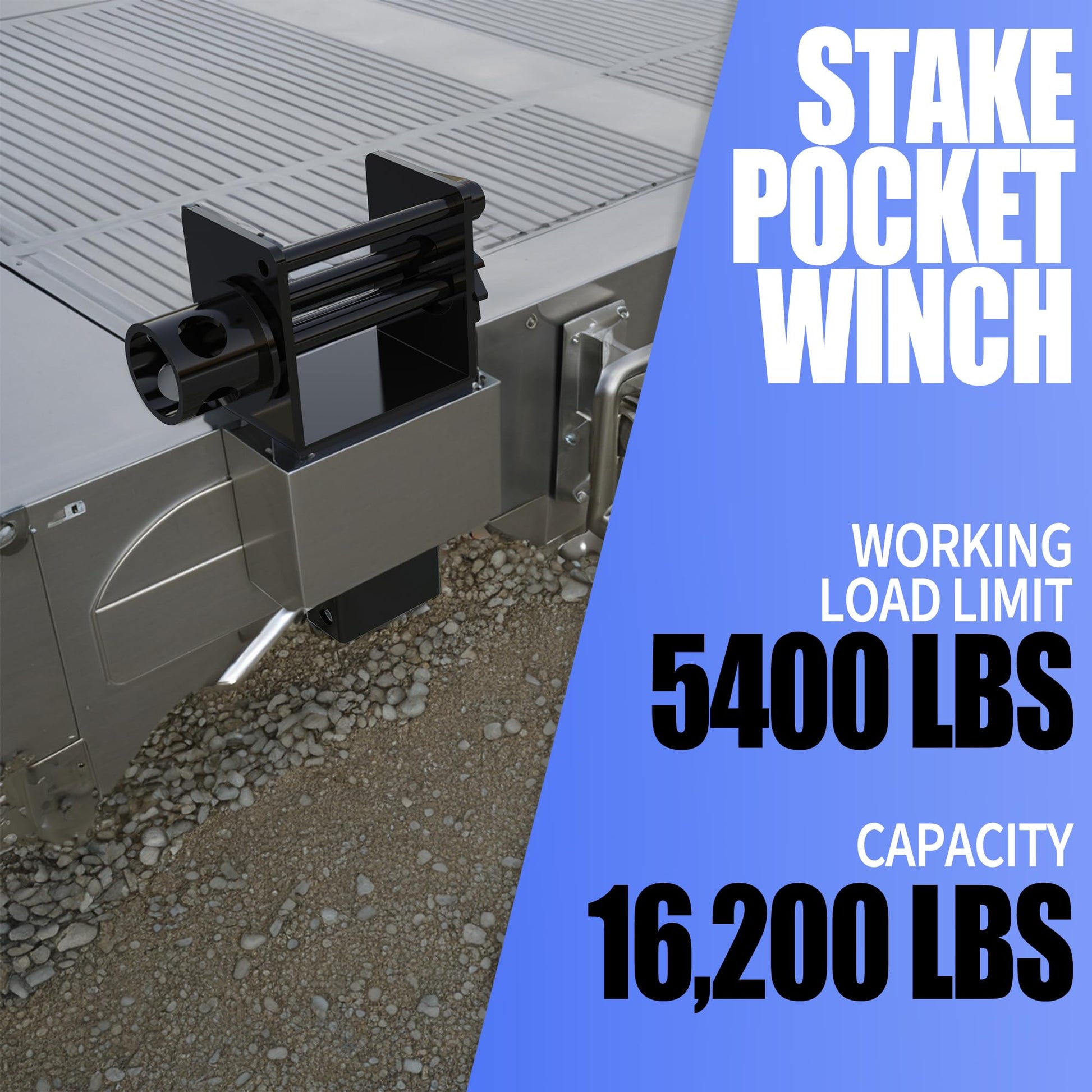

Mounted trailer winch with working load and breaking strength labels

Rated Load

Secure Cargo Within a Defined Working Limit

Each winch has a 5,400 lb working load limit and a 16,200 lb breaking strength. Use the working load limit when planning cargo securement; breaking strength is not an operating load rating.

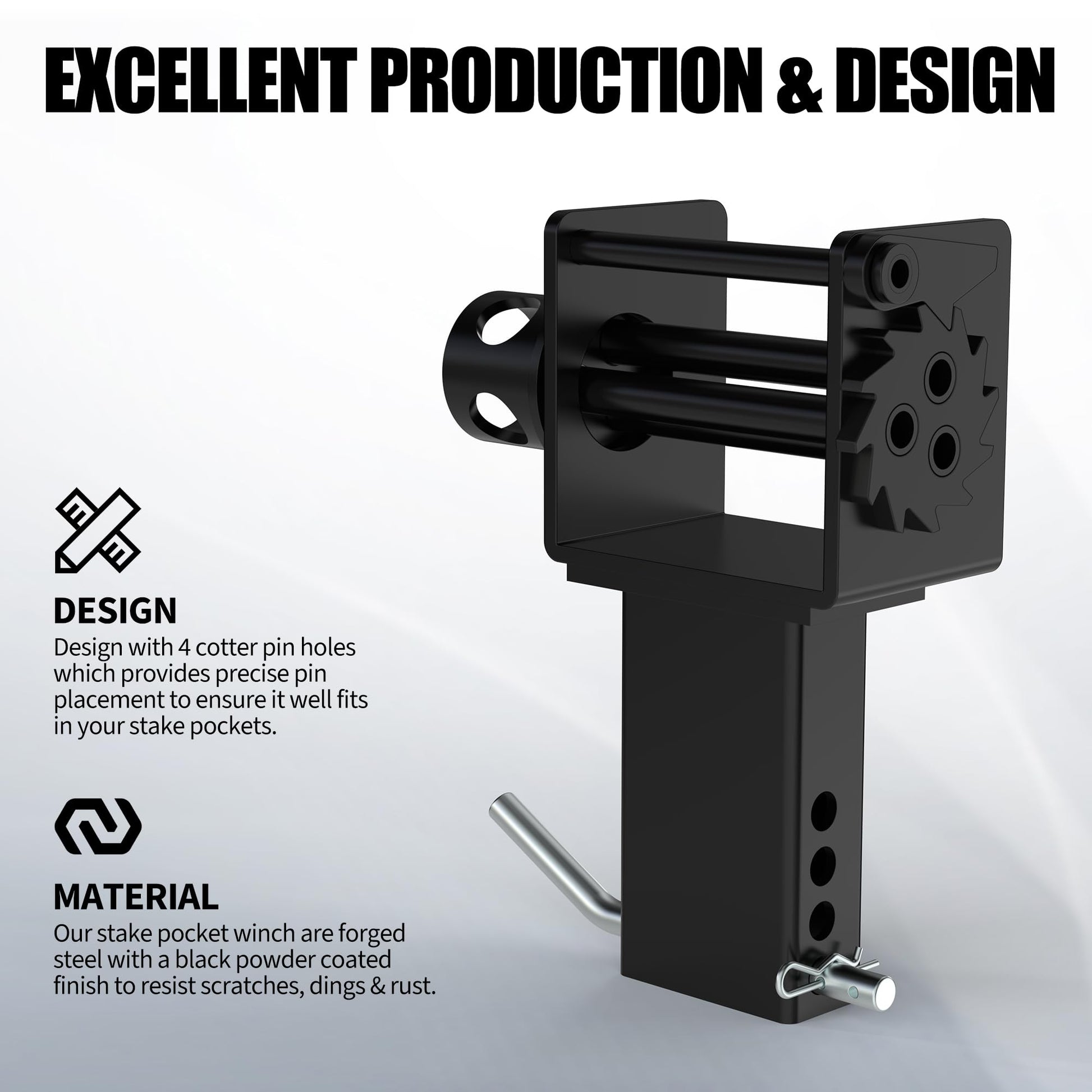

Black steel winch with 4 holes along the mounting stake

4 Pin Holes

Adjust the Mounting Position to Your Trailer

Select from 4 cotter pin holes along the stake to position the winch in a standard trailer stake pocket. Different hole positions accommodate varying pocket depths.

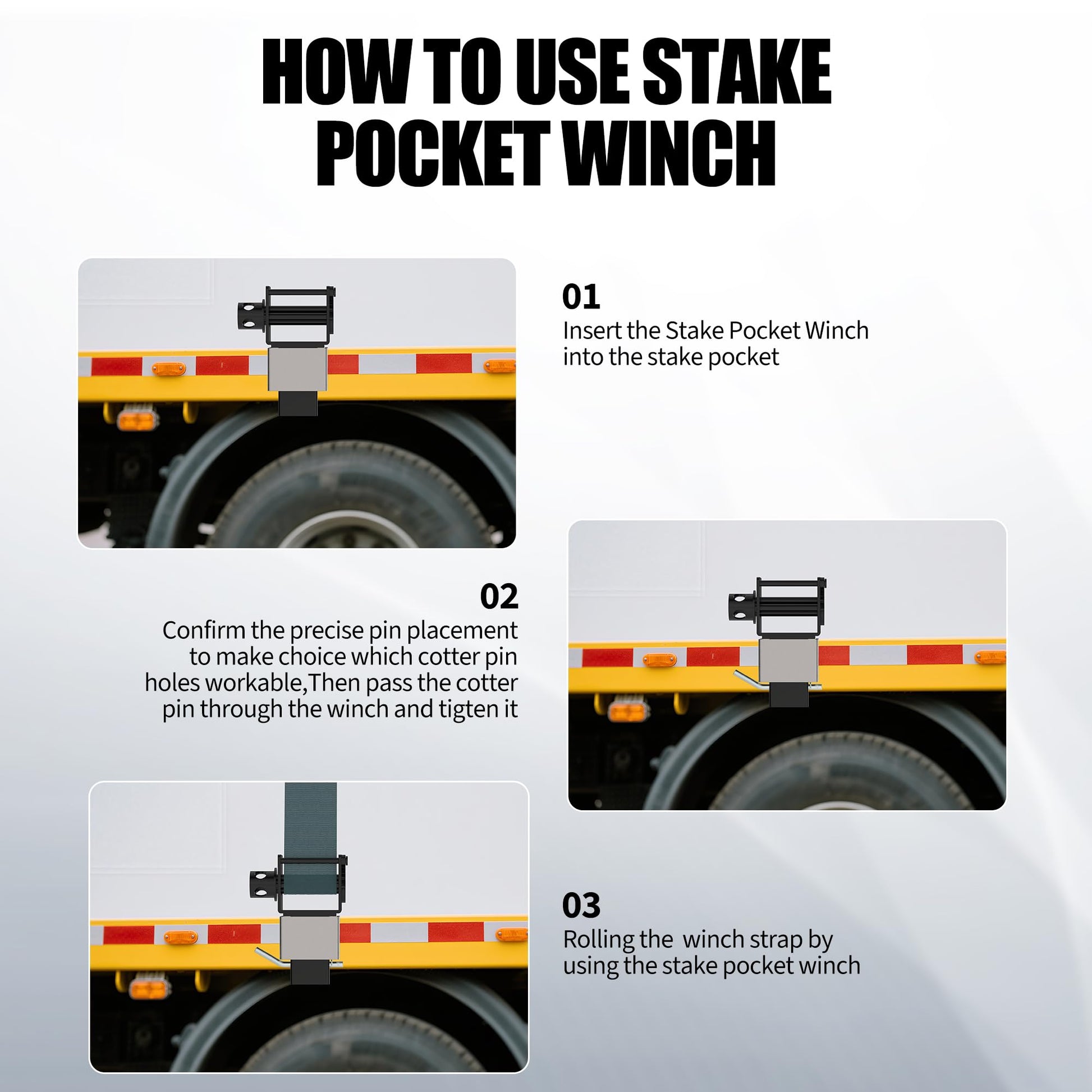

Installation sequence with stake insertion, locking pin placement and strap winding

Insert and Pin Installation

Mount Through an Existing Stake Pocket

Insert the stake into the pocket, choose the mounting hole, and secure the locking pin with its retaining clip. Feed the strap onto the spool to prepare for manual tensioning.

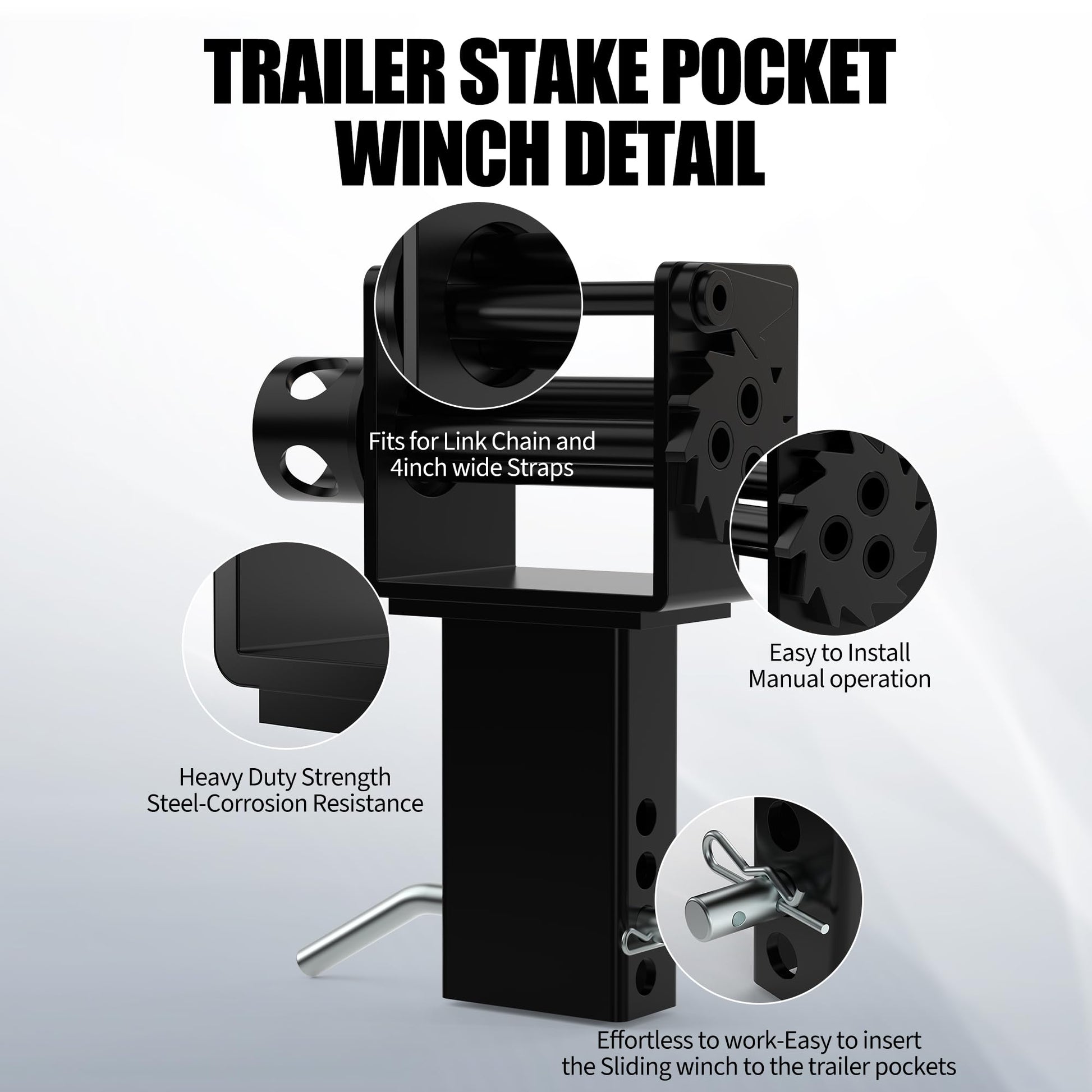

Winch spool, ratchet and locking pin with strap and link chain compatibility details

Strap and Chain Spool

Work With Your Cargo Securement Setup

Use the integrated spool with 4" wide straps or link chain. Manual operation lets you wind the securement material and apply tension at the trailer edge.

Product Details

  • Plan Rated Securement: Each winch provides a 5,400 lb working load limit for cargo restraint on trailers and flatbeds.
  • Match Pocket Depth: 4 mounting holes offer selectable pin positions to accommodate different stake pocket depths.
  • Resist Surface Wear: Black powder coating on structural steel helps resist rust, corrosion and scratches during routine use.
  • Control Strap Tension: Manual spool operation handles 4" wide straps or link chain for cargo securement.
  • Outfit Trailer Edges: Stake pocket mounting suits flatbeds, utility trailers and work trucks with compatible pockets.

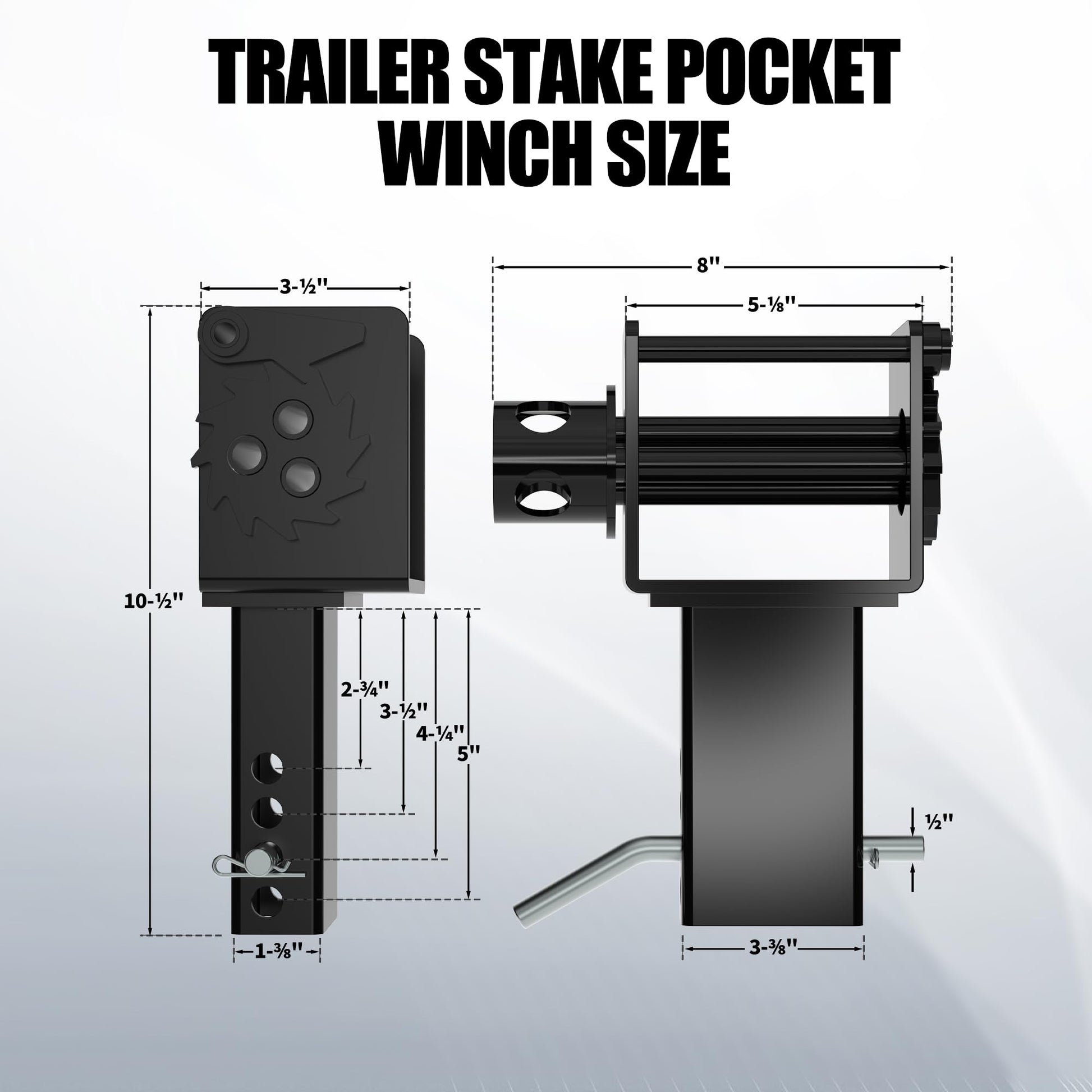

Specifications

Pack Quantity 6 winches
Working Load Limit per Winch 5,400 lb
Breaking Strength per Winch 16,200 lb
Compatible Strap Width 4 in
Overall Height 10.5 in
Stake Cross Section 3.375×1.375 in
Pin Diameter 0.5 in
Mounting Positions 4
Material Structural steel
Finish Black powder coating

Put Cargo Restraint at Your Trailer Edge

Bring manual tensioning to the stake pockets on your flatbed or utility trailer. Selectable pin positions help you place the winch for your pocket depth as you prepare a load. Choose these winches for your trailer cargo securement setup.
