| Filter Size | 16" |
| Motor Power | 1 HP |
| Max Flow Rate | 3962 GPH |
| Timer Range | 2 to 12 Hours |
| Max Head Height | 44 ft |
| Valve Functions | 7-Way |
| Material | Heavy-Duty Thermoplastic |
| Suitable Pools | Above Ground Pools up to 15,000 Gallons |

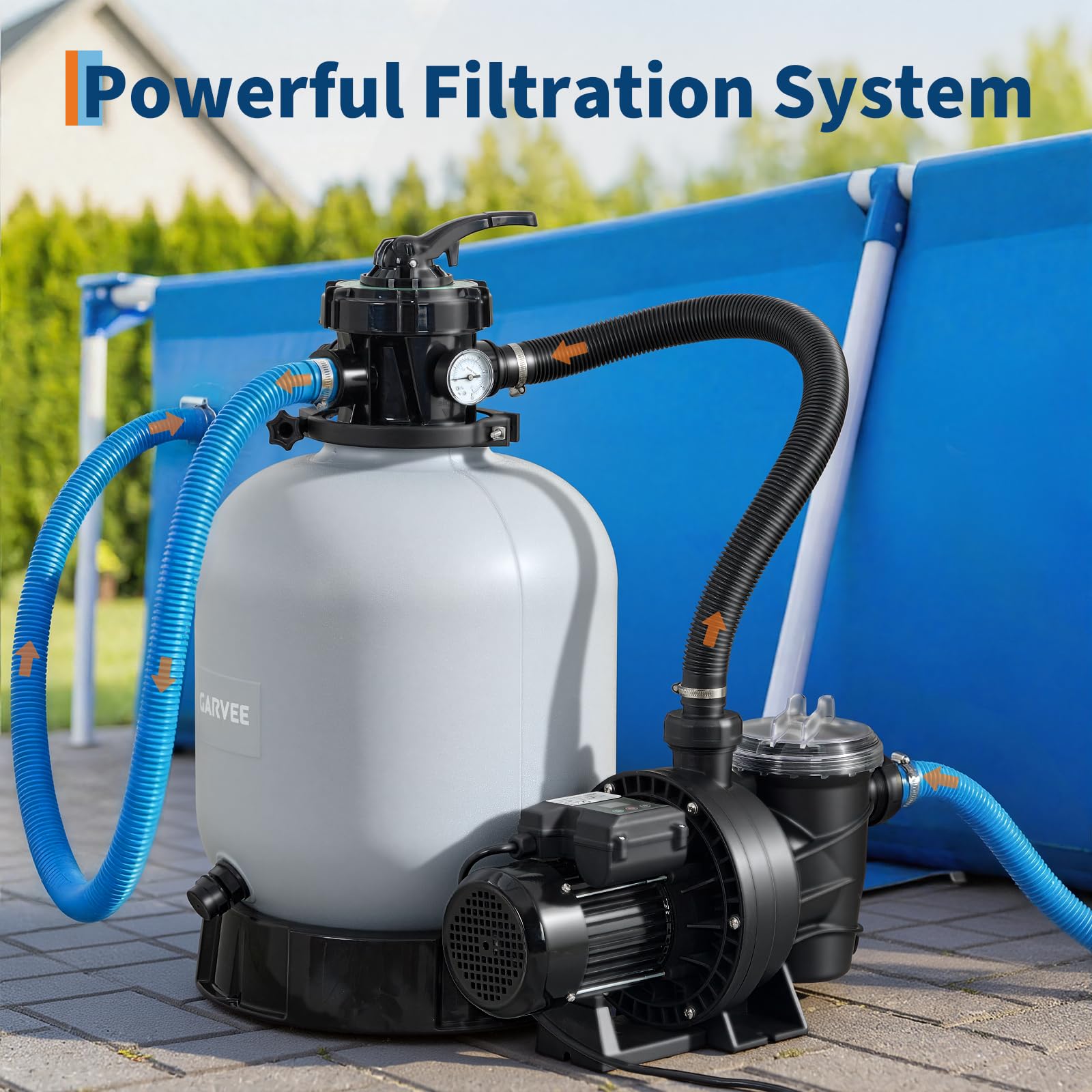

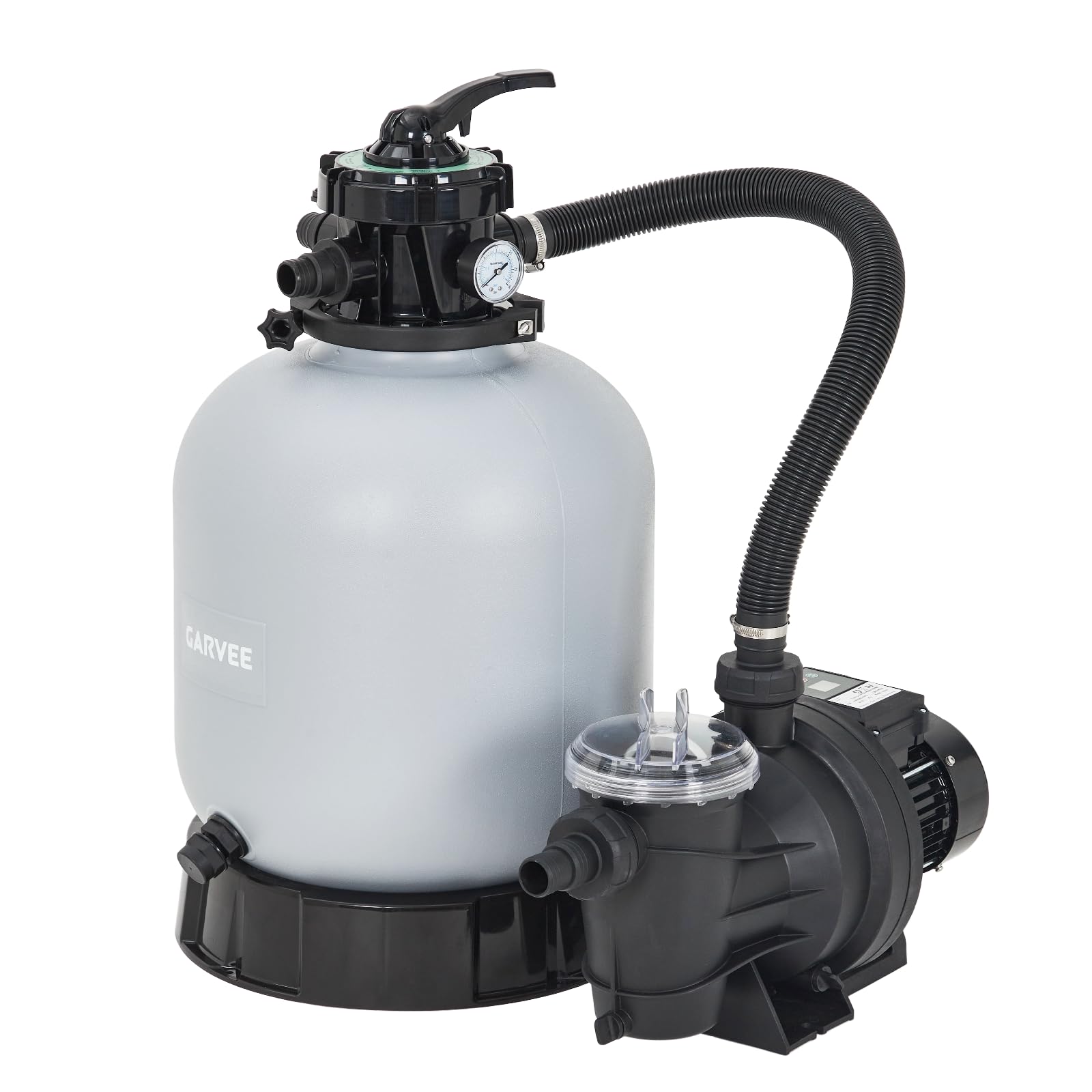

Maintain steady circulation and sand filtration for larger above ground pool setups with this 16" gray system. A 1 HP pump reaches 3962 GPH and works with a 16" sand filter, while the 7 way valve and preset timer support routine filtration, cleaning, and scheduled operation. Transparent strainer access and included fittings bring key pool care components into 1 coordinated setup for pools up to 15,000 gallons.

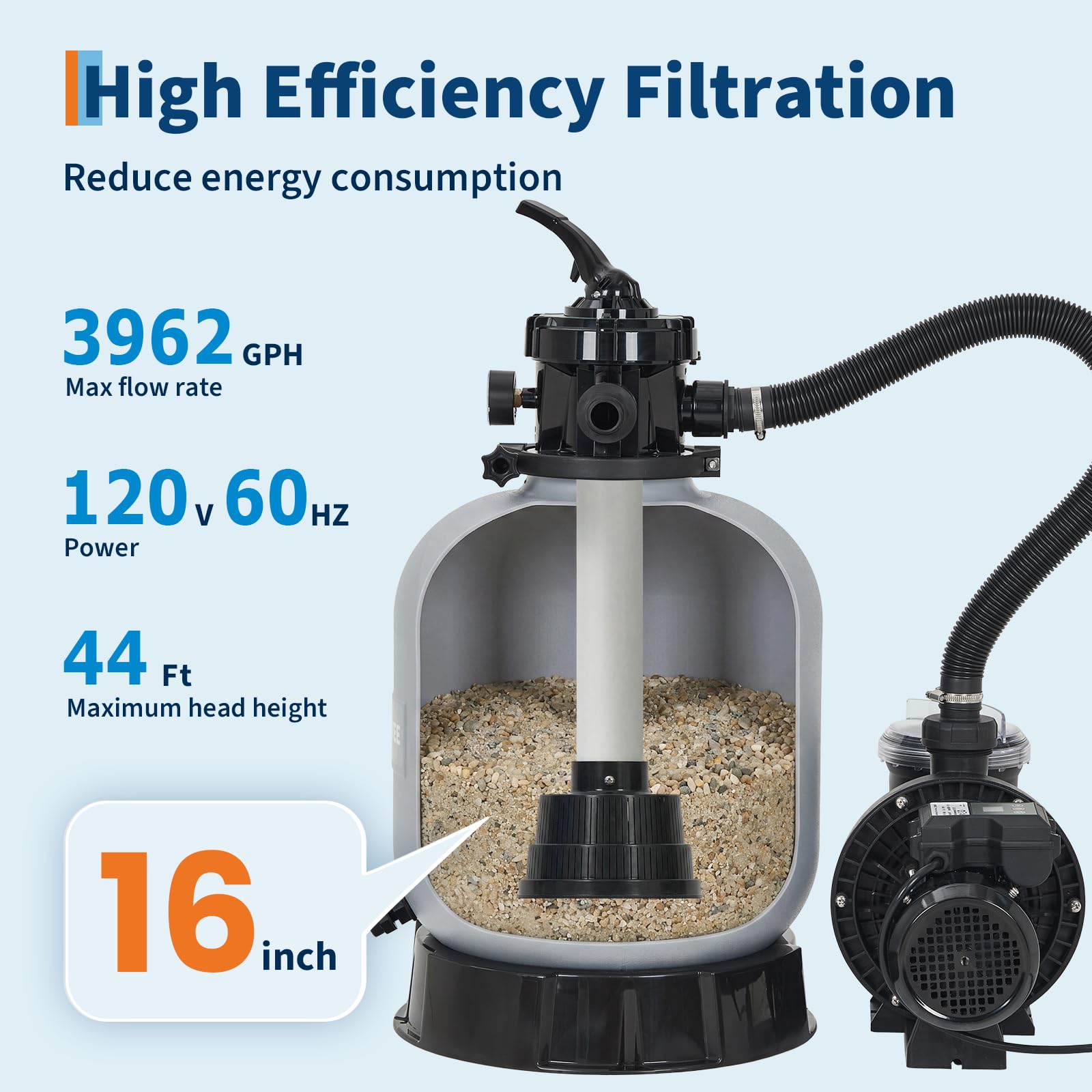

3962 GPH Flow and 16" Filter
1 HP circulation reaches 3962 GPH with 44 ft maximum head height, supporting regular water turnover across compatible above ground pool systems.

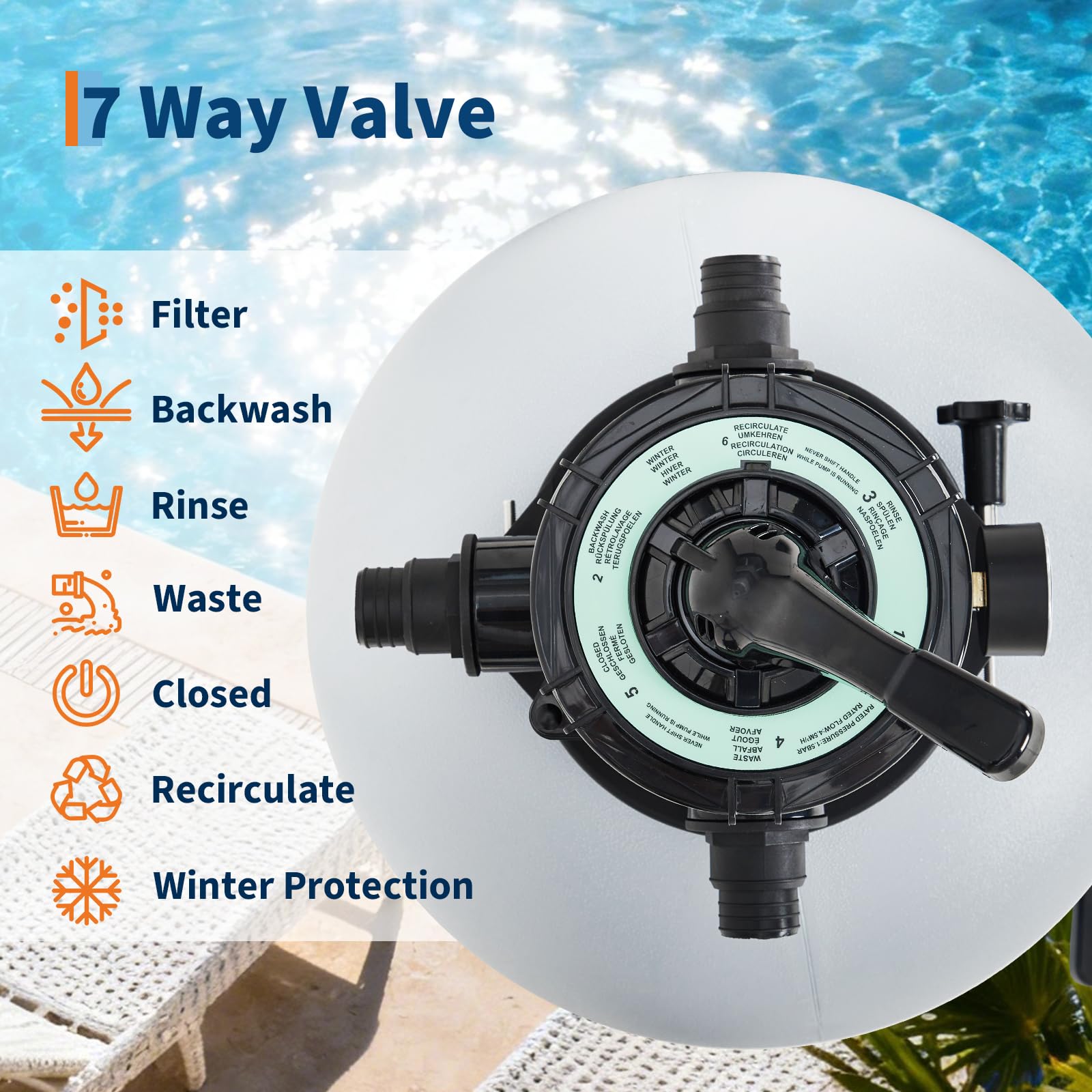

7 Way Multiport Valve
Filter, Backwash, Rinse, Waste, Closed, Recirculate, and Winter Protection modes group daily filtration, cleaning, and seasonal functions at the valve.

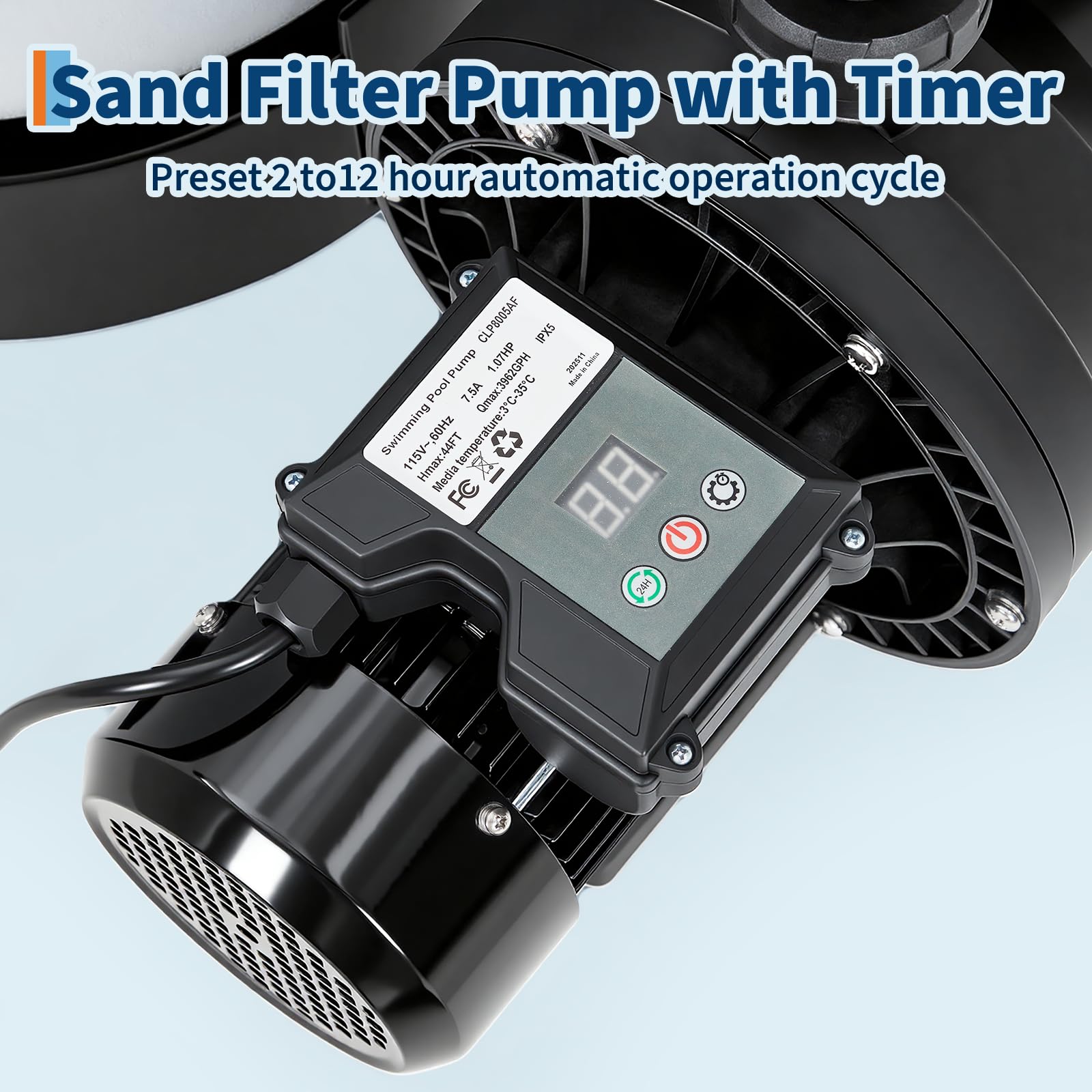

2 to 12 Hour Timer
Preset operation can be set from 2 to 12 hours, helping align pump run time with your regular pool care routine.

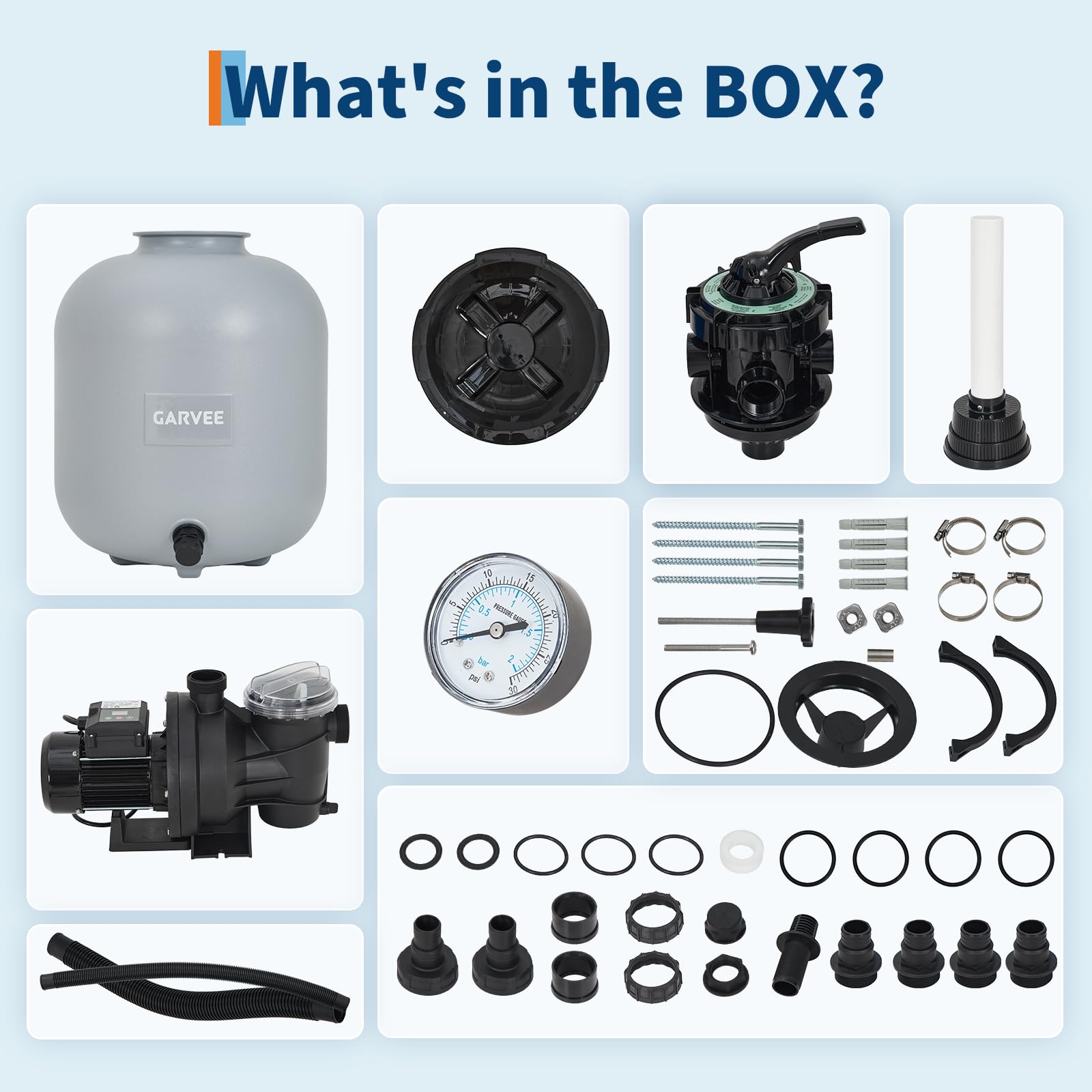

Included System Components
Tank, pump, valve, pressure gauge, hose, fittings, seals, and installation hardware are supplied together for system assembly.
| Filter Size | 16" |
|---|---|
| Motor Power | 1 HP |
| Maximum Flow Rate | 3962 GPH |
| Maximum Head Height | 44 ft |
| Timer Range | 2 to 12 hours |
| Power Input | 120 V / 60 Hz |
| Valve Positions | 7 |
| Pool Capacity | Up to 15,000 gal |
| Pool Type | Above Ground Pool |
| Color | Gray |
Combine 3962 GPH circulation, a 16" sand filter, 7 valve functions, and preset timer control in 1 above ground pool system. Choose this setup when you want steady everyday circulation with scheduled operation and practical cleaning modes built into the same filtration workflow.
