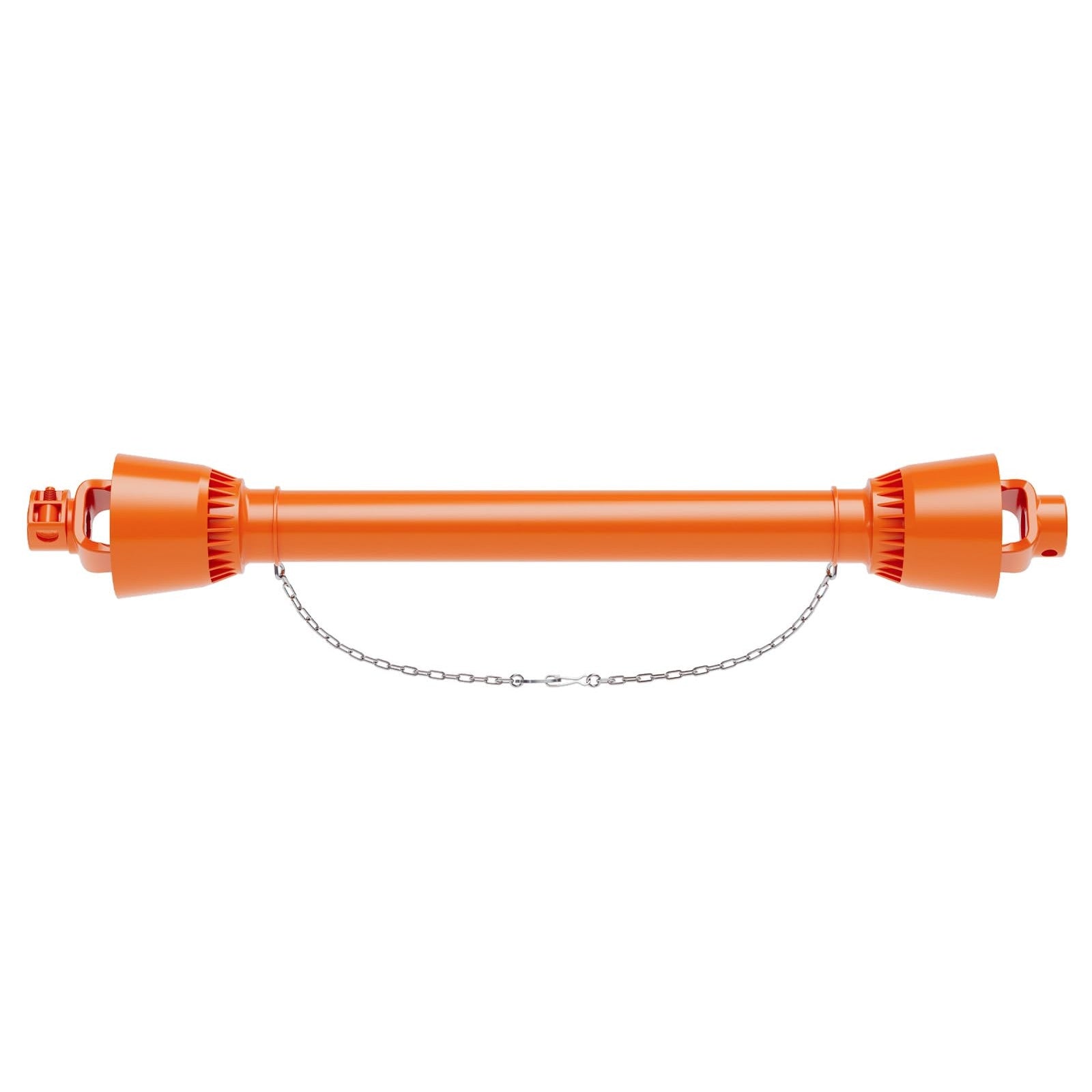

Garvee PTO Drive Shaft 1 3/8" PTO Shaft, 39"-55" Brush Hog PTO Shaft, 6 Spline End Round End PTO Driveline Shaft, Series 4 Tractor for Bush Hog,Finish Mower,Rotary Cutter

C$156.99

C$156.99 ~~C$203.99~~

- 23%

Size ：39"-55"

43"-61"

39"-55"

In Stock. Shipping From Canada

Est. Delivery Time:

30 Day No- Hassle Returns

12-Month Warranty

Total Price

C$156.99

Garvee PTO Drive Shaft 1 3/8" PTO Shaft, 39"-55" Brush Hog PTO Shaft, 6 Spline End Round End PTO Driveline Shaft, Series 4 Tractor for Bush Hog,Finish Mower,Rotary Cutter

【Reliable and Durable】: This PTO shaft is a robust series 4 driveline shaft, professionally certified by CE. It features a solid 20CrMnTi carburized steel universal joint and a Q345 steel tube within the shield, ensuring durability and dependability when used with various agricultural machinery.
【Versatile Design】: With a 6-spline tractor end and a round implement end, our brush hog PTO shaft is standardized at 1-3/8 inches. It seamlessly matches implements and tractors of the same size and type, delivering exceptional driving force to your machinery for enhanced performance.
【Adjustable Length and Speed】: The tiller PTO shaft is equipped with a telescoping steel tube, a universal joint, and yokes, offering compressed and extended lengths of 39" / 1000 mm and 55" / 1400 mm. It provides 35 Hp, 26 Kw, and 460 Nm torque at 540 rpm, and 53 Hp, 39 Kw, and 360 Nm torque at 1000 rpm, enabling different speeds for two sides of the PTO driveline shaft.
【Easy Assembly and Safer Use】: Our PTO extender shaft allows for easy assembly and direct replacement, serving as an efficient power transmission tool. It is equipped with a security chain and sturdy shield to eliminate potential hazards during the transmission process.
【Wide Range of Applications】: The PTO shaft transfers power from the tractor to PTO-powered attachments and finds extensive use in mowers, wood chippers, rotary tillers, rotary cutters, brush cutters, hush hogs, tractors, fertilizer spreaders, and more. It offers effective control over machine speed and power, providing powerful torque conversion and reliability.

Garvee 1 3/8" PTO Drive Shaft, 6 Spline Adjustable
Benefits:
• CE-certified Series 4 driveline
• 20CrMnTi carburized steel joint
• Adjustable 39"–55" length range
• Dual speed: 540/1000 rpm
• Security chain + safety shield

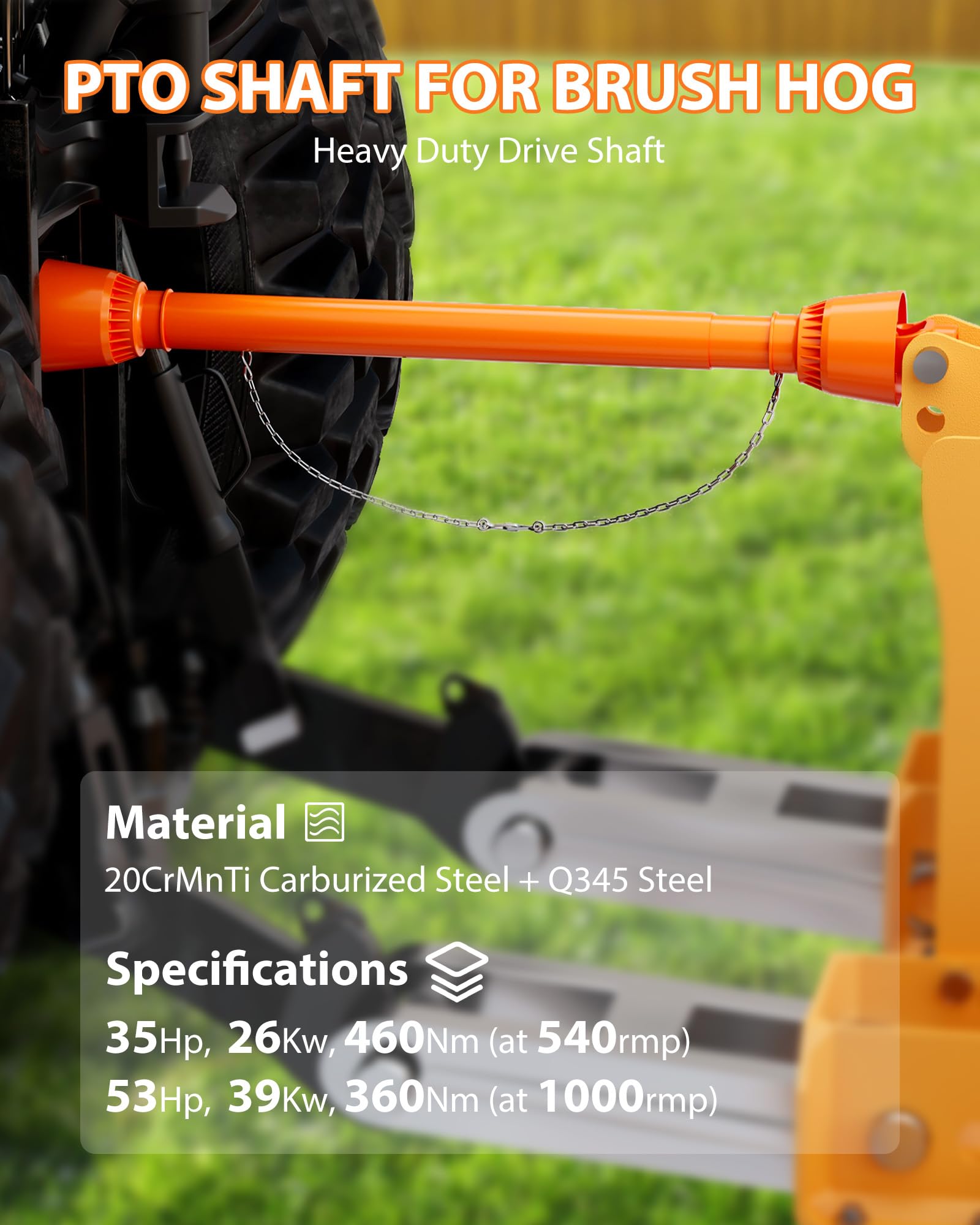

Heavy-duty PTO drive shaft with reinforced steel construction and safety shield

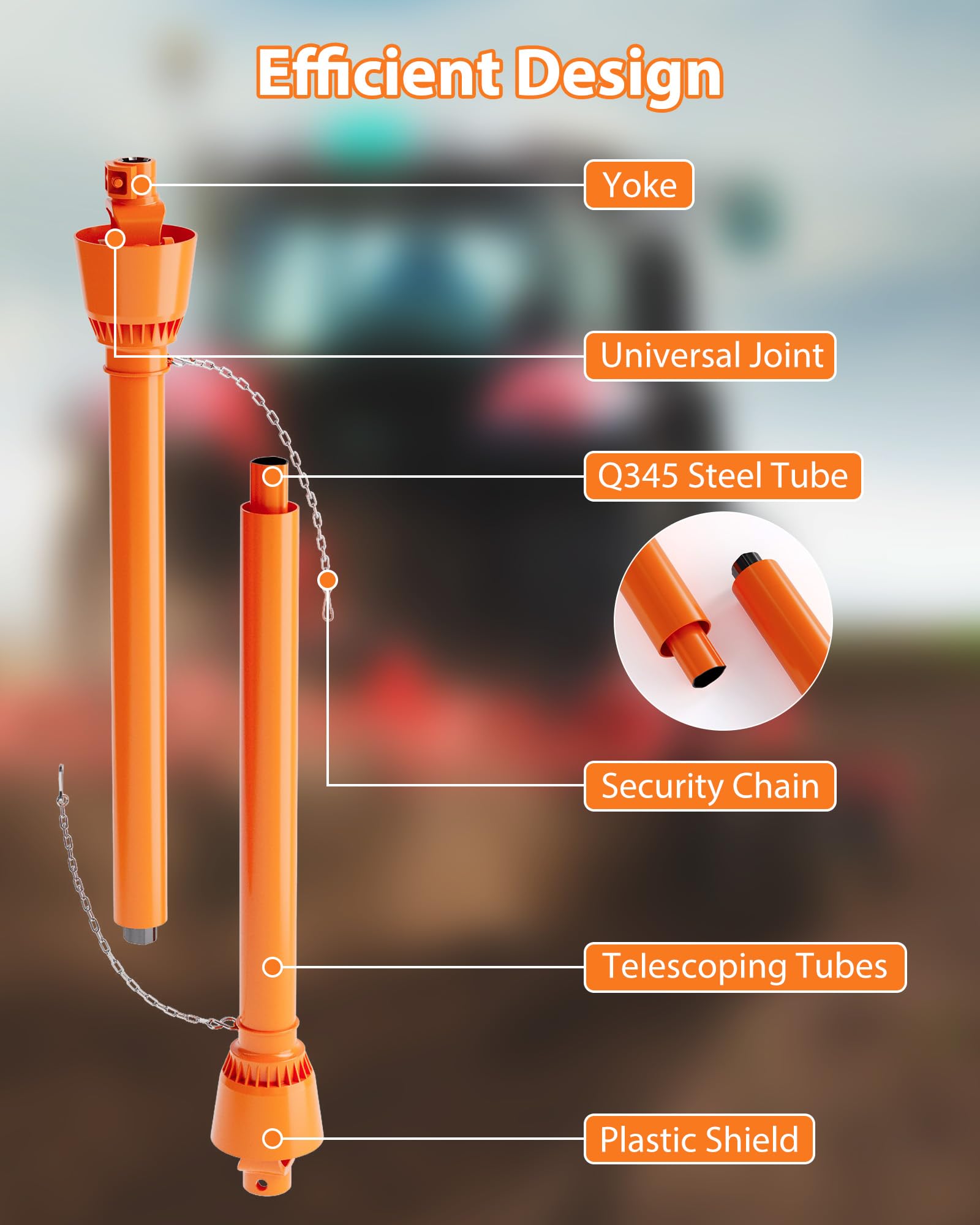

Reliable and Durable PTO Shaft

Series 4 driveline shaft with CE certification features a solid 20CrMnTi carburized steel universal joint and Q345 steel tube within the shield, ensuring durability across various agricultural machinery.

Professional CE certification for quality assurance
Carburized steel universal joint resists wear
Q345 steel tube adds structural integrity

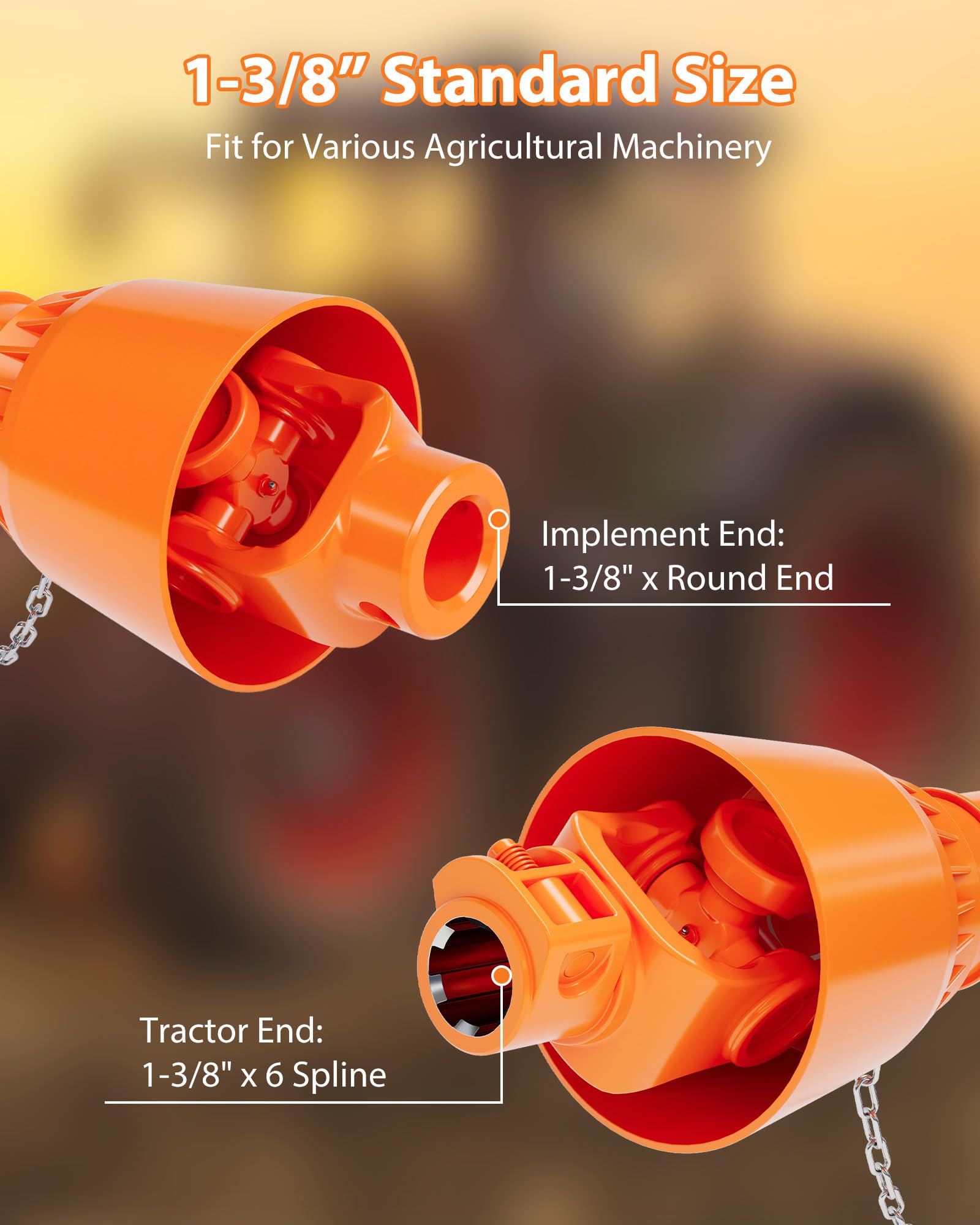

Versatile Design for Compatibility

6-spline tractor end with a round implement end, standardized at 1-3/8 inches. Seamlessly matches implements and tractors of the same size and type for enhanced performance.

6-spline tractor end for secure connection
Round implement end for universal fit
Standard 1-3/8" size maximizes compatibility

Telescoping steel tube showing adjustable length from 43 to 61 inches

Adjustable Length and Speed Options

Telescoping steel tube offers compressed length of 43 inches (1100 mm) and extended length of 61 inches (1550 mm). Delivers 35 HP at 540 rpm and 53 HP at 1000 rpm for flexible speed control.

Hydraulic adjustable length for custom fit
35 HP 460 Nm torque at 540 rpm
53 HP 360 Nm torque at 1000 rpm

Security chain and sturdy shield for safe PTO shaft operation

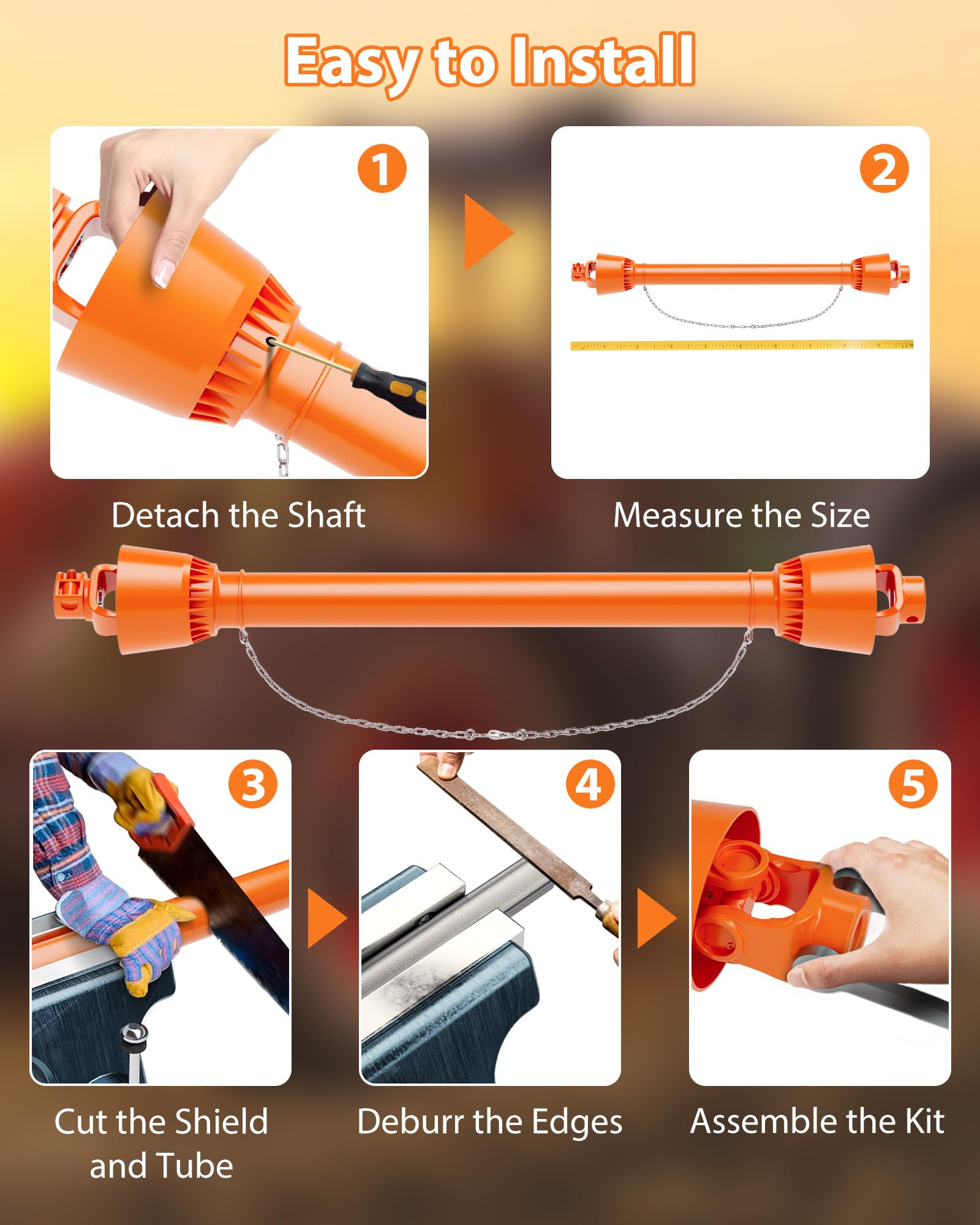

Easy Assembly and Secure Operation

Easy assembly and direct replacement with efficient power transmission. Equipped with a security chain and sturdy shield to eliminate potential hazards during operation.

Simple installation for direct replacement
Security chain prevents accidental detachment
Sturdy shield covers rotating components

What's Included

PTO Drive Shaft Assembly
Safety Shield
Security Chain
Installation Manual

Specifications

Technical Details

Garvee 1 3/8" PTO Drive Shaft, 6 Spline Adjustable Length, Series 4 CE Certified

Series 4 driveline • 20CrMnTi steel joint • 39"-55" adjustable • 540/1000 rpm

Shaft type Series 4 driveline

Material 20CrMnTi + Q345 steel

Length range 39" – 55"

Connection 6-spline tractor / round implement

Why Garvee?

100M+

Customers worldwide

230K+

Positive reviews

10+

Years of brand expertise

30-Day Return Policy

Dedicated Support

12-Month Warranty

Shipping from Canada

Reviews

works great

Very nice part. Easy to disassemble cut to length and reassemble. Works great.

Outstanding heavy duty PTO drive shaft

Exceptionally well engineered tractor PTO drive shaft unit. It handles severe agricultural implement operations and heavy tractor torque tasks flawlessly, features a highly secure structural layout, and provides an incredibly stable build. Highly recommended!

Sturdy implement shaft

Very stable and tough layout. The quick release yoke functions cleanly. Takes a little muscle to line up the splines on the tractor shaft the first time, but it works flawlessly after that.

Tough build

Exactly what I needed for my finish mower. Strong steel plates and smooth power transfer.

Good reliable drive shaft

Solid heavy duty performance. Keeps the machinery running smooth. The shipping box arrived slightly beat up on one corner, but the actual steel shaft inside was protected well and completely pristine.

Excellent structural layout and smooth rotation

Absolute lifesaver for my bush hog. The structural integrity is top tier, and it maintains balanced rotation without any vibration or rattling even under heavy brush clearing loads. The included safety chains are heavy duty and hold the shield in place perfectly.

Solid and dependable shaft

Very rugged build. The plastic safety shield feels durable and covers the universal joints nicely. Had to trim the length down slightly to fit my specific rototiller setup, but it functions perfectly now.

Heavy duty construction and perfect fit

Genuinely impressed by the build quality of this PTO drive shaft. I hooked it up to my rotary cutter behind a forty horsepower tractor, and it handles the high torque demands flawlessly. The telescoping action is smooth, and the quick-disconnect collars lock onto the splines securely. Highly recommend for heavy farm equipment.

Very solid PTO shaft

Fits my tractor perfectly and runs smooth. Easy to grease and install.

Brand	GARVEE
Material	20CrMnTi Carburized Steel + Q345 Steel
Collapsed Length	39in / 100cm
Extended Length	55in /140cm
Implement End	1-3/8" x Round End
Tractor End	1-3/8" x6 Spline
Item Weight	‎‎‎‎‎‎‎‎‎‎‎‎‎‎ 26 Pounds
Included Components	‎‎‎‎‎‎‎‎‎‎‎‎‎1 x ‎‎‎‎‎‎‎‎‎‎‎‎‎‎PTO Drive Shaft
