| Lifting Capacity | 550 lb |
| Lift Operation | Hydraulic foot pedal |
| Lift Height | 15″ / 21″ / 29″ |
| Inner Cradle Gap | 15.7″–33.8″ |
| Tire Cradle Size | 13″×10″ |
| Frame Material | Powder coated steel |
| Included Straps | 2 straps, 39.37″ each |
| Color | Red |
Support routine mower care with a red hydraulic lift jack rated for 550 lb. Adjustable tire cradles and 3 working heights help position riding and zero turn mowers for service, while the foot pedal operates the hydraulic cylinder.

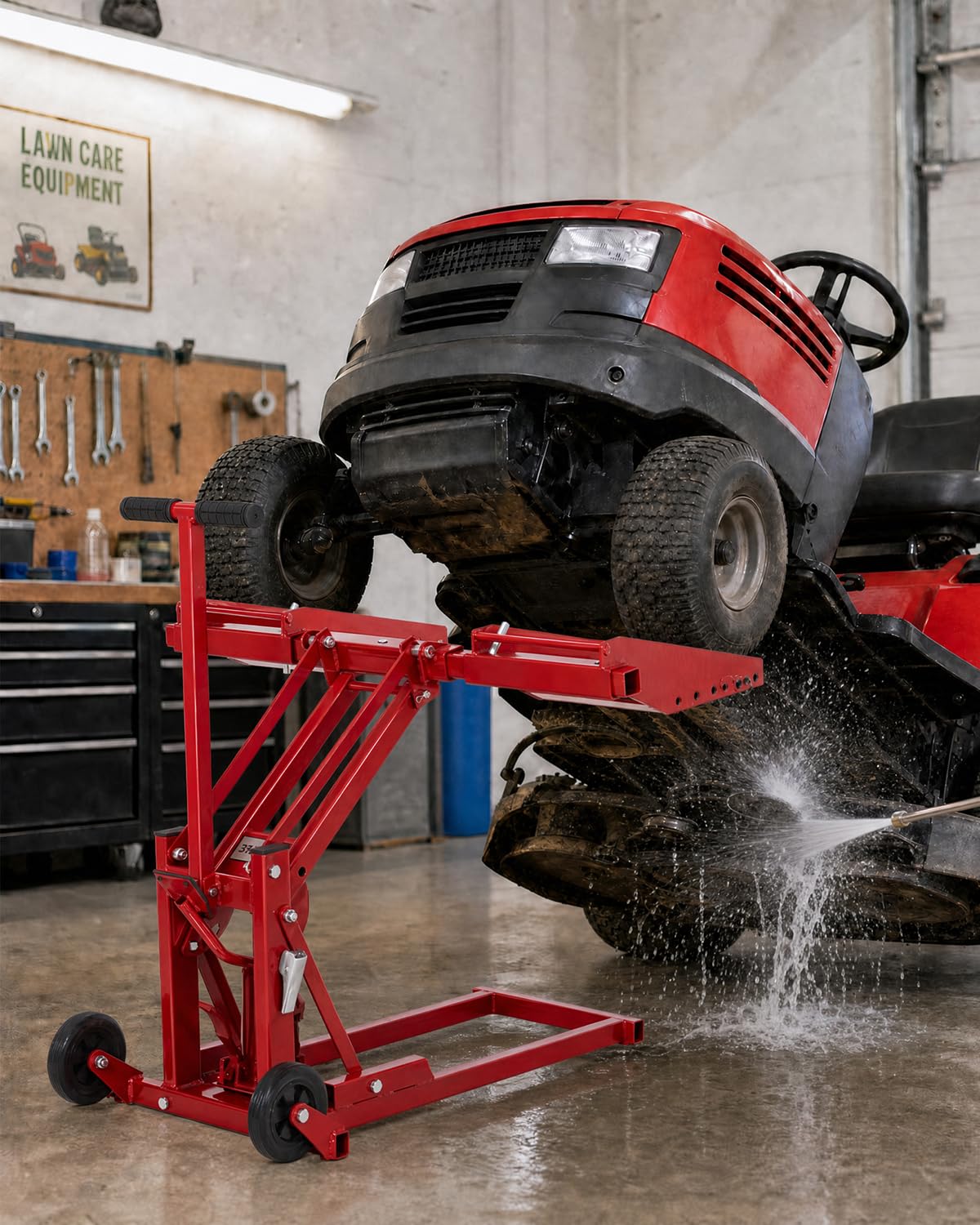

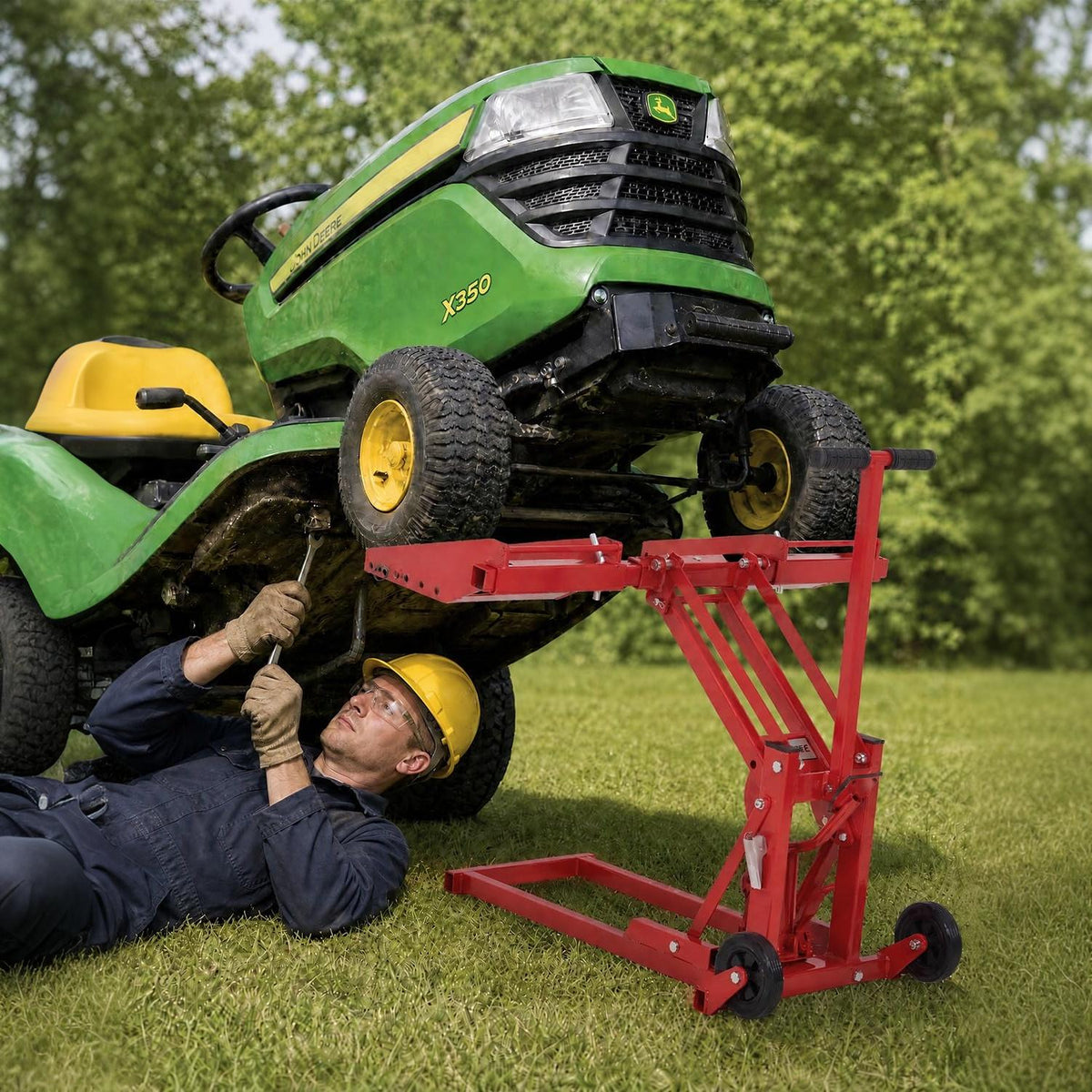

Grass clippings and debris collect underneath mower decks, where blades and belts also need periodic attention. Raising the front wheels provides room to inspect these areas and reach components during routine maintenance.
Hydraulic foot pedal operation raises the mower without hand cranking. Tire cradles hold the wheels, while locking pins and a built in safety lock help secure the working position.

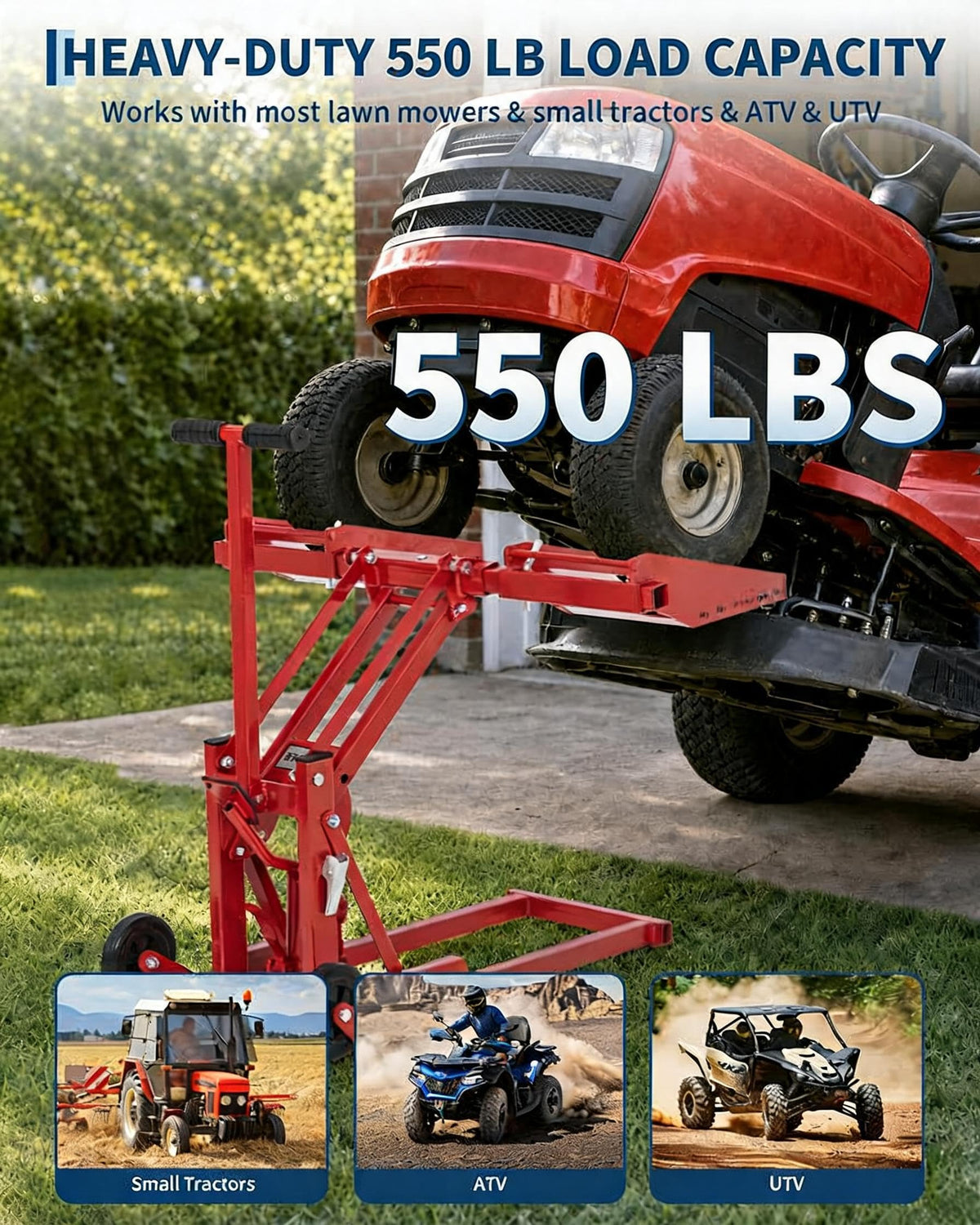

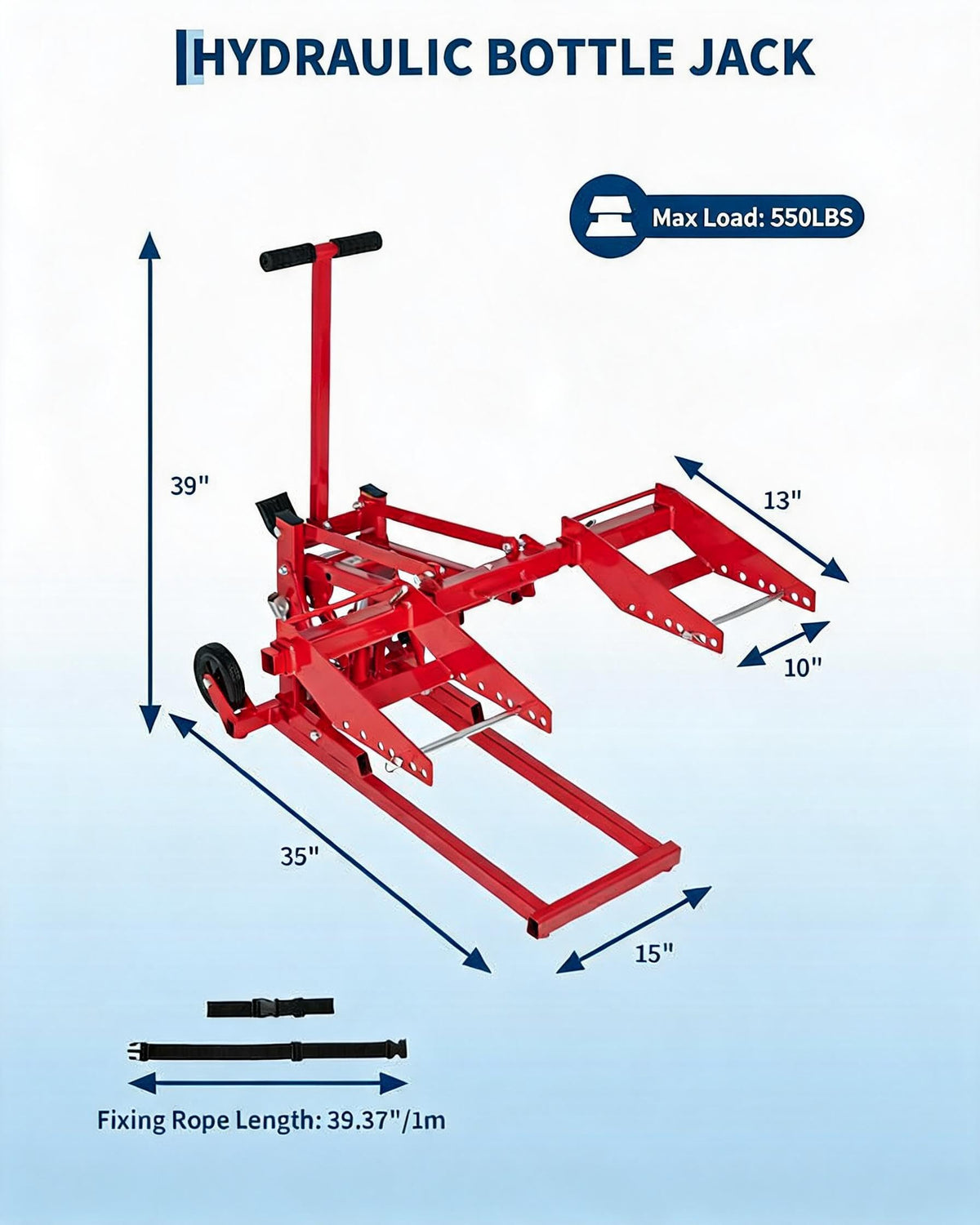

Powder coated steel forms the support frame, with a 550 lb lifting capacity. The tire cradles measure 13″×10″ and support mower maintenance such as blade replacement, belt service and debris removal.

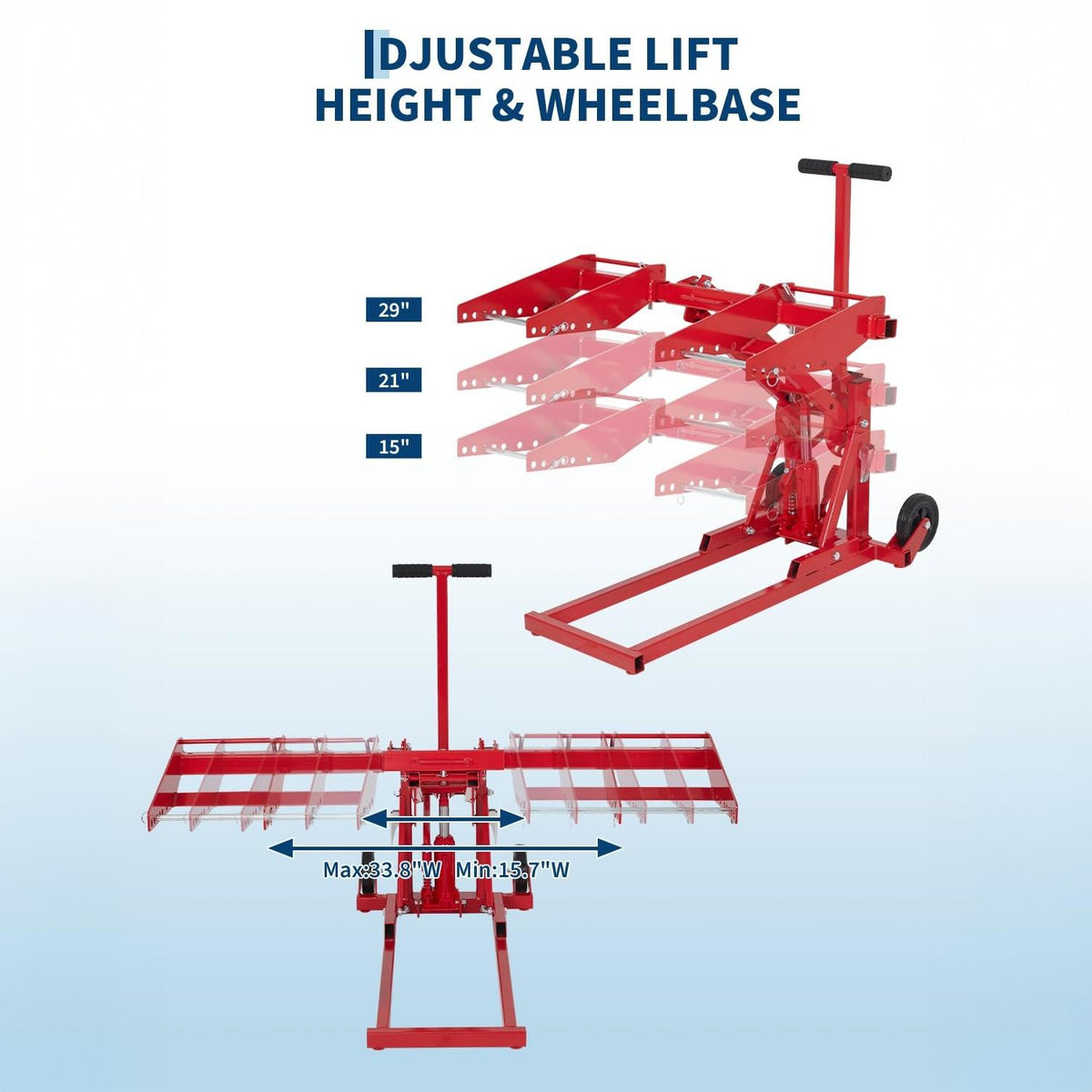

Choose a lift height of 15″, 21″ or 29″ for access underneath the mower. Adjust the inner gap between the cradles from 15.7″ to 33.8″, then secure the cradle position with the locking pins.

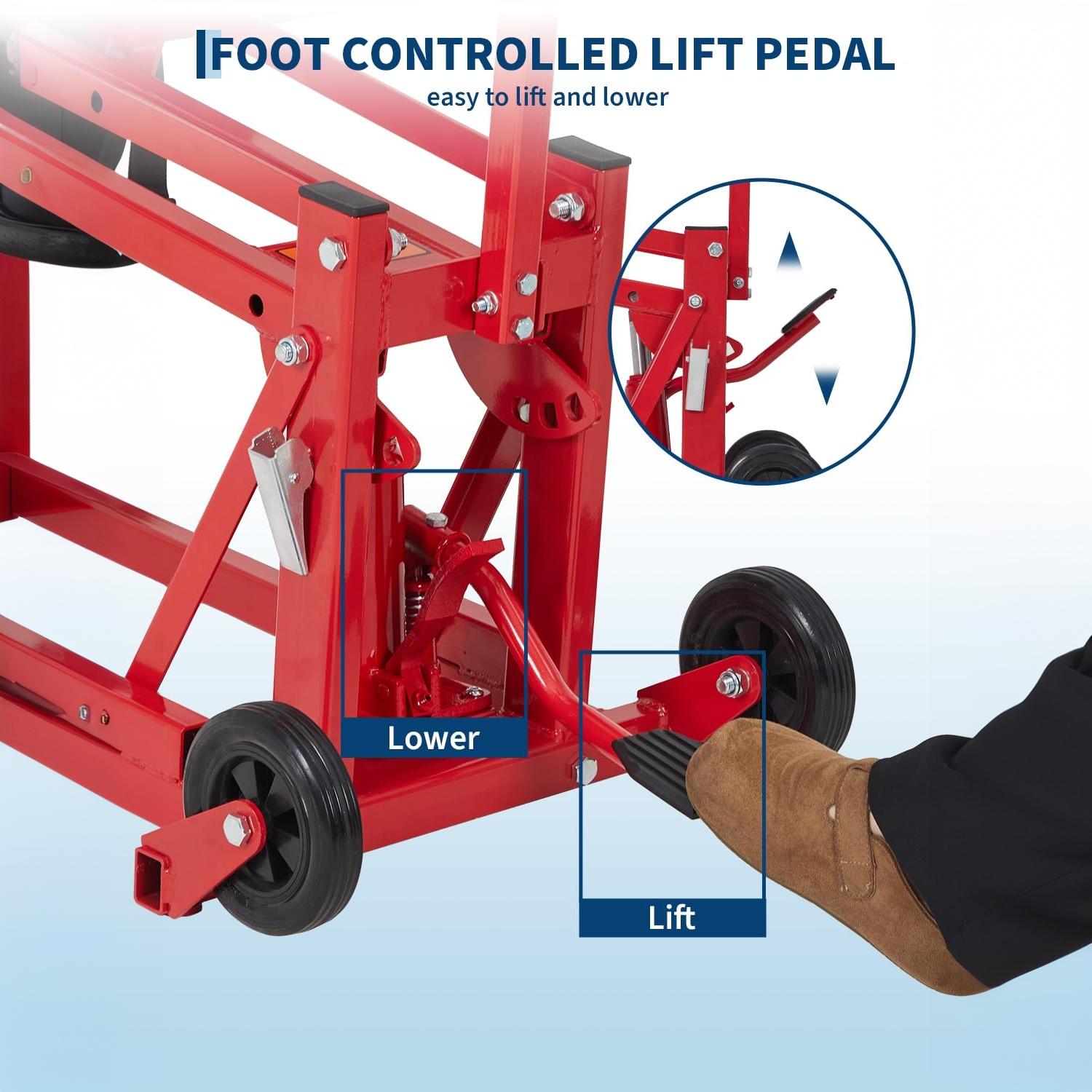

Press the hydraulic foot pedal to raise the lift. The hydraulic control allows gradual lowering after maintenance, helping you manage the return to floor level.

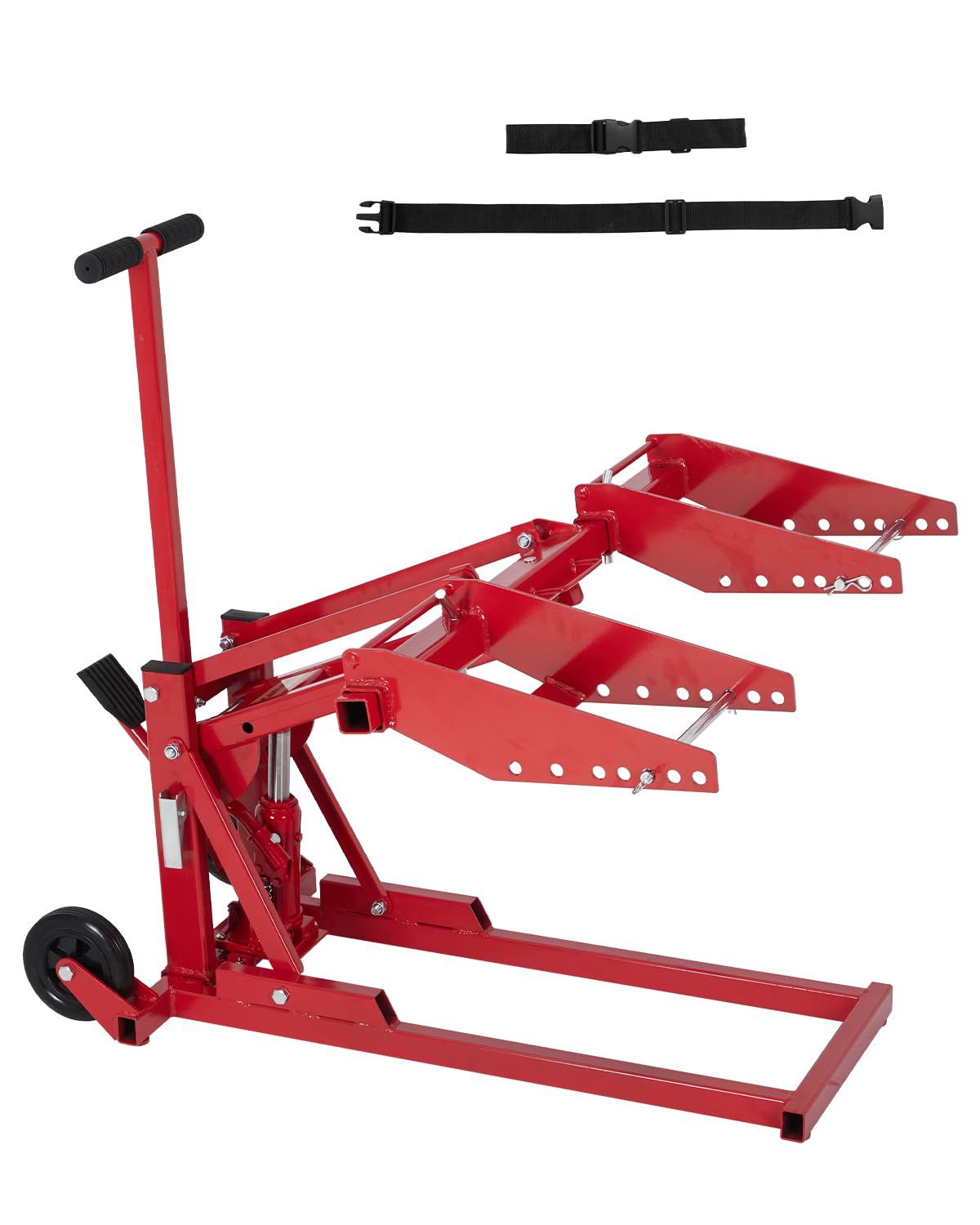

Locking pins and the safety lock help hold the setup in position. Secure the tires with the 2 included 39.37″ straps. After use, fold the unloaded frame for storage and use its wheels and handle to move it around the garage.
Keep blades, belts and the underside of the deck accessible with a lift that folds away between jobs. Hydraulic operation and adjustable supports make it a practical addition to a mower maintenance area.
