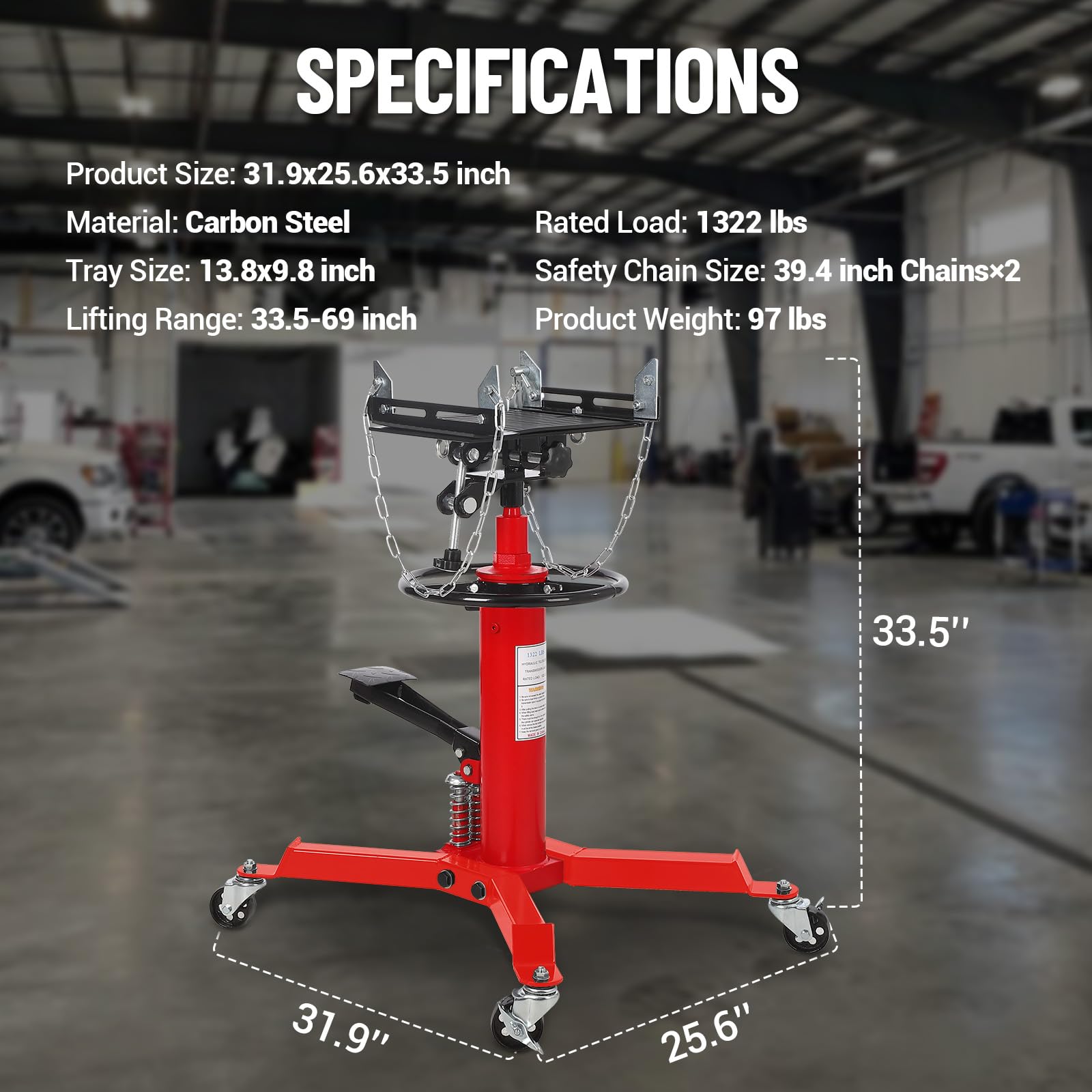

| Load Capacity | 1322 LB |
| Brand | GARVEE |
| Color | 1322 LBS / Red |
| Item dimensions L x W x H | 30.71 x 18.9 x 10.83 inches |
| Automotive Fit Type | Universal Fit |
| Model | Kkn6cn8M8uZ2CdXUxGDpPAeu |
| Item Weight | 98.3 pounds |

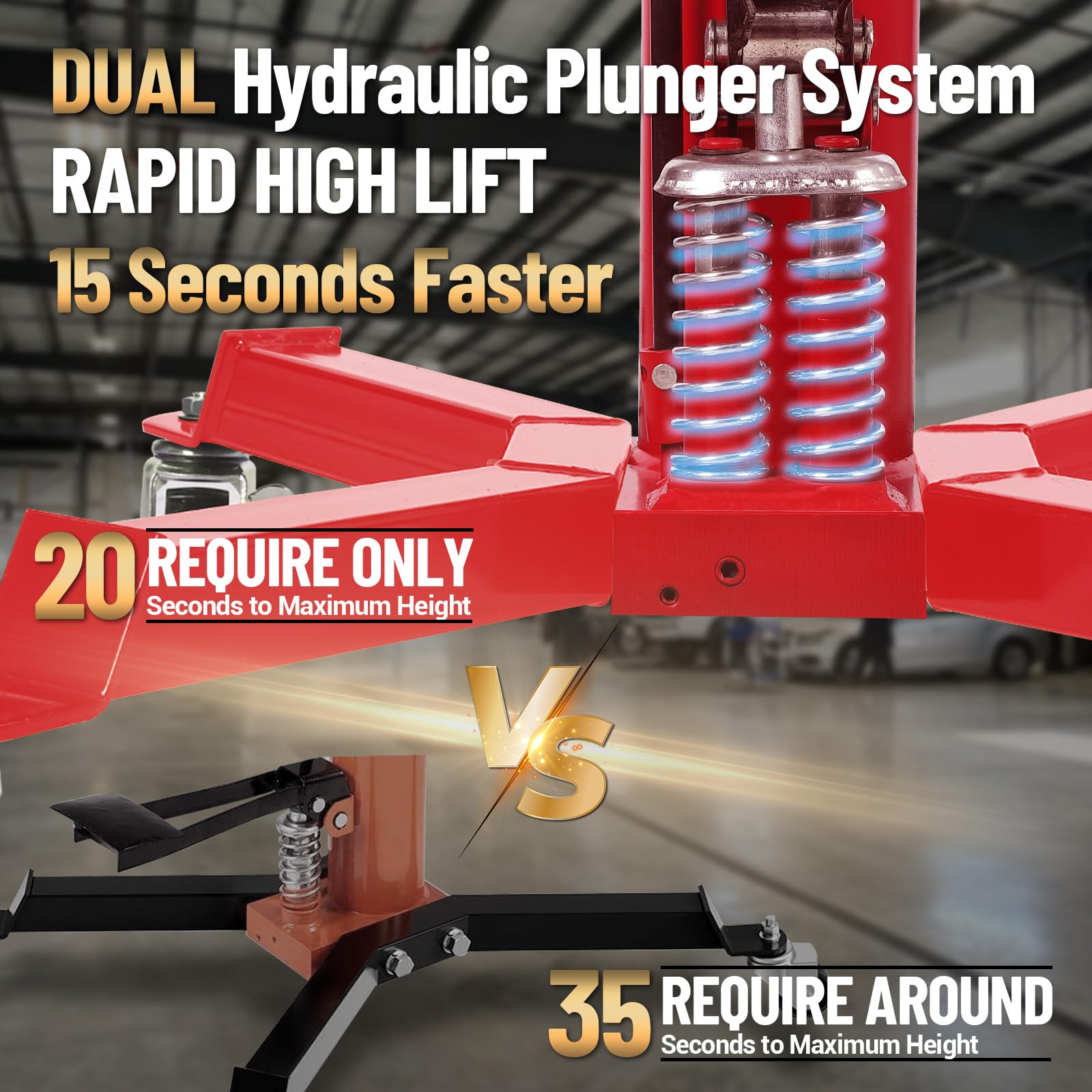

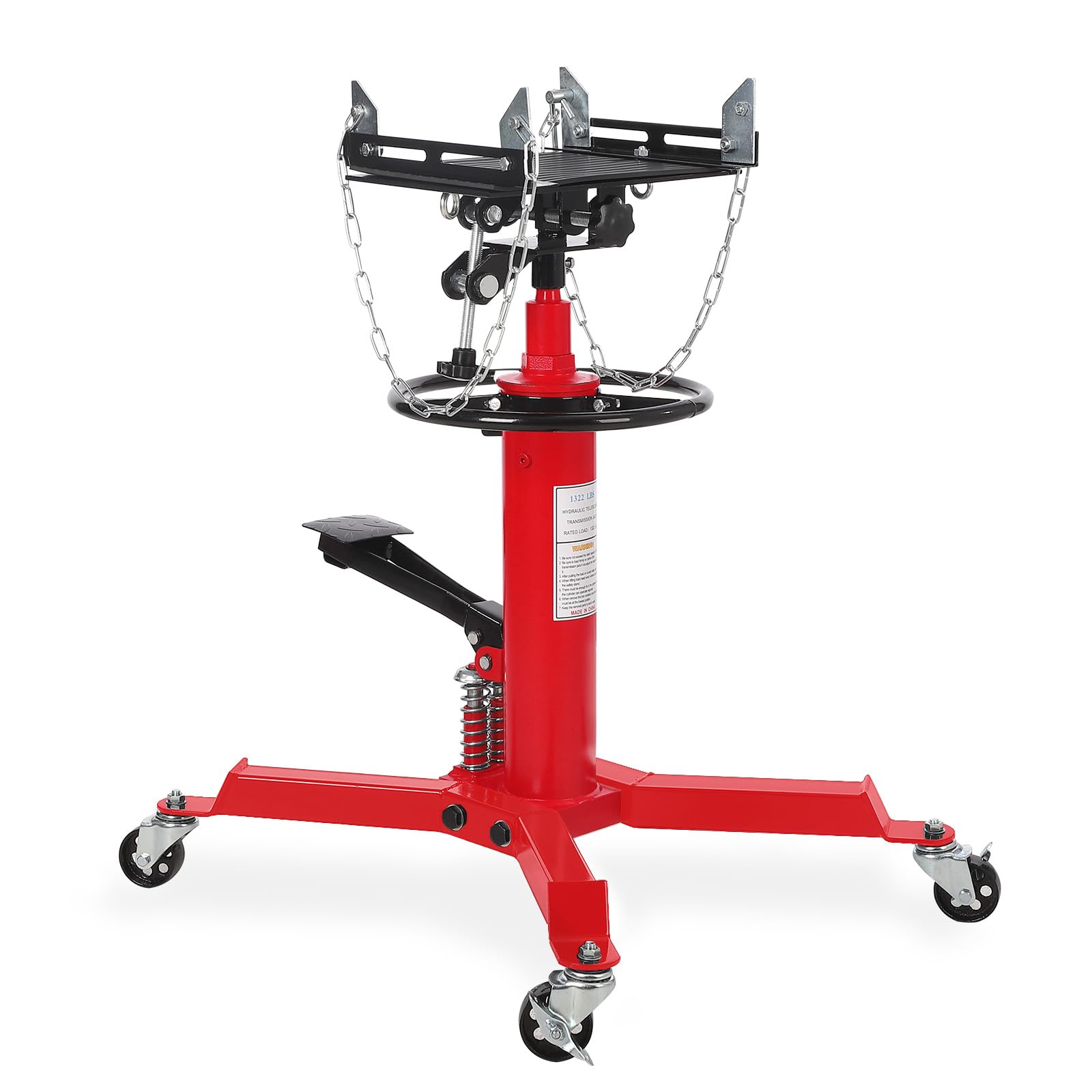

Designed for transmission removal, installation, and transport on lift-supported vehicles, this red hydraulic transmission jack pairs a 1322 lb capacity with a dual plunger system and telescoping height adjustment. Foot-pedal control, safety chains, a tilting tray, and brake-equipped swivel wheels help support efficient shop service.
Ready for removal, installation, and transport work

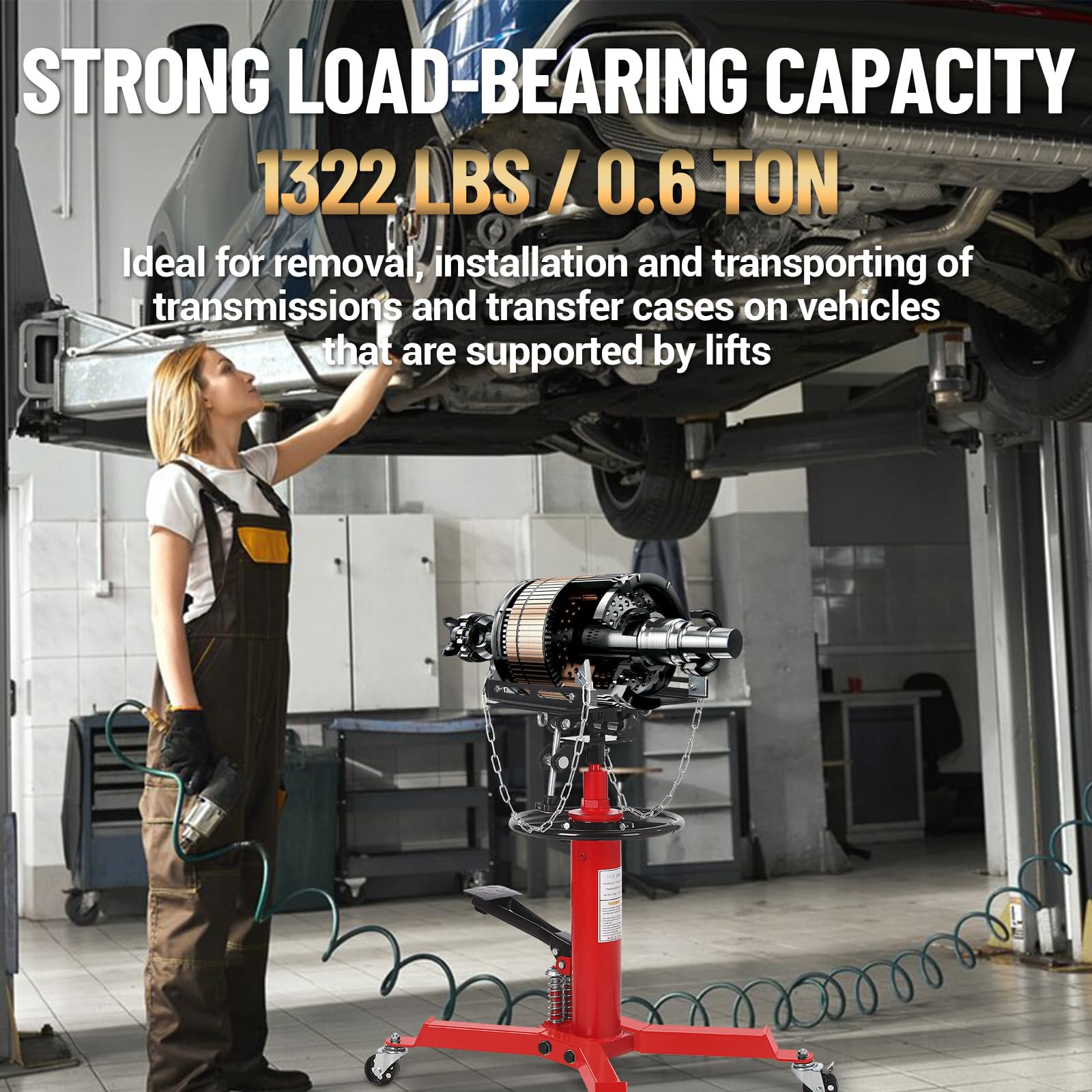

Rated for loads up to 1322 lb, the jack supports transmission and transfer case work on vehicles supported by lifts.
Set the tray height for different service positions

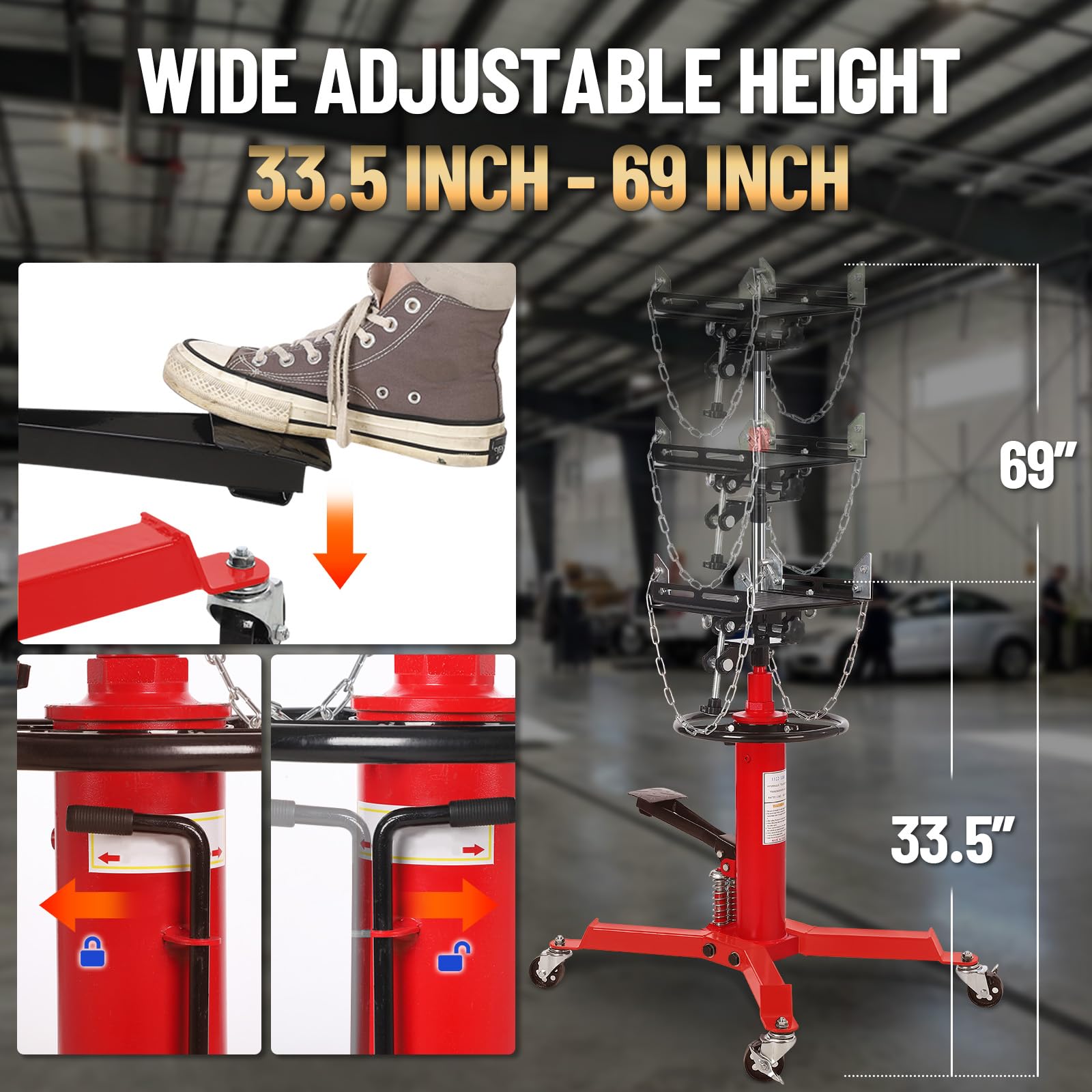

Two stage telescoping lift adjustment ranges from 33.5 in to 69 in, allowing the jack to meet varied vehicle and transmission heights.
Fine-tune the load position for careful alignment

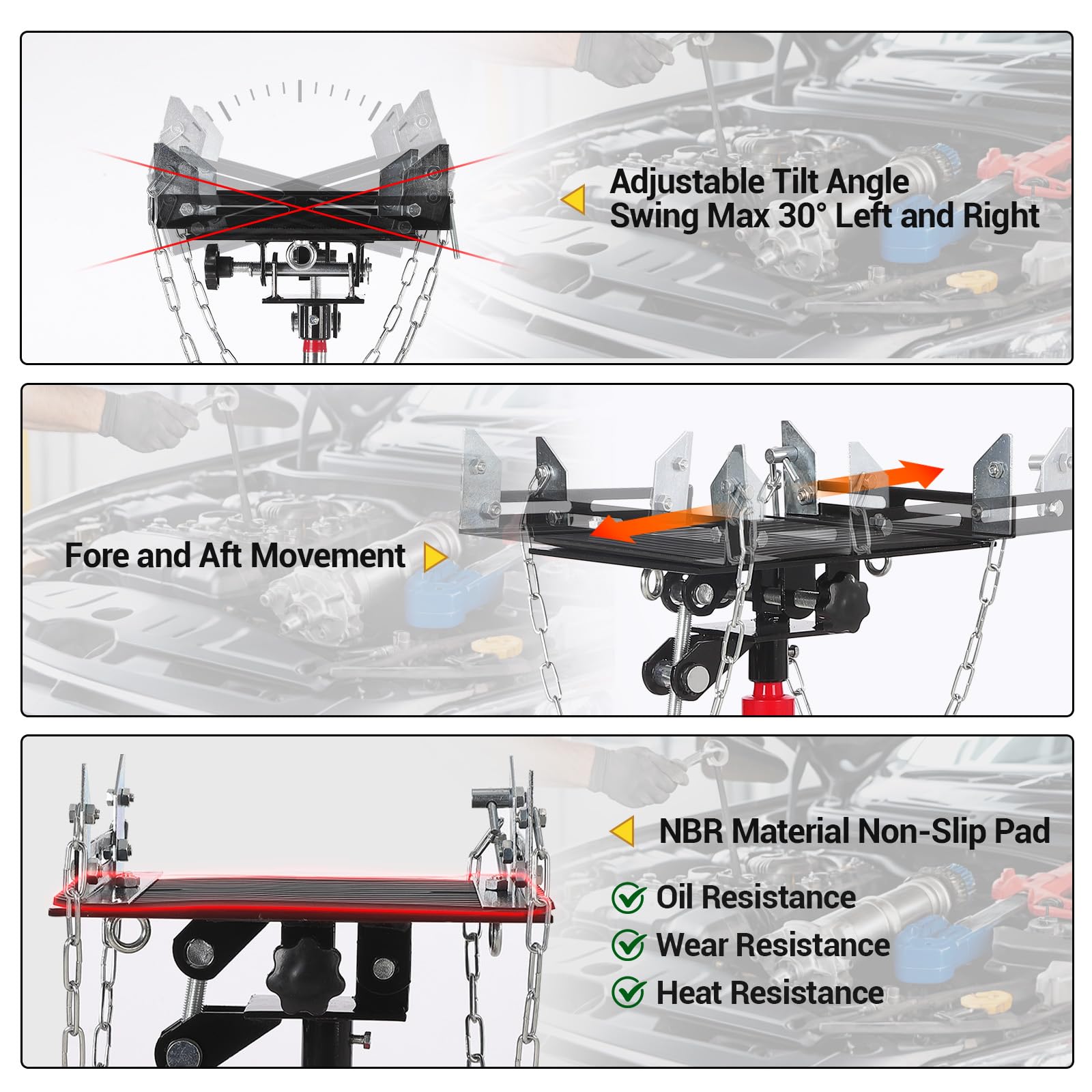

A 30° tilting tray, fore-aft movement, and NBR non-slip pad help position components while improving friction and surface protection.
Move and secure the jack where the job needs it

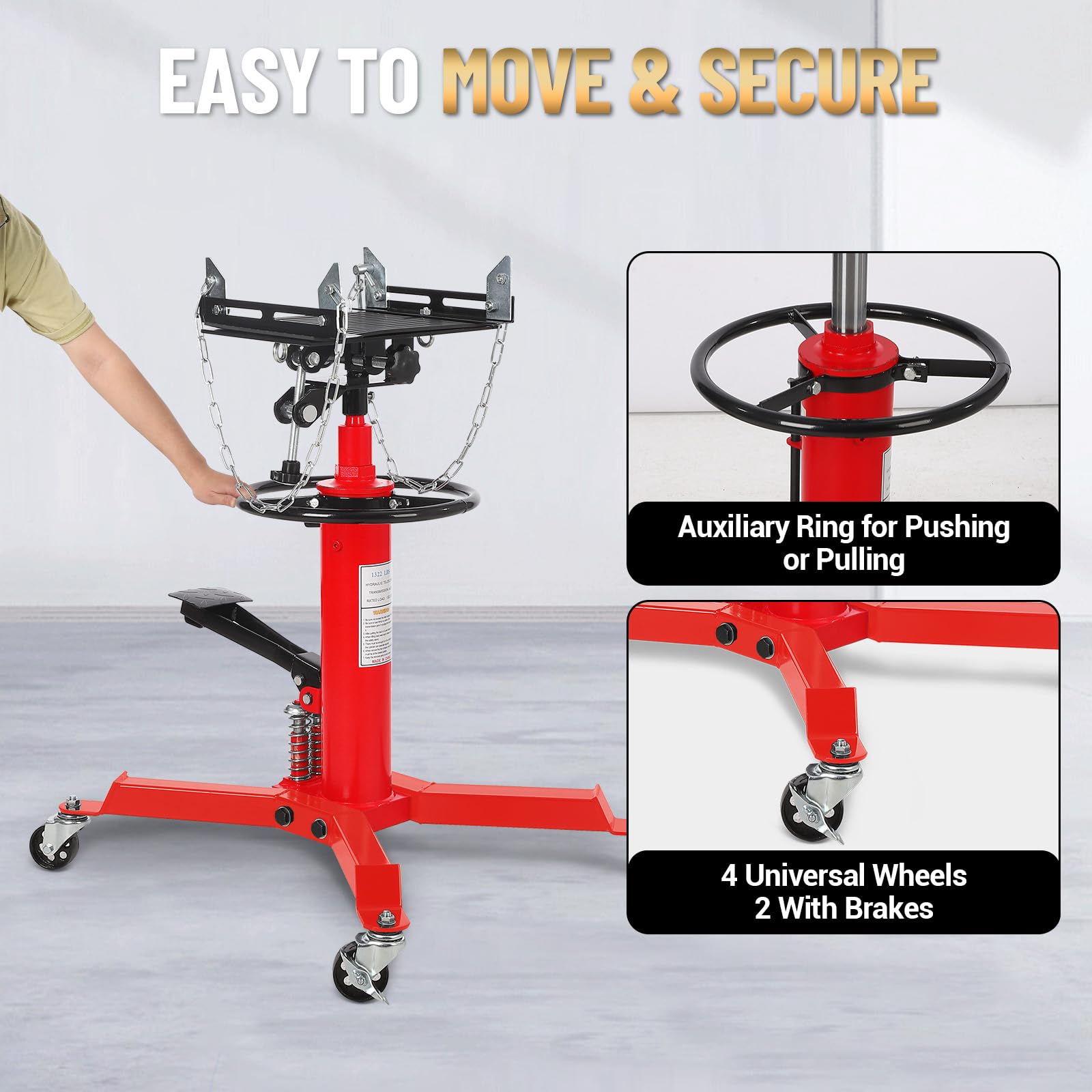

Four universal wheels, including two with brakes, and an auxiliary push-pull ring support movement and holding control around the shop.
| Load Capacity | 1322 LB |
|---|---|
| Brand | Garvee |
| Color | 1322 LBS / Red |
| Item dimensions L x W x H | 30.71 x 18.9 x 10.83 inches |
| Automotive Fit Type | Universal Fit |
| Model | Kkn6cn8M8uZ2CdXUxGDpPAeu |
| Item Weight | 98.3 pounds |
Upgrade garage service with a stable, adjustable transmission jack built to lift, position, and move heavy drivetrain components with greater control.
