| Specification | Product Details |
|---|---|
| Brand | GARVEE |
| Product Type | Hydraulic Lift Table |
| Maximum Load Capacity | 500 LBS |
| Lifting Height Range | 11 inches to 28.5 inches |
| Top Platform Size | 28 inches L × 18 inches W |
| Base Frame Dimensions | 29.5 inches L × 16 inches W |
| Material | Heavy-Duty Steel |
| Wheel Type | Locking Wheels |
| Application | Material Handling, Garage, Workshop & Warehouse |
| Package Dimensions | 31.50 × 20.28 × 12.40 inches |
| Item Weight | 92.57 pounds |

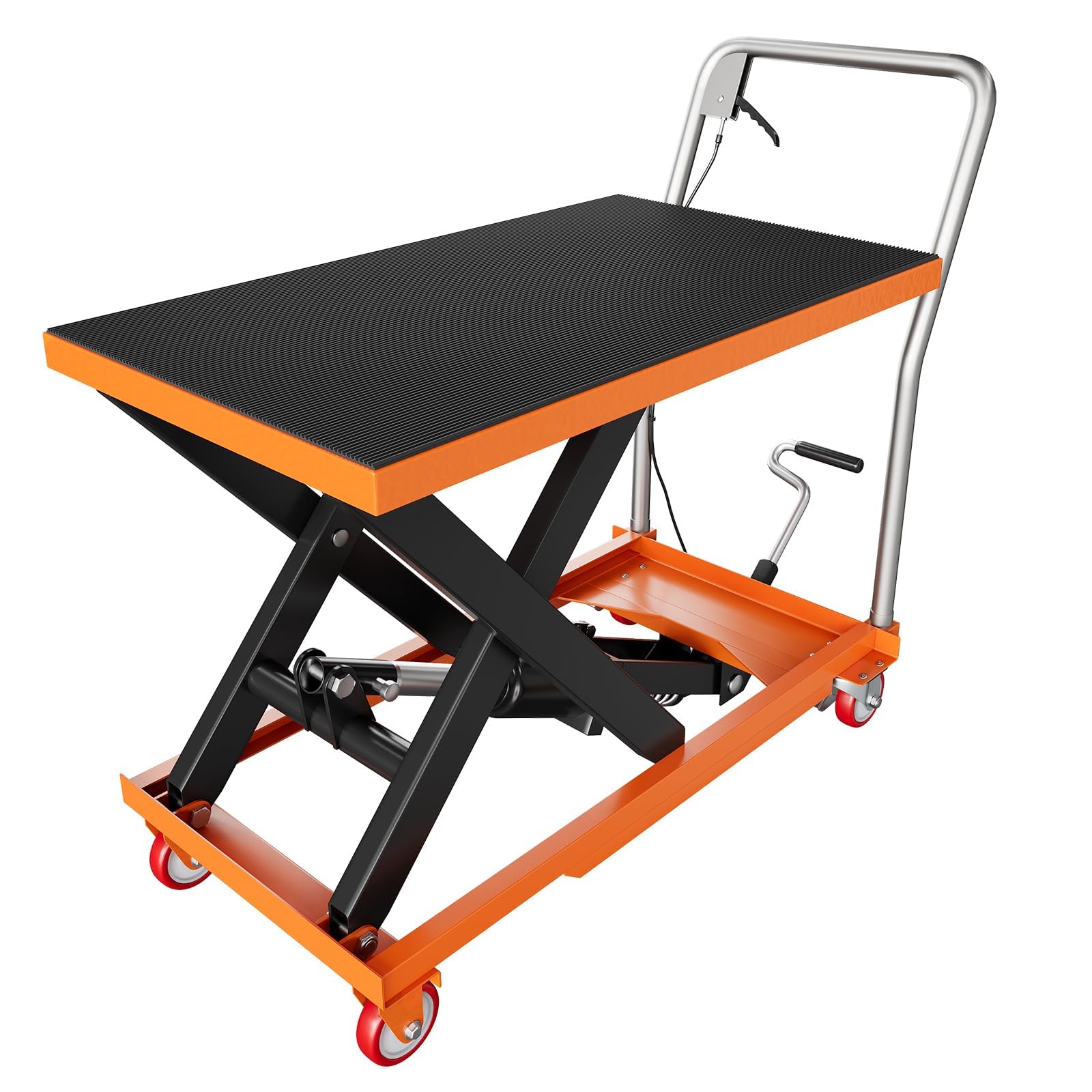

A manual hydraulic lift table for raising, positioning, and moving suitable loads around workshops, garages, warehouses, and other material-handling areas.

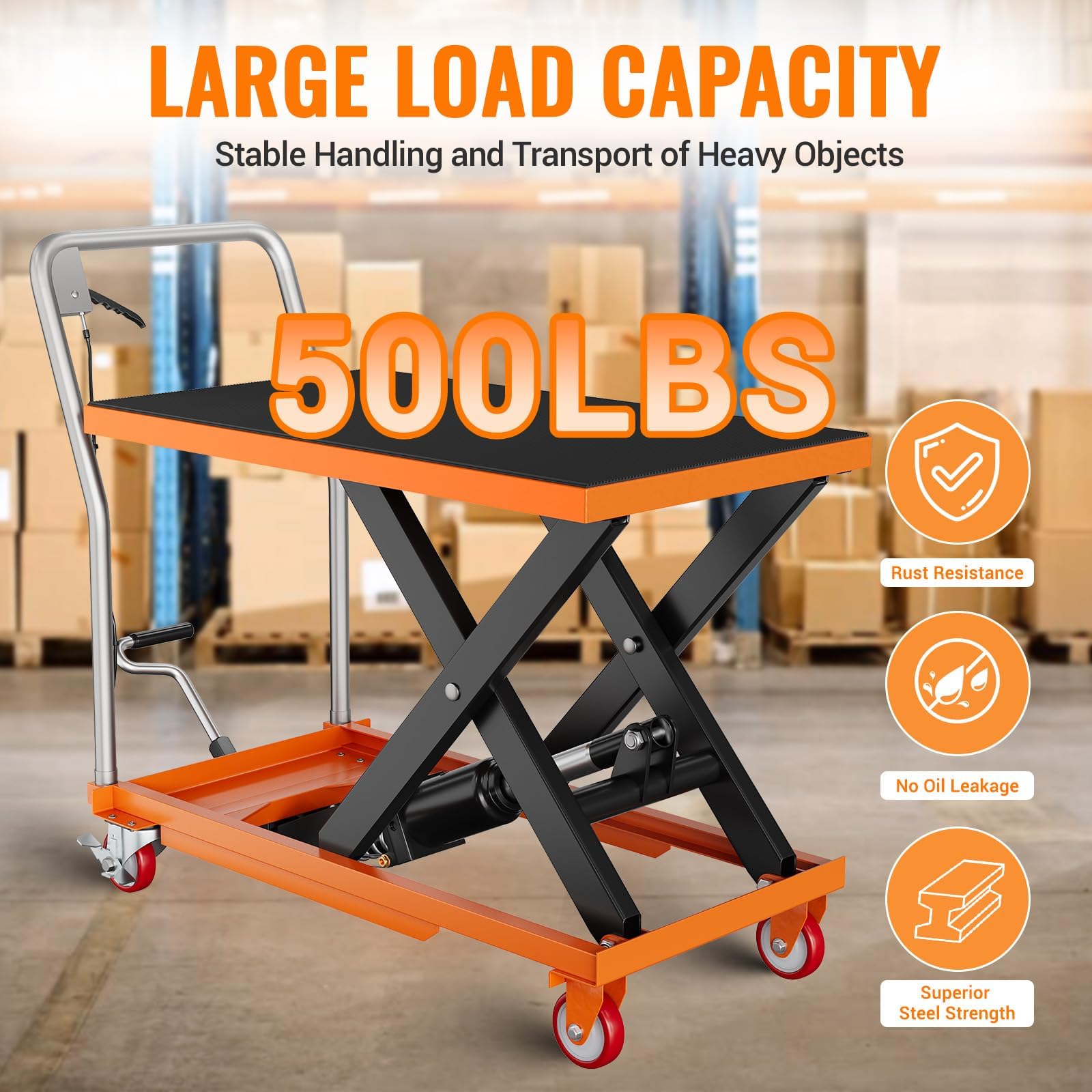

Supports suitable loads weighing up to 500 lb.
Raises the platform to different working positions.
Two rear caster brakes help hold the cart in place.
A mobile hydraulic platform designed for everyday material-handling tasks.

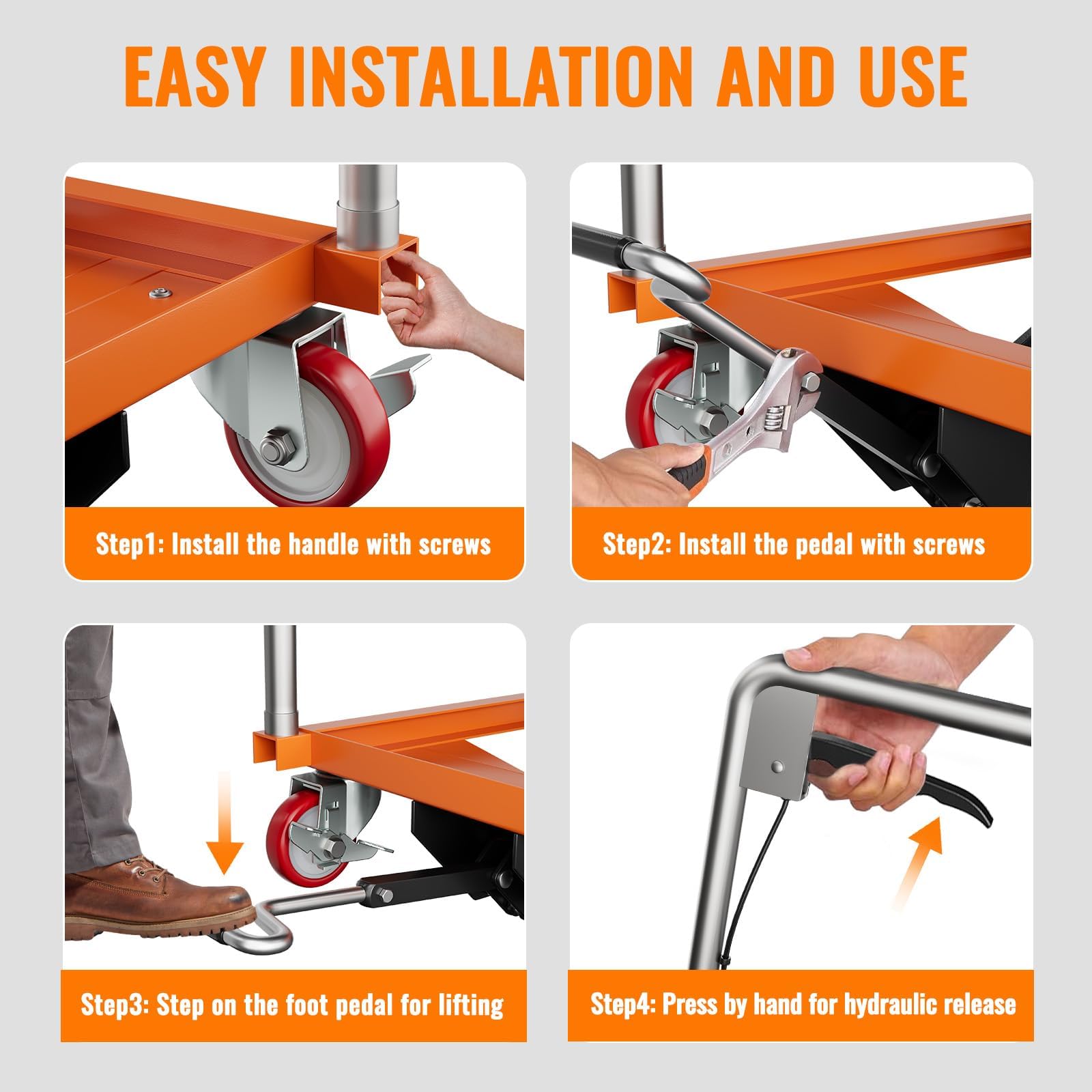

Use the extended pedal to raise the platform. The quick-release handle provides controlled lowering and height adjustment.

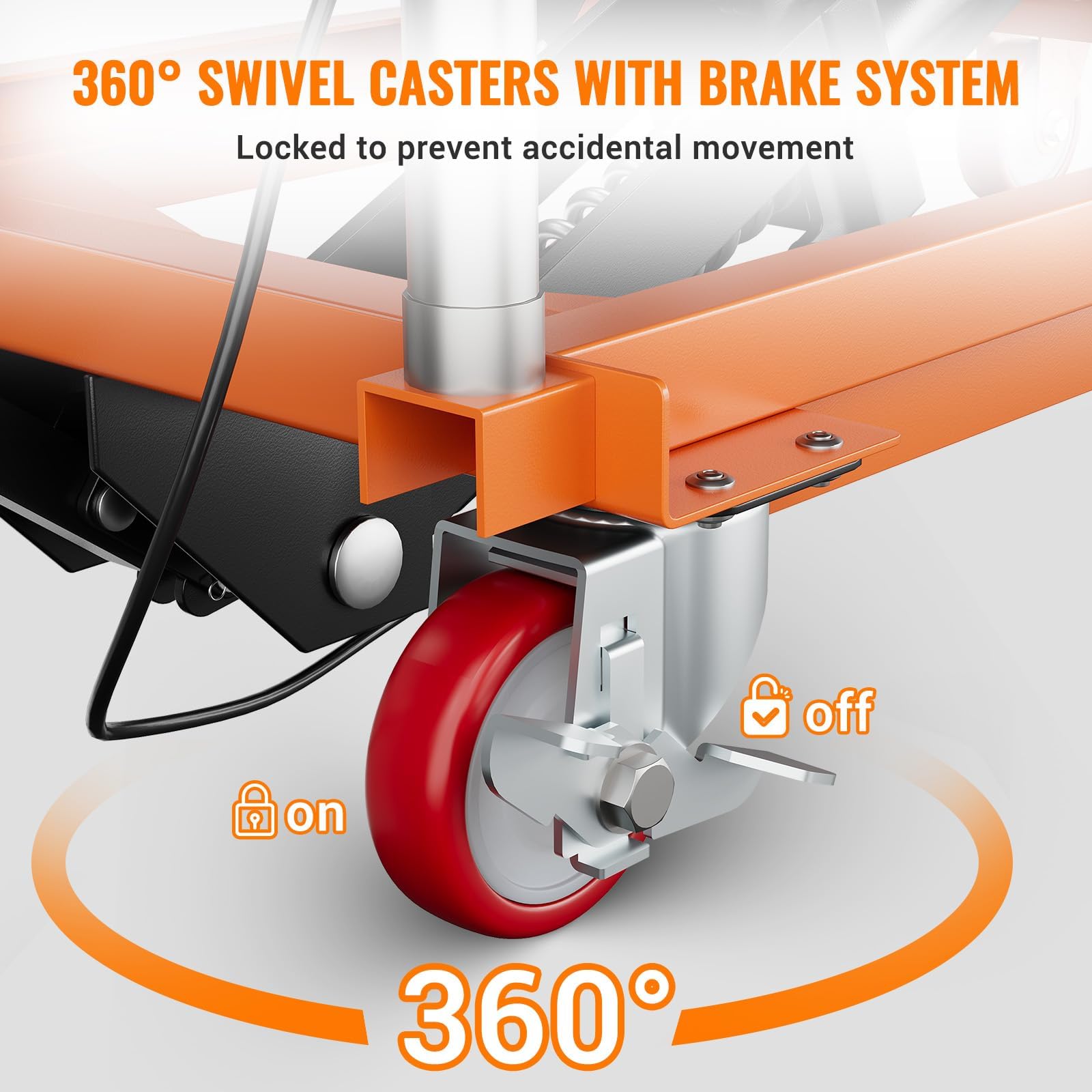

Swivel casters support movement around suitable work areas, while the two rear brake locks help keep the cart stationary when needed.


| Product Type | Manual Hydraulic Lift Table Cart |
|---|---|
| Maximum Load Capacity | 500 lb |
| Maximum Lift Height | 28.5 inches |

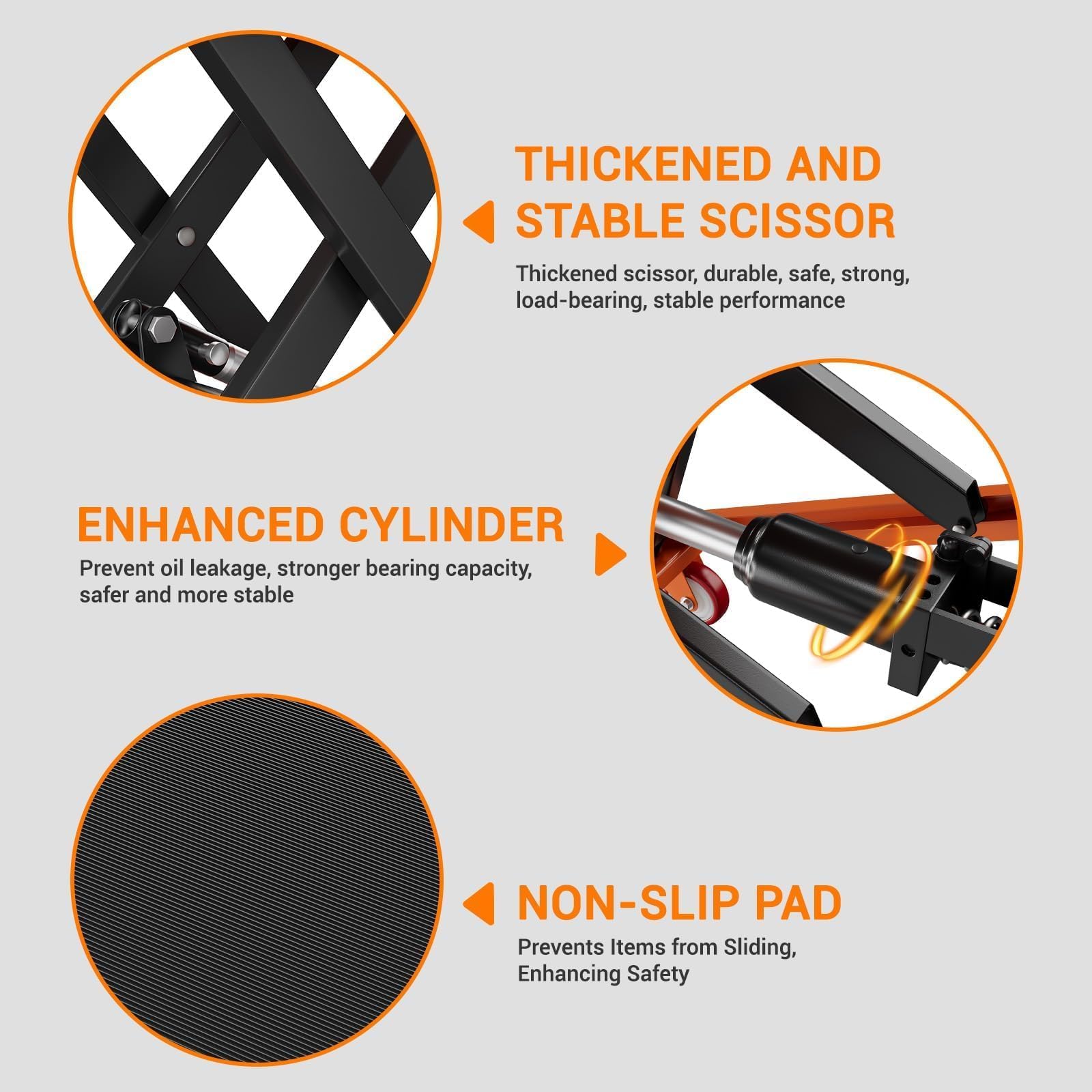

| Scissor Structure | Single Scissor |
| Operation | Manual hydraulic foot-pedal lift |
| Product Dimensions | 27.72 × 17.64 × 29.96 inches |
| Item Weight | 92.57 pounds |
| Caster Brakes | Two rear casters with mechanical brake locks |
