Garvee G80 4-Leg Lifting Chain webbing strap - Adjustable Grab & Shortening Hooks - 0.3125 in x 10 ft - 11,000 lb WLL for Crane/Engine Hoist - Color: 4-leg 0.3125 inch 10 feet 11000 lbs

Name: Garvee G80 4-Leg Lifting Chain webbing strap - Adjustable Grab & Shortening Hooks - 0.3125 in x 10 ft - 11,000 lb WLL for Crane/Engine Hoist - Color: 4-leg 0.3125 inch 10 feet 11000 lbs
Brand: Garvee
SKU: PLS_33ETD5HP
Price: 143.99 CAD
Availability: InStock

C$143.99

C$143.99 ~~C$169.99~~

- 15%

Size ：5/16 X 10Ft

5/16 X 10Ft

3/8 X 10Ft

In Stock. Shipping From Canada

Est. Delivery Time:

30 Day No- Hassle Returns

12-Month Warranty

Rigging Specification	Official Engineering Details
Brand Name	Garvee
Product Classification	4-Leg Industrial Bridle Chain Lifting Sling
Working Load Limit (WLL)	11,000 lbs (5 Tons Rated Capacity Class)
Chain Length Per Leg	10 Feet (120 inches active reach)
Chain Structural Diameter	5/16 inch (0.3125 inch / 8 mm structural size)
Chain Material Grade	G80 Manganese Alloy Steel
Master Oblong Link Dimensions	7-7/128" Int. Length x 3-35/64" Int. Width x 0-29/32" Thickness
Connecting Link Dimensions	2-7/16" Length x 0-25/32" Top Width x 0-31/32" Base Width
Shortening Grab Hook Dimensions	1-19/32" Height x 1-14/32" Eye Width x 0-11/32" Chain Slot Throat
Clevis Sling Hook Dimensions	4-14/32" Total Height x 1-15/32" Latched Throat Clearance
Hardware Material Treatment	Drop-Forged Alloy Steel with High-Visibility Corrosion Armor
Welding Engineering Profile	Advanced Full-Automatic Anti-Fatigue Fusion Welding
Hook Safety Latches	Heavy-Duty Spring-Loaded Lock Latches Installed
Tool Assembly Net Weight	47.6 pounds

Total Price

C$143.99

Garvee G80 4-Leg Lifting Chain webbing strap - Adjustable Grab & Shortening Hooks - 0.3125 in x 10 ft - 11,000 lb WLL for Crane/Engine Hoist - Color: 4-leg 0.3125 inch 10 feet 11000 lbs

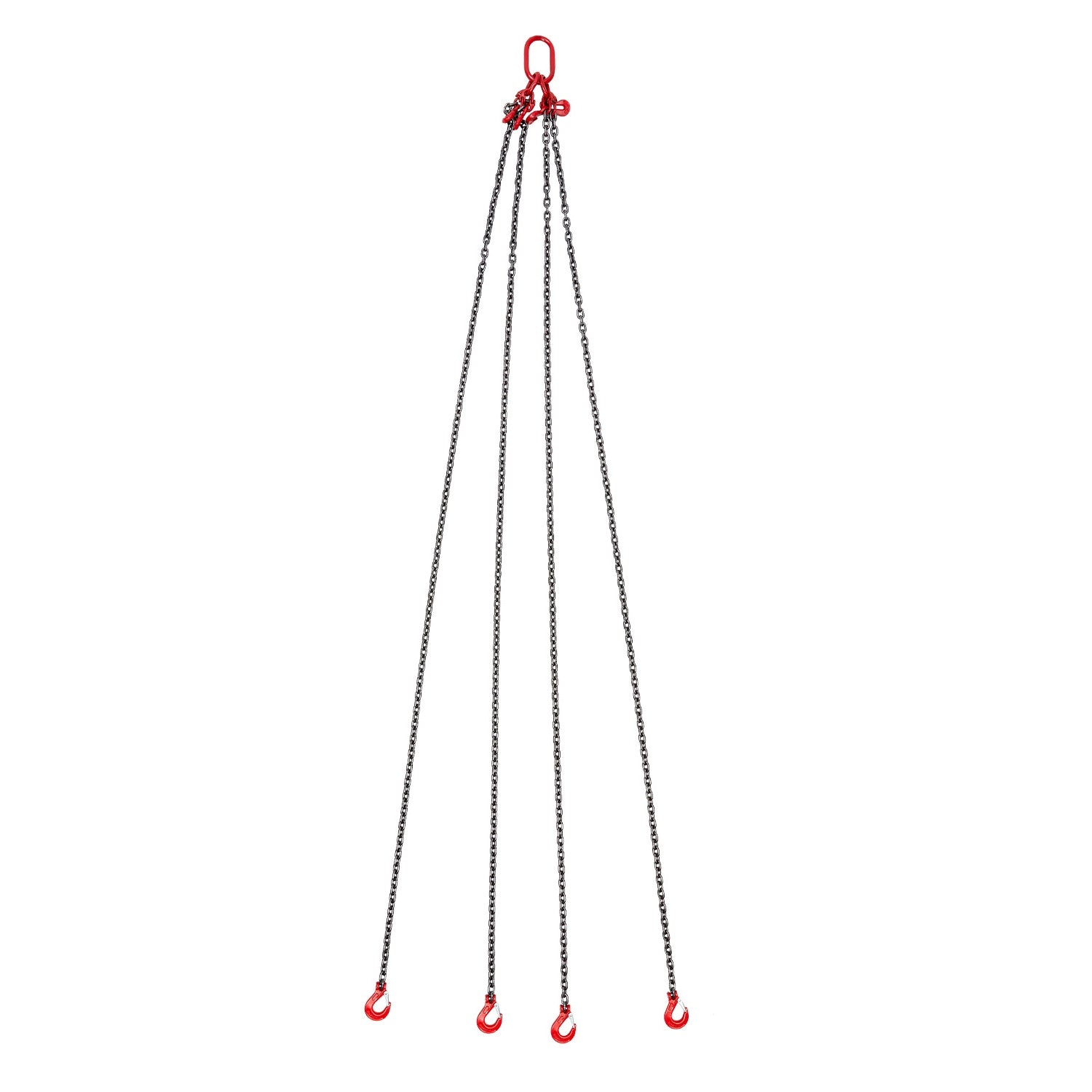

G80 4-Leg Adjustable Lifting Chain

5/16-inch Grade 80 manganese-steel four-leg lifting assembly with a 10-foot chain length, 11,000 lbs working load limit, independent shortening adjusters and forged lifting hardware.

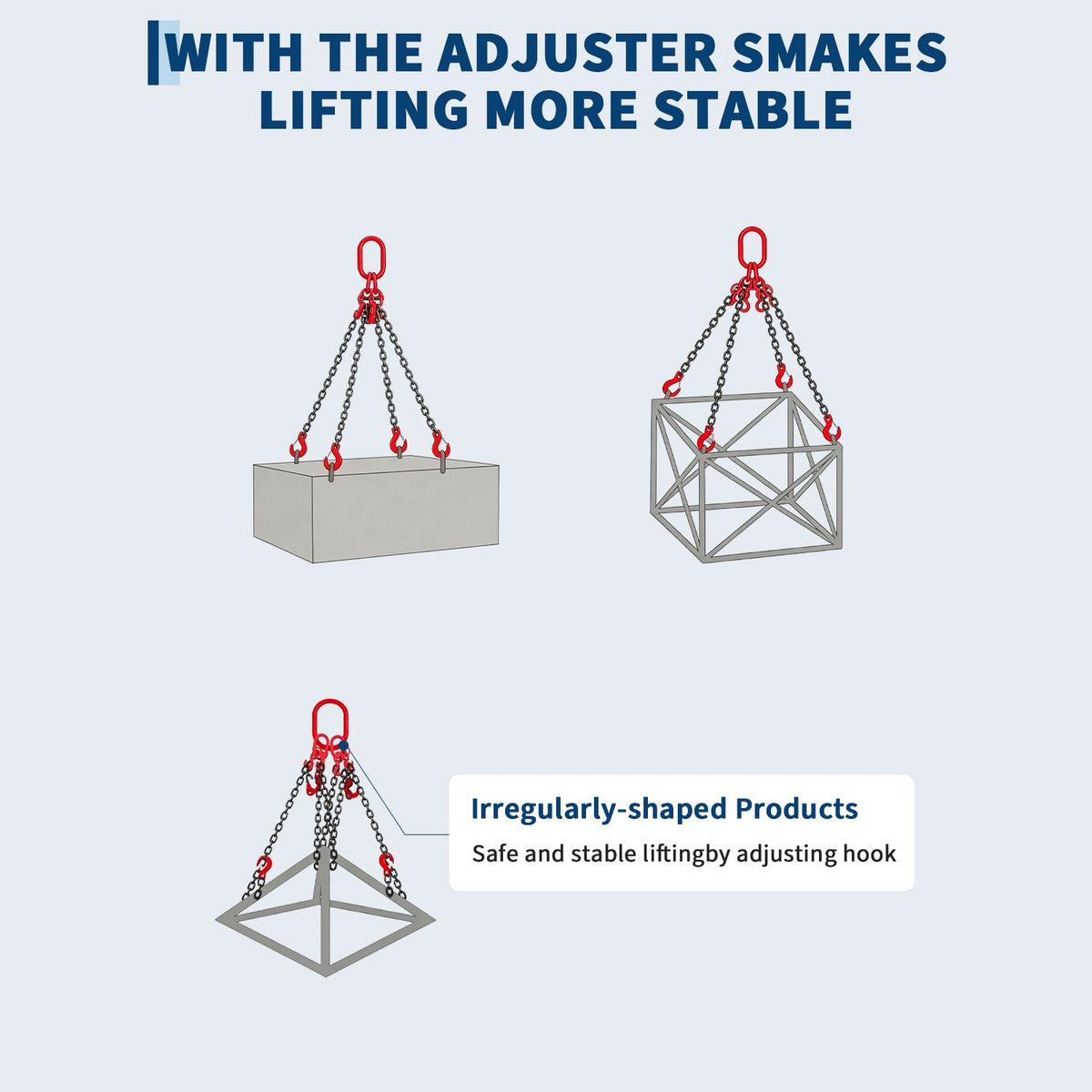

GARVEE adjustable four leg lifting chain for irregular loads

Adjustable Four-Point Lifting

Level Different Load Shapes

Four shortening adjusters allow the length of each chain leg to be set independently.

The product illustration shows the adjustable arrangement used around rectangular, framed and irregularly shaped loads with different attachment-point positions.

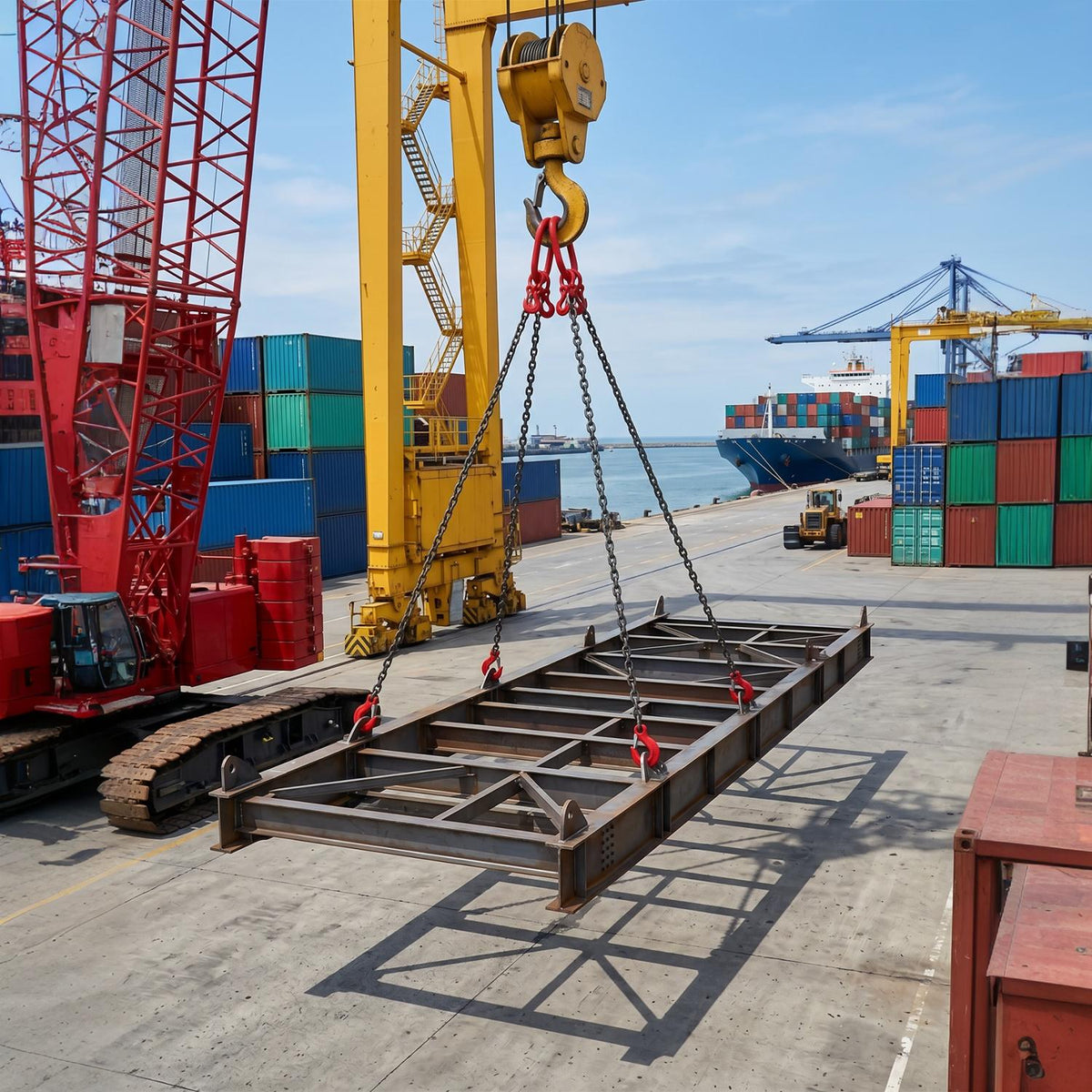

GARVEE four leg lifting chain lifting steel frame

Multi-Point Industrial Rigging

Four Connection Points for Large Loads

The four-leg configuration connects a central lifting point to four separate positions around the load.

This arrangement is designed for crane and hoist rigging where a load provides multiple suitable lifting points.

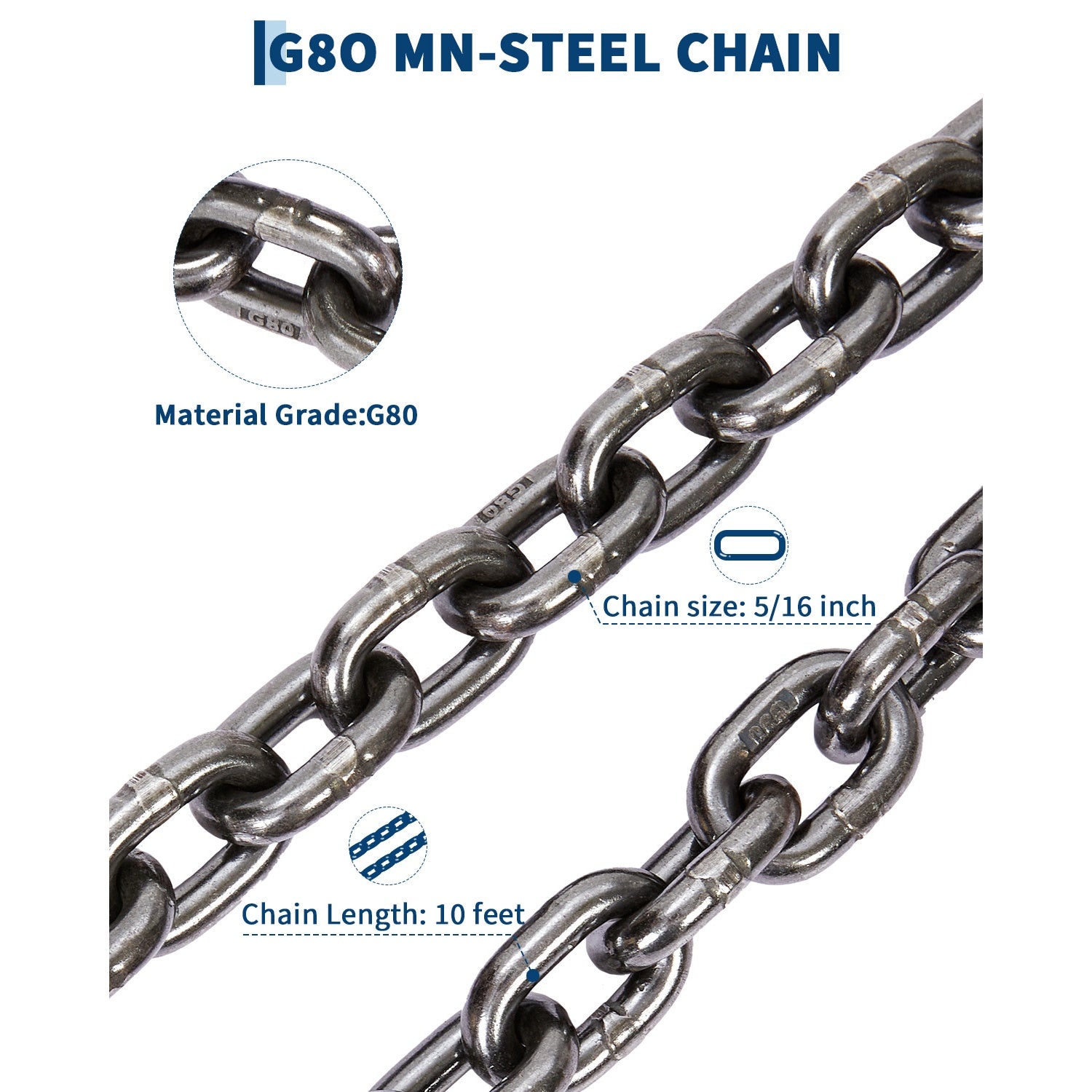

GARVEE G80 5/16 inch manganese steel chain

5/16" G80 Mn-Steel Chain

Grade 80 Chain Construction

The selected version uses 5/16-inch Grade 80 manganese-steel chain.

The chain detail image confirms a 10-foot chain length for this configuration.

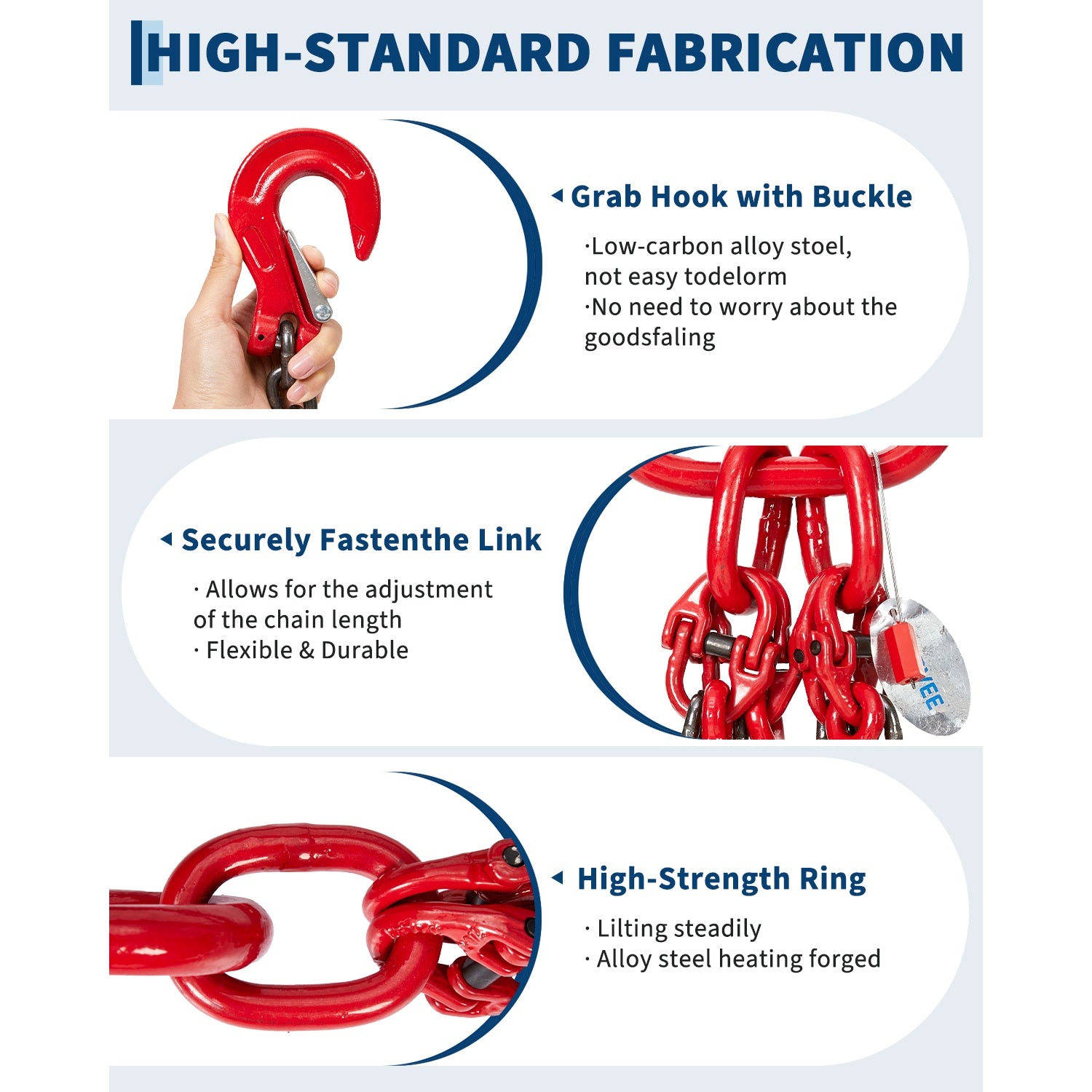

GARVEE lifting chain hooks adjusters and master link

Forged Rigging Components

Hooks, Adjusters & Master Ring

The four chain legs connect through adjustable hardware to a high-strength master ring.

Forged alloy steel hooks include retaining latches, while shortening hardware allows individual leg adjustment.

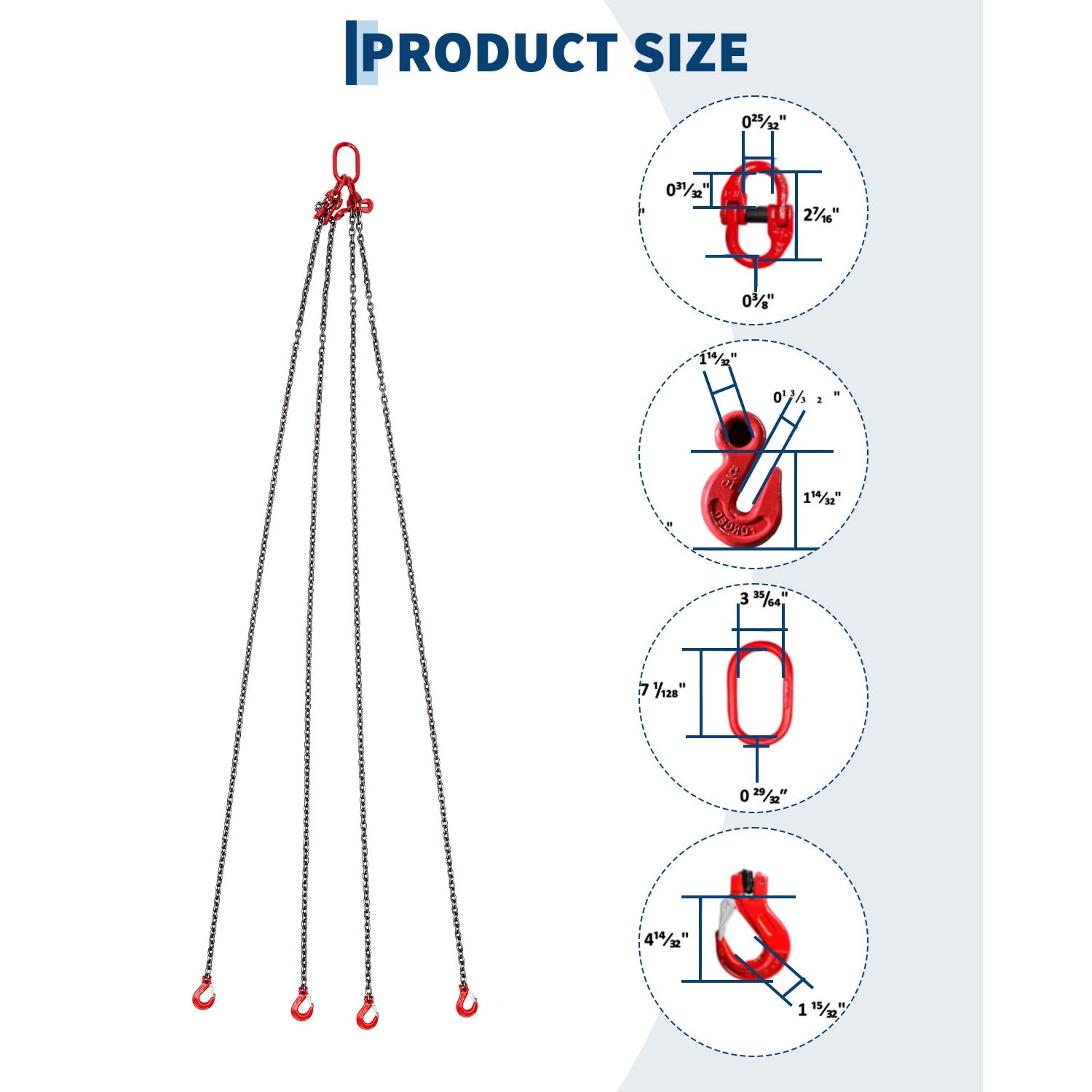

GARVEE 5/16 inch four leg lifting chain component dimensions

Four-Leg Component Dimensions

Complete Four-Leg Assembly

The product-size graphic shows four full-length chain legs extending from the central master assembly.

Detailed measurements are also provided for the master ring, upper connectors and lower lifting hooks.

Key Features

11,000 lbs WLL

The selected 5/16" × 10 ft configuration is listed with an 11,000 lbs working load limit.

4 Adjustable Legs

Four shortening adjusters allow individual chain-leg lengths to be set for different lifting-point layouts.

5/16" G80 Mn-Steel Chain

Grade 80 manganese-steel chain is designed for industrial lifting and material-handling applications.

Forged Lifting Hardware

Alloy steel hooks with retaining latches and a central master assembly complete the four-point rigging system.

Specifications

Brand

GARVEE

Product Name

G80 4-Leg Adjustable Lifting Chain

Model

PLS_33ETD5HP

Chain Size

5/16" (0.3125")

Chain Length

10 ft

Item Weight

47.62 pounds

Working Load Limit

11,000 lbs

Chain Grade

Grade 80 (G80)

Chain Material

Manganese Steel

Configuration

4 Adjustable Legs with Hooks & Shortening Adjusters

Notes

This GARVEE G80 lifting chain is the selected 5/16" × 10 ft four-leg configuration with a listed 11,000 lbs working load limit. It uses Grade 80 manganese-steel chain, four independently adjustable legs, forged alloy steel lifting hardware and a central master ring. During use, keep the chain straight, seat each connection in the center of the hook saddle and do not lift with twisted, inverted or tangled chain legs.

Why Garvee?

100M+

Customers worldwide

230K+

Positive reviews

10+

Years of brand expertise

30-Day Return Policy

Dedicated Support

12-Month Warranty

Shipping from Canada

Reviews

Never knew I needed one until I had it

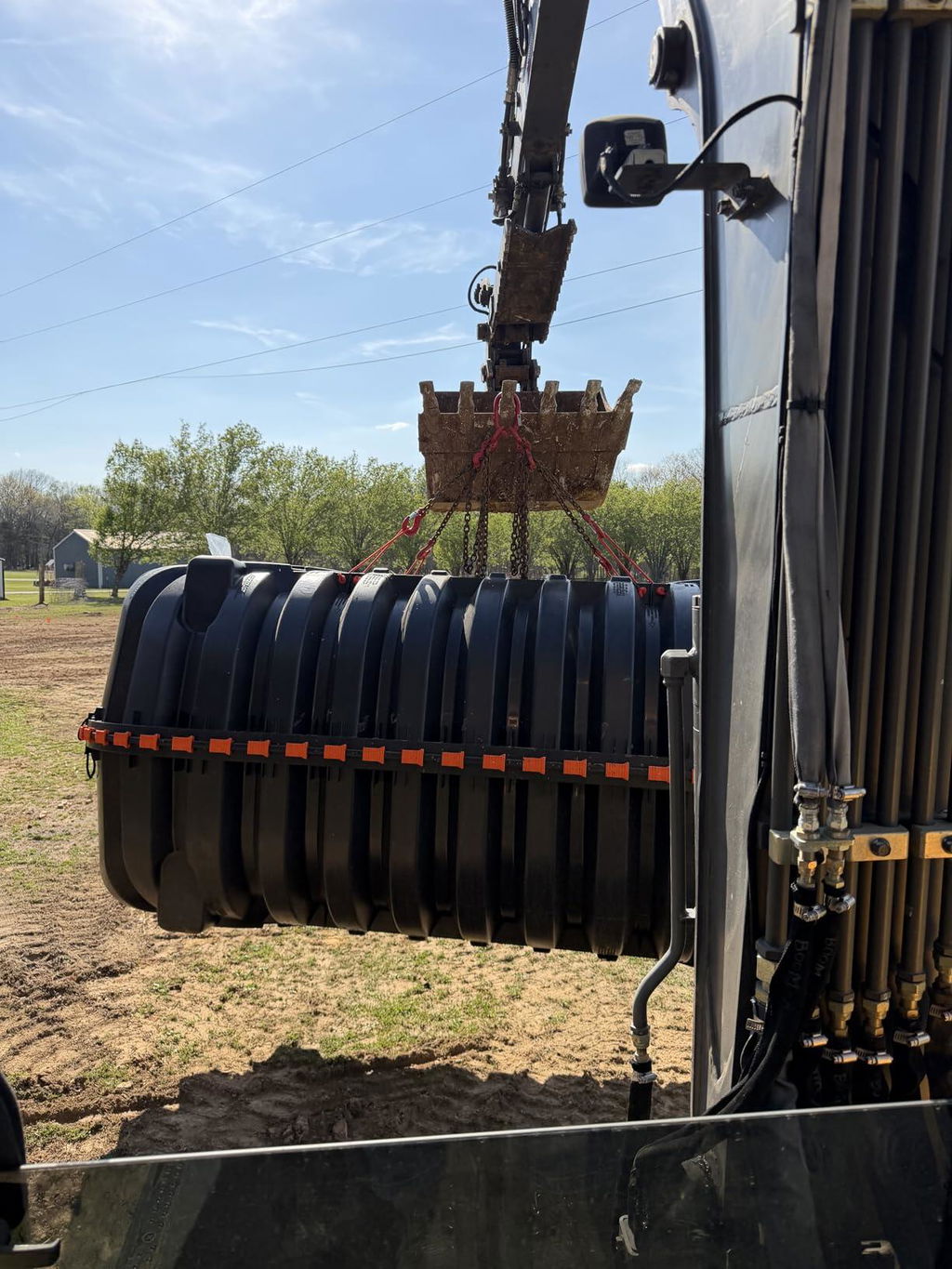

Very heavy duty and well built. Priced right. Works perfectly in conjunction with my excavator. Makes setting septic tanks a breeze. The additional clevis grab hooks at the top make taking slack out of the chain easy. Allowing you to perfectly choke up whatever you’re lifting.

Heavy duty and dependable

Well-made chain sling. The hardware feels industrial grade and holds up to tough everyday shop use.

Well built G80 lifting legs

Clear tag with weight specs and sturdy steel finish. Zero complaints on safety or build.

Solid grade 80 steel

Excellent quality alloy steel legs. Hooks latch securely and feel safe for shop rigging.

Fast load balancing

Adjusting the length on each leg takes seconds. Makes lifting tilted frames effortless.

Handles heavy loads easily

Lifted big steel beams with this setup. The grade 80 rating gives great peace of mind.

Good quality rigging chain

Hooks click in tight and chain links show clean welds. Very trustworthy for heavy lifts.

Great value for G80 chains

Excellent price for a reliable 4 leg adjustable sling. Arrived fast and heavy-duty packaged.

Heavy duty lifting chain

The G80 chain setup is built solid. Lifted a heavy engine block with zero flex or worry.

Easy setup for uneven items

The shortening hooks work great when lifting loads with off-center balance points.
