Garvee FL-118 Core Alignment Fiber Optic Fusion Splicer, 6 Motors, 7s Splicing, 12s Heating, FTTH

C$888.99

C$888.99 ~~C$1,099.99~~

- 19%

Color: Black

Garvee FL-118 Core Alignment Fiber Optic Fusion Splicer, 6 Motors, 7s Splicing, 12s Heating, FTTH

In Stock. Shipping From Canada

Est. Delivery Time:

30 Day No- Hassle Returns

12-Month Warranty

Total Price

C$888.99

Garvee FL-118 Core Alignment Fiber Optic Fusion Splicer, 6 Motors, 7s Splicing, 12s Heating, FTTH

Industrial-Grade Precision Splicing

FL-118 Master Series. Featuring 6-motor core alignment technology and a lightning-fast 7s splicing cycle. Engineered for the demands of modern FTTH and telecommunication networks.

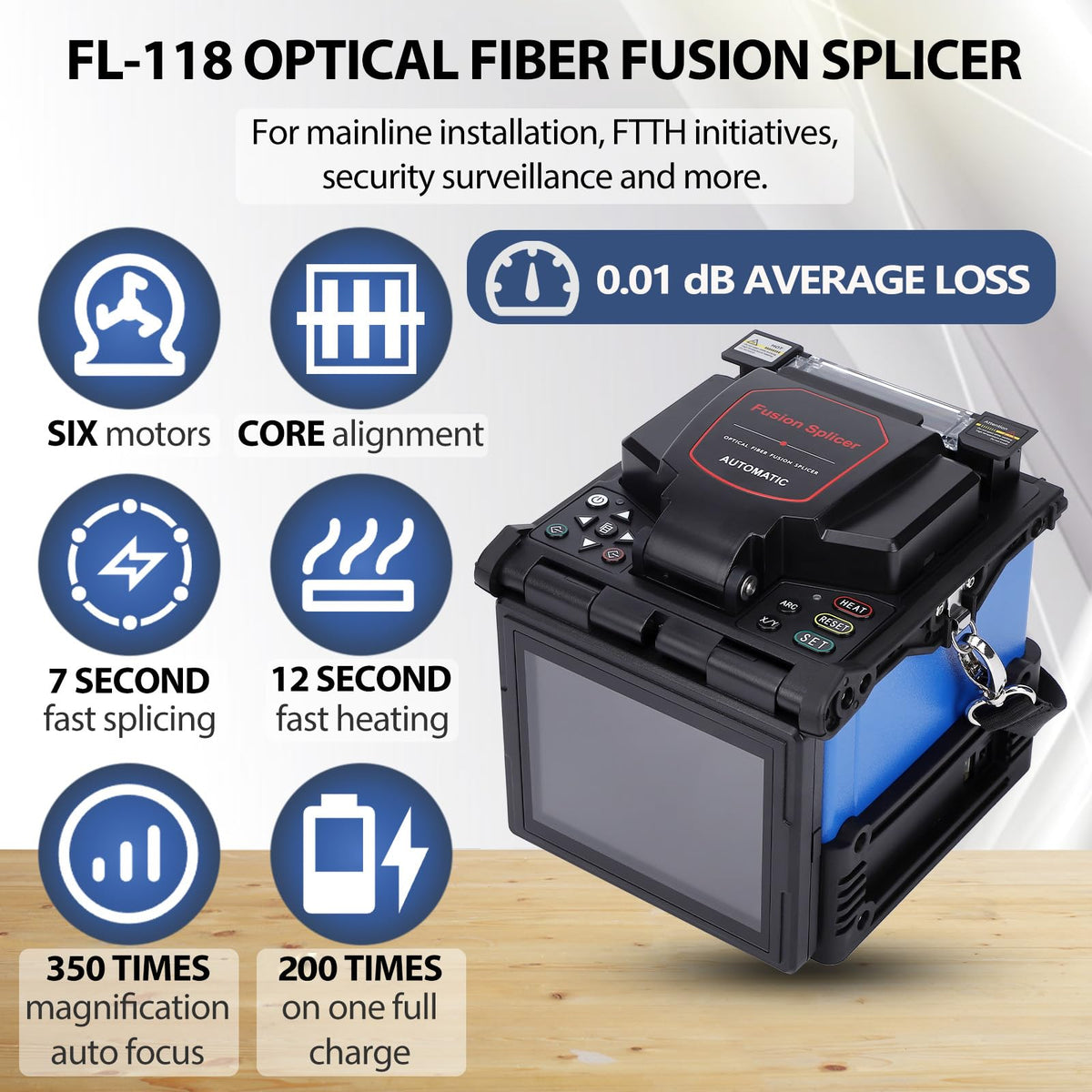

6-Motor Alignment

Precise core-to-core technology ensuring sub-0.02dB loss for high-performance signal integrity.

Rapid Operation

Industry-leading 7-second splicing and 12-second fast heating. Maximize your on-site field efficiency.

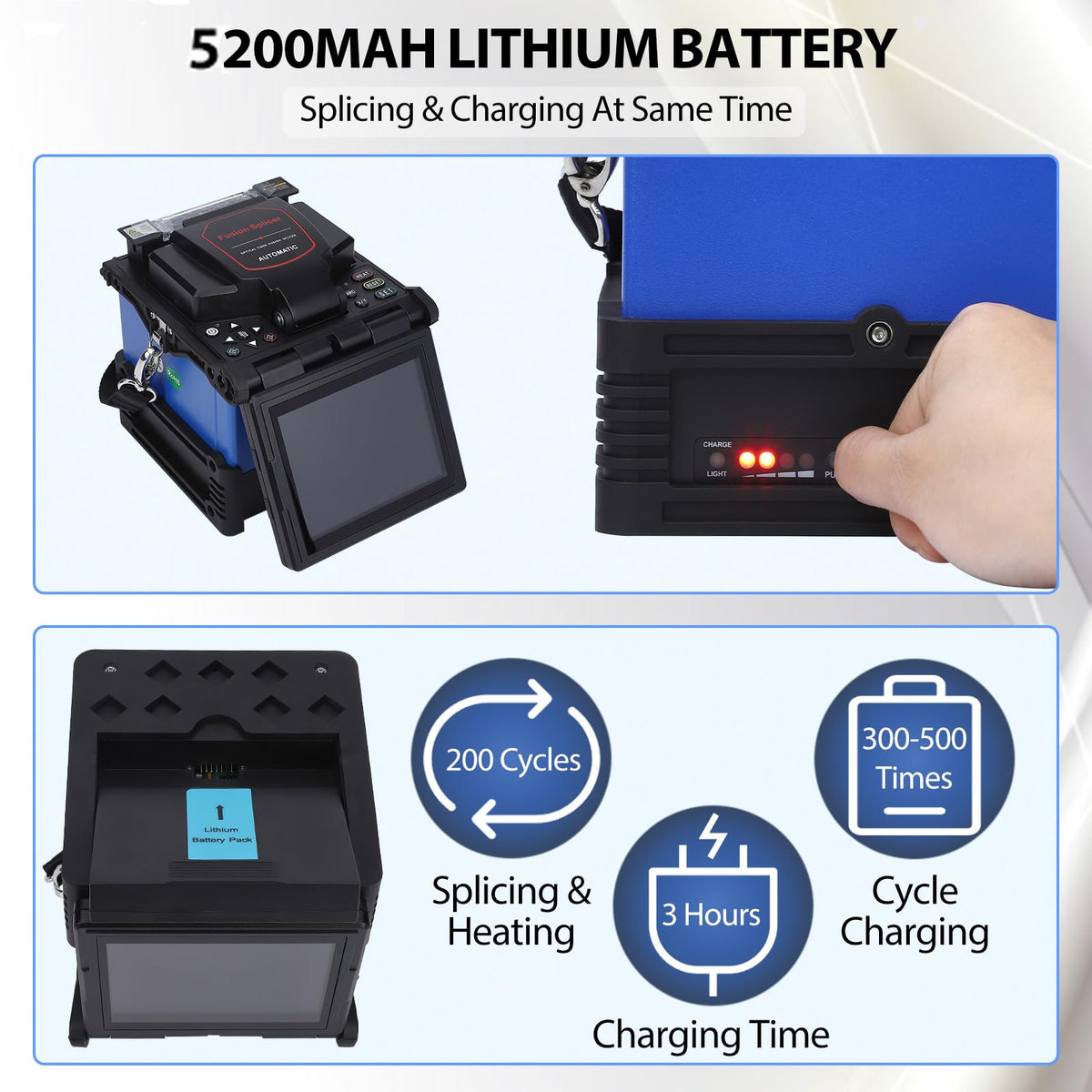

High-Capacity Power

5200mAh Lithium battery supports up to 200 splice cycles with rapid 3-hour charging capability.

Crystal-Clear Visual Control

Navigate complex field environments with the 5-inch high-resolution LCD screen. Offering up to 300x magnification for dual X/Y axis observation, the FL-118 provides absolute clarity before, during, and after every splice.

Built for the Field

The compact 4.4 lbs chassis is designed for maximum portability without sacrificing durability. Whether you are performing FTTH installations or core network maintenance, the lightweight design ensures ease of transport in tight spaces.

Technical Specifications

Model Identifier	Garvee FL-118 (Professional Series)
Alignment Mode	6-Motor Core-to-Core Alignment
Splicing Time	7 Seconds (Fast Mode)
Heating Time	12 Seconds (Adjustable)
Battery Power	5200mAh Li-ion (Up to 200 Cycles)
Optical Loss	SM (0.02dB), MM (0.01dB), DS/NZDS (0.04dB)
Screen Specs	5-Inch High-Res LCD (300x Magnification)
Total Weight	4.4 Pounds (Chassis Only)

Technician's Deployment Guide

Electrode Maintenance: For optimal results, utilize the automated arc calibration feature daily. Battery Lifespan: To maximize battery health, avoid total discharge and store in a cool, dry environment when not in active use. Loss Optimization: Ensure fiber faces are properly cleaned with 99% isopropyl alcohol before cleaving for the lowest possible insertion loss.

Brand	GARVEE
Model	FL-118
Package Dimensions	6.2 x 5.3 x 6.1 inches
Item Weight	4.4 pounds

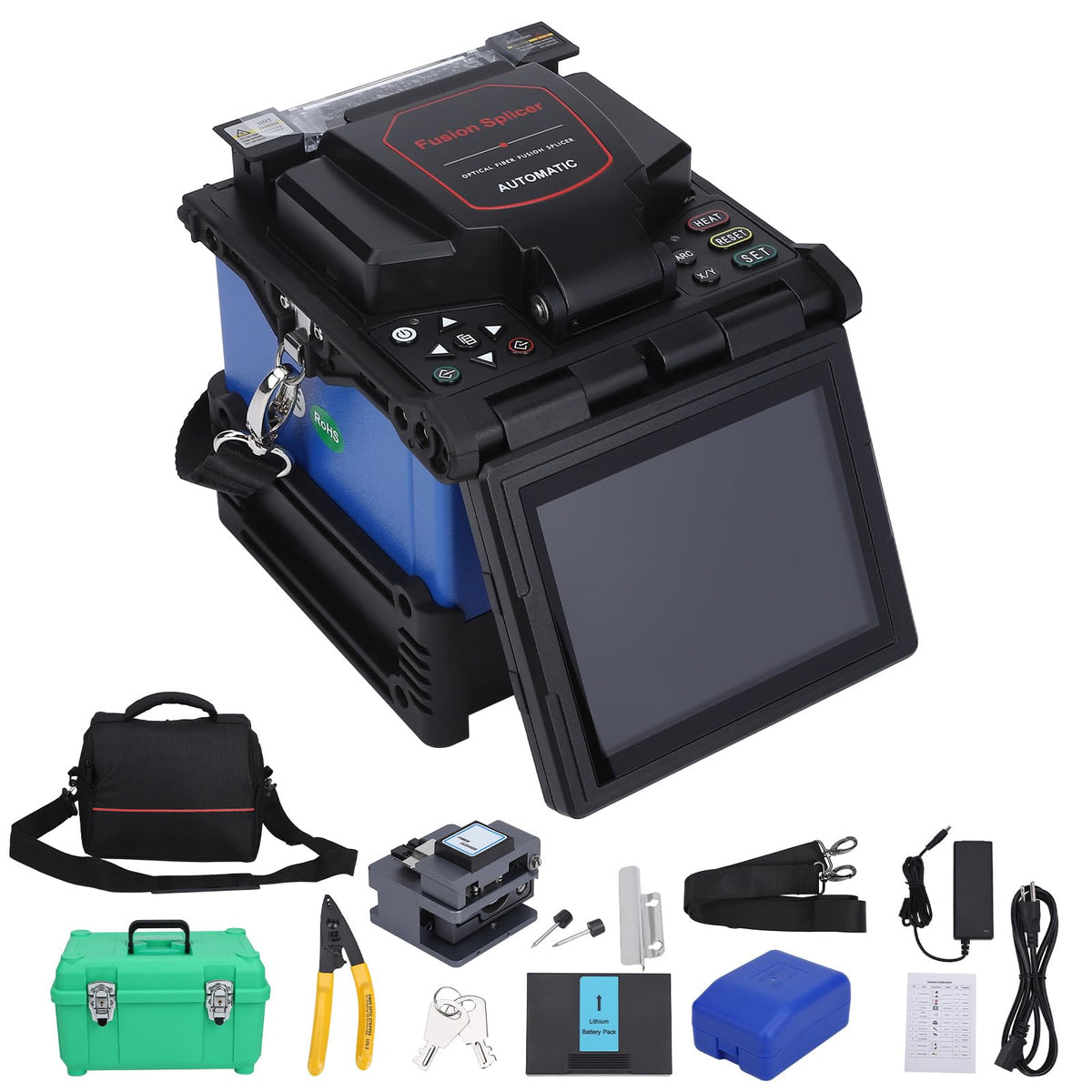

Included Components	1 set Fusion Splicer; 1 pc Cooling Tray; 1 pc Li Battery; 1 pair of Spare Electrodes; 1 pc Fiber Stripper; 1 set Fiber Cleaver; 1 pc AC Adaptor & Power Cord; 1 pc Carrying Case & User Manual
