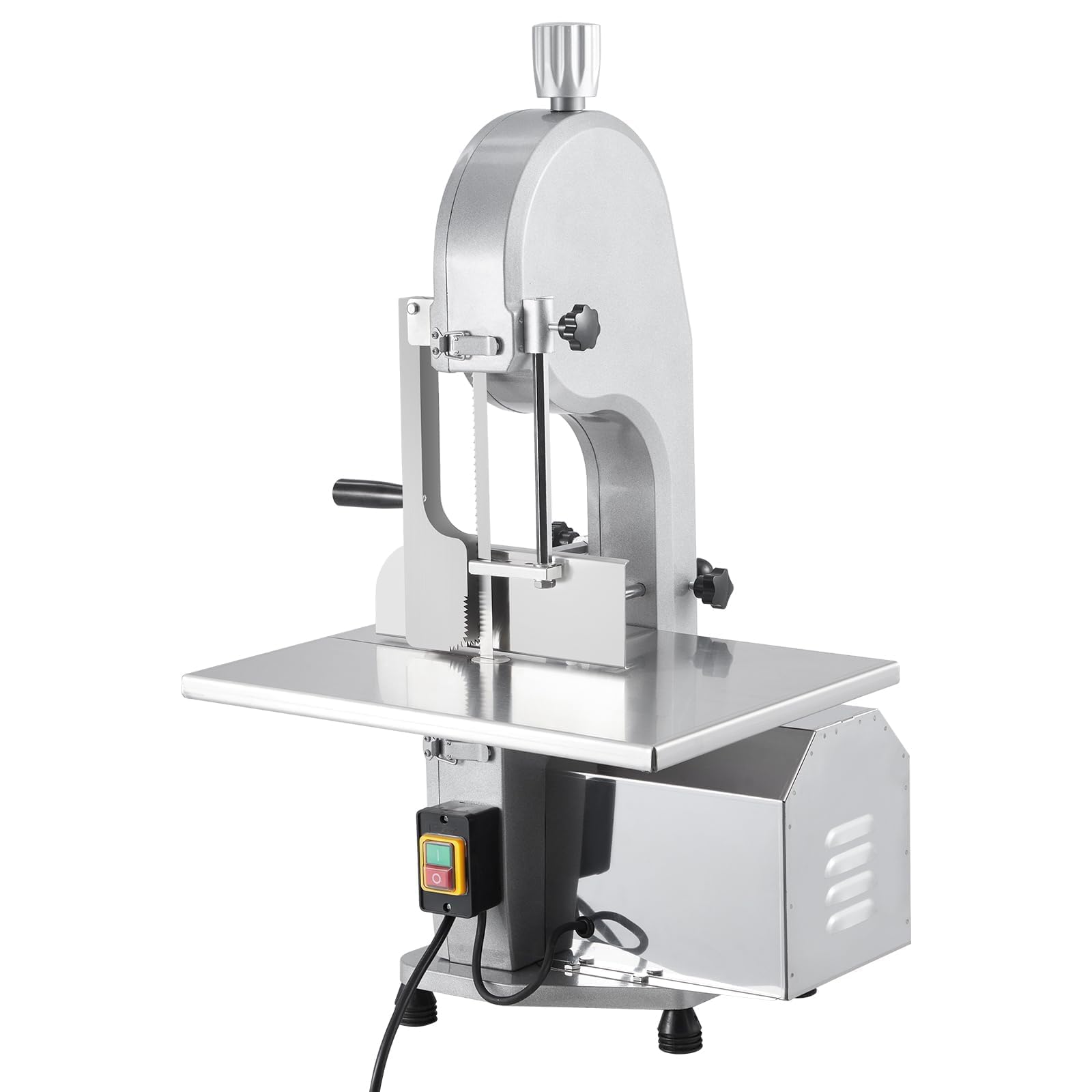

The GARVEE electric meat bandsaw is presented for cutting meat and bones in food-preparation settings. The supplied product images show a vertical blade, a worktable, an adjustable thickness stopper, and a push rod. Confirm the electrical and performance specifications for the exact variant before ordering.
The supplied image shows a cutting-thickness range of 4–200 mm (0.16–7.9 in) and a cutting height of 250 mm (9.8 in). It also shows a scale line and an adjustable stopper for setting the cut. The product bullet text gives a different upper-end thickness figure, so confirm the exact variant specification before purchase.

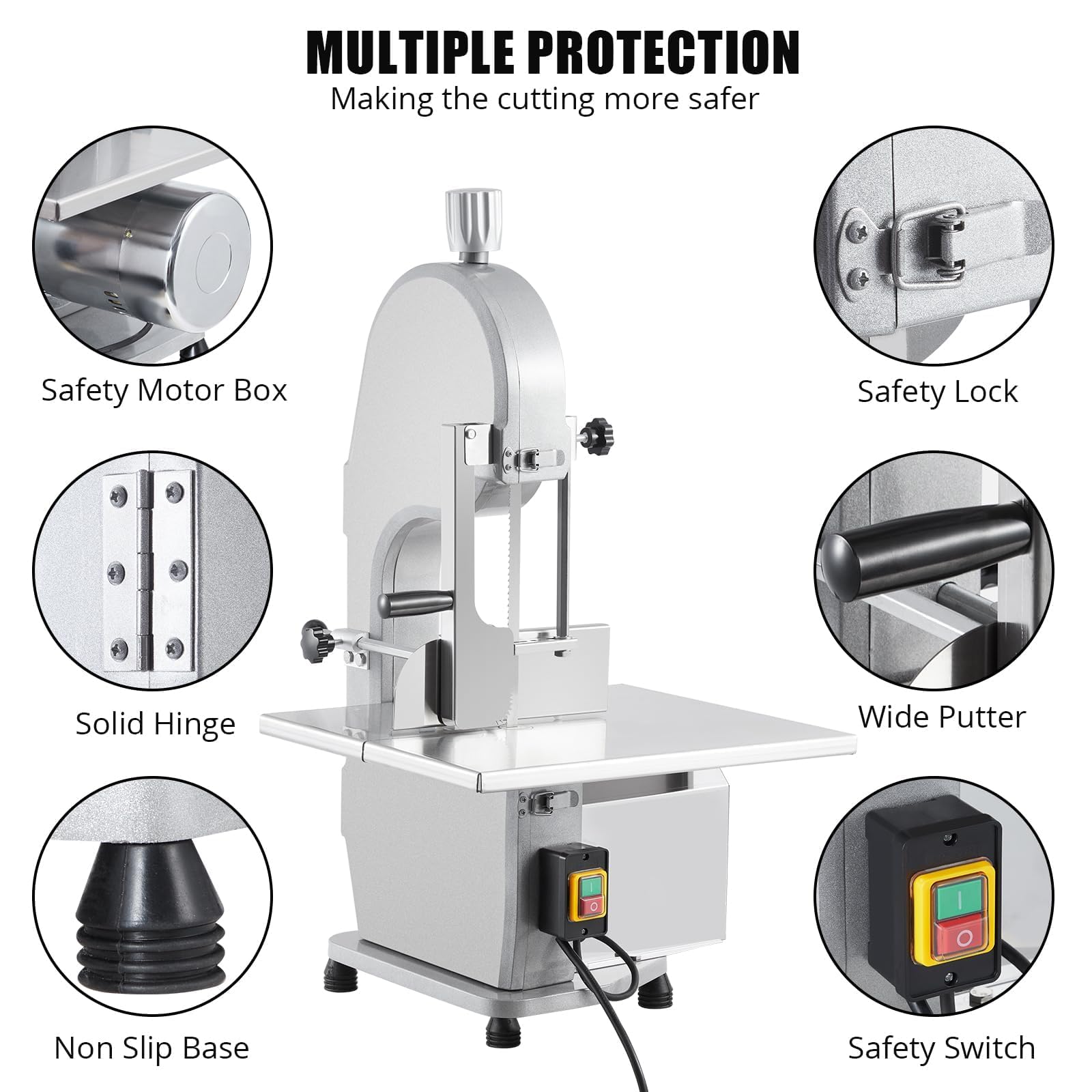

Follow the product manual and safety instructions. Keep hands away from the blade and use the push rod as directed.

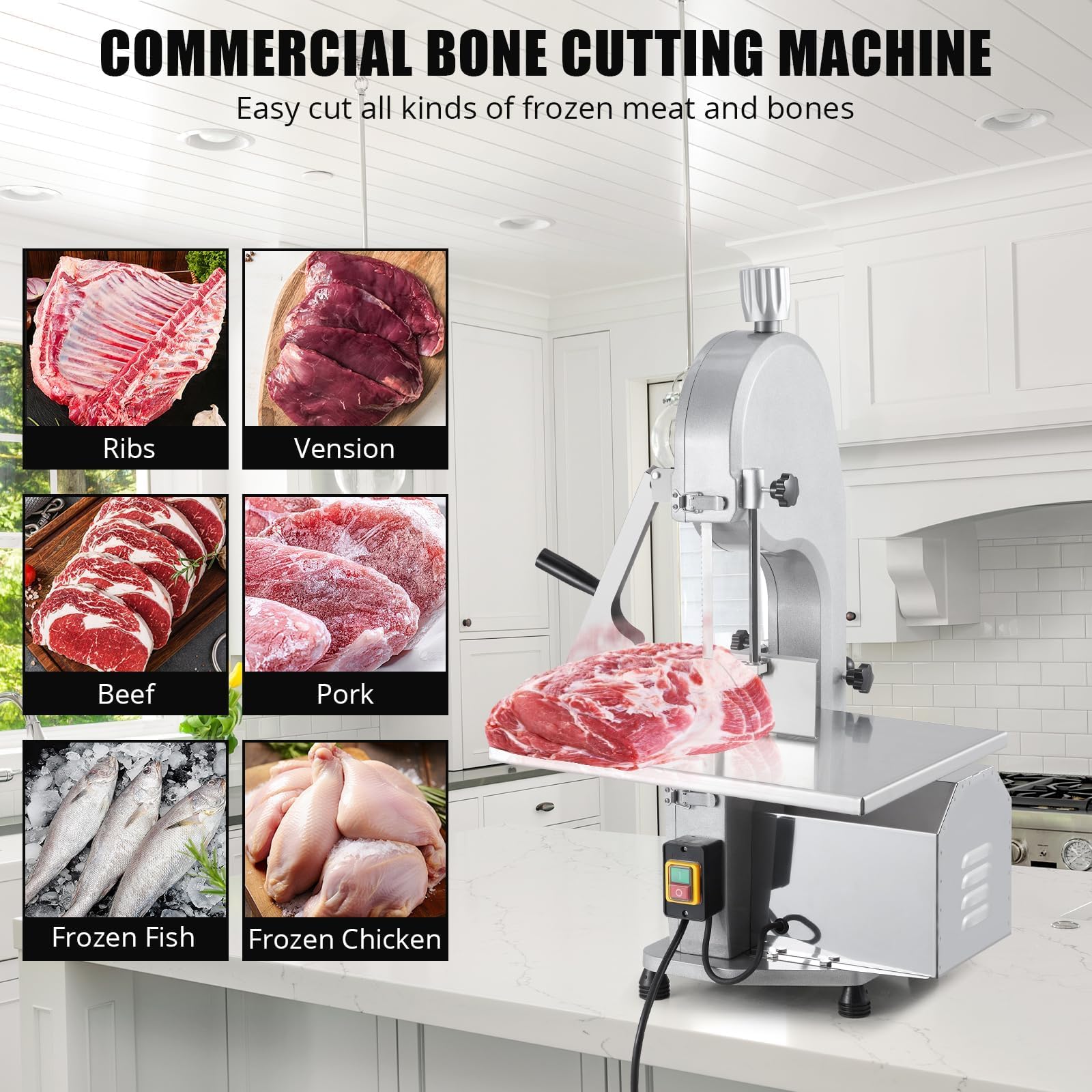

The image presents ribs, beef, pork, frozen chicken, and frozen fish as example food types. The product bullet information also mentions bones and trotters. Refer to the product manual for suitable food types and preparation guidance.

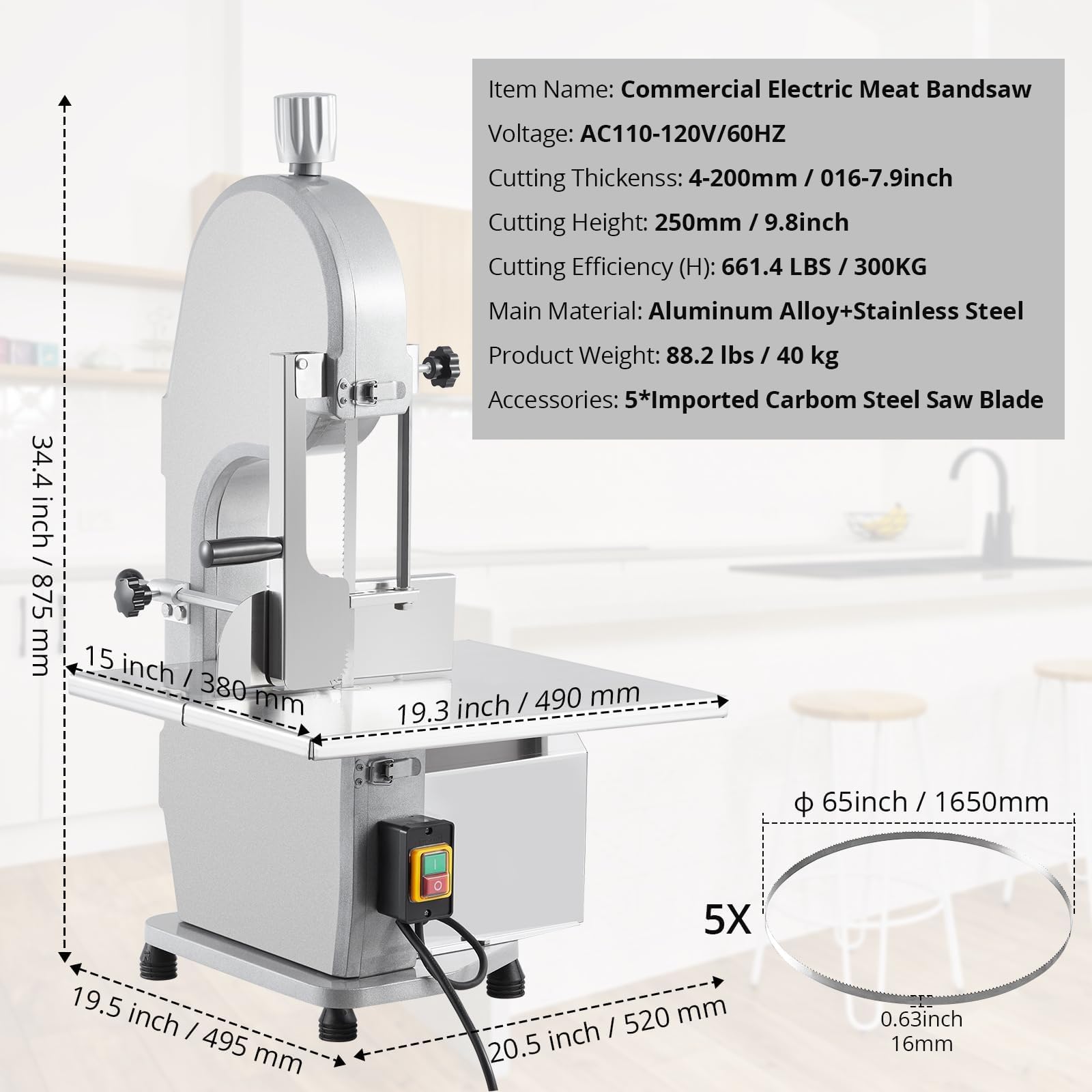

The supplied dimension graphic shows an overall machine size of approximately 20.5 × 19.5 × 34.4 in (520 × 495 × 875 mm). The worktable is listed as approximately 19.3 × 15 in (490 × 380 mm). These figures describe the machine and table; allow additional workspace for the operator, food handling, and cleaning. The supplied materials do not state a required operating clearance.
| Overall machine dimensions | Approximately 20.5 × 19.5 × 34.4 in (520 × 495 × 875 mm), as shown in the supplied dimension graphic. |
| Worktable dimensions | Approximately 19.3 × 15 in (490 × 380 mm), as listed in the supplied product information. |
| Cutting-thickness range | 4–200 mm (0.16–7.9 in), as shown in the supplied graphics. The product bullet text gives a different upper-end figure; verify the exact variant. |
| Cutting height | 250 mm (9.8 in), as shown in the supplied product graphics. |
| Voltage / frequency | AC 110–120V / 60Hz, as listed in a supplied specification graphic. Confirm compatibility with the product label and local power supply. |
| Motor power | Supplied information lists different power ratings, including 1100W and 1500W. Confirm the rating for the exact PHO_15B96TGS variant. |
| Cutting output | Supplied information shows different figures, including 441 lb/h and 661.4 lb/h (300 kg/h). Confirm the correct rating for the selected variant. |
| Product weight | Supplied graphics differ: one lists 37 kg (81.47 lb), while another lists 40 kg (88.2 lb). Confirm the exact variant weight. |
| Saw blade | Supplied graphics show a 65 in (1650 mm) blade with a width of 0.63 in (16 mm). Confirm the included blade quantity; the graphics are inconsistent. |

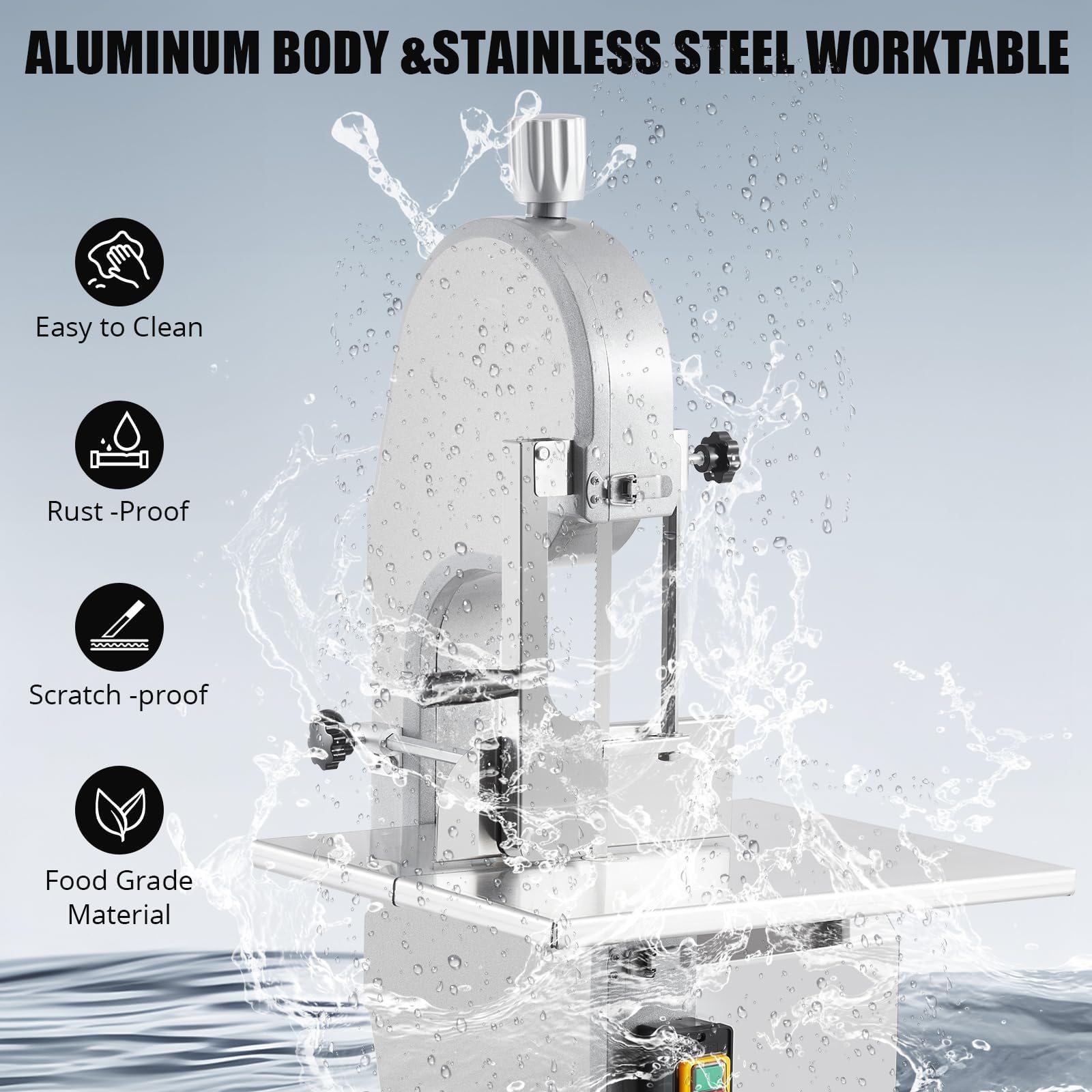

| Materials | Aluminum alloy or die-cast aluminum and stainless steel, as described in the supplied product graphics. |
| Food types shown | Ribs, beef, pork, frozen chicken, and frozen fish are shown in the supplied product graphic. |
Important: The supplied product text and graphics do not agree on motor power, cutting output, product weight, blade quantity, or the upper cutting-thickness figure. Confirm SKU-specific details with the product label or manufacturer specification before publication.
The supplied graphic shows ribs, beef, pork, frozen chicken, and frozen fish. Other supplied product information also mentions bones and trotters. Consult the product manual for suitable food types and preparation guidance.
The supplied dimension graphic lists an overall size of approximately 20.5 × 19.5 × 34.4 in (520 × 495 × 875 mm), and the worktable is listed as approximately 19.3 × 15 in (490 × 380 mm). The supplied materials do not specify a minimum operating clearance, so allow additional space for safe operation and handling.
The A+ graphic shows a 4–200 mm (0.16–7.9 in) range. The product bullet text gives a different upper-end value. Confirm the specification for the exact variant before purchase.
The supplied materials show conflicting output figures, including 441 lb/h and 661.4 lb/h (300 kg/h). Confirm the correct capacity for the specific variant.

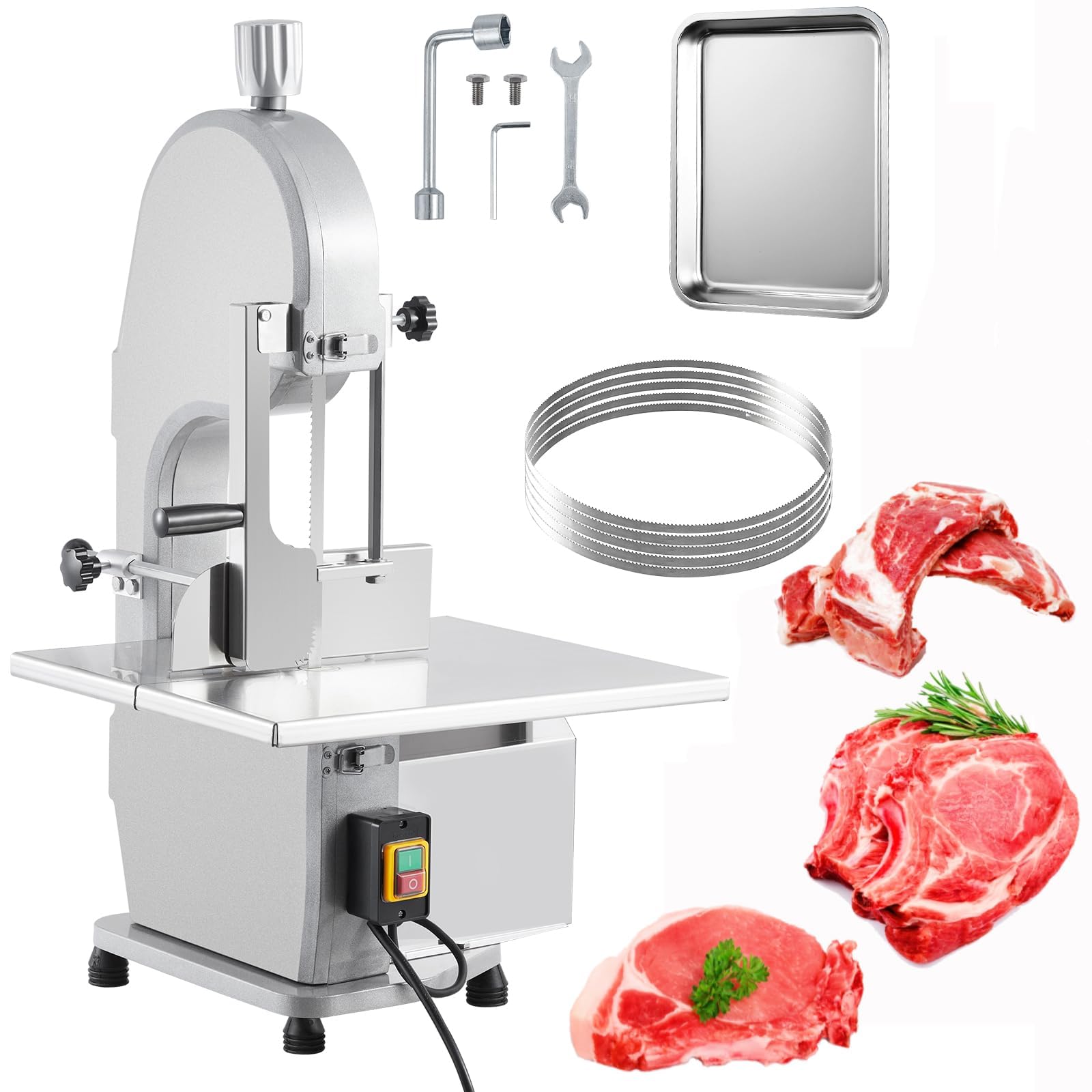

Assembly requirements and complete installation instructions are not specified in the supplied materials. Check the included manual and package contents before setup. Do not assume that tools or accessories shown in an image are included unless the listing confirms it.
Compare the verified machine dimensions, worktable size, voltage, motor power, cutting range, output, and included accessories against your workspace and intended use. Because some supplied figures conflict, verify the exact variant details before making a comparison.

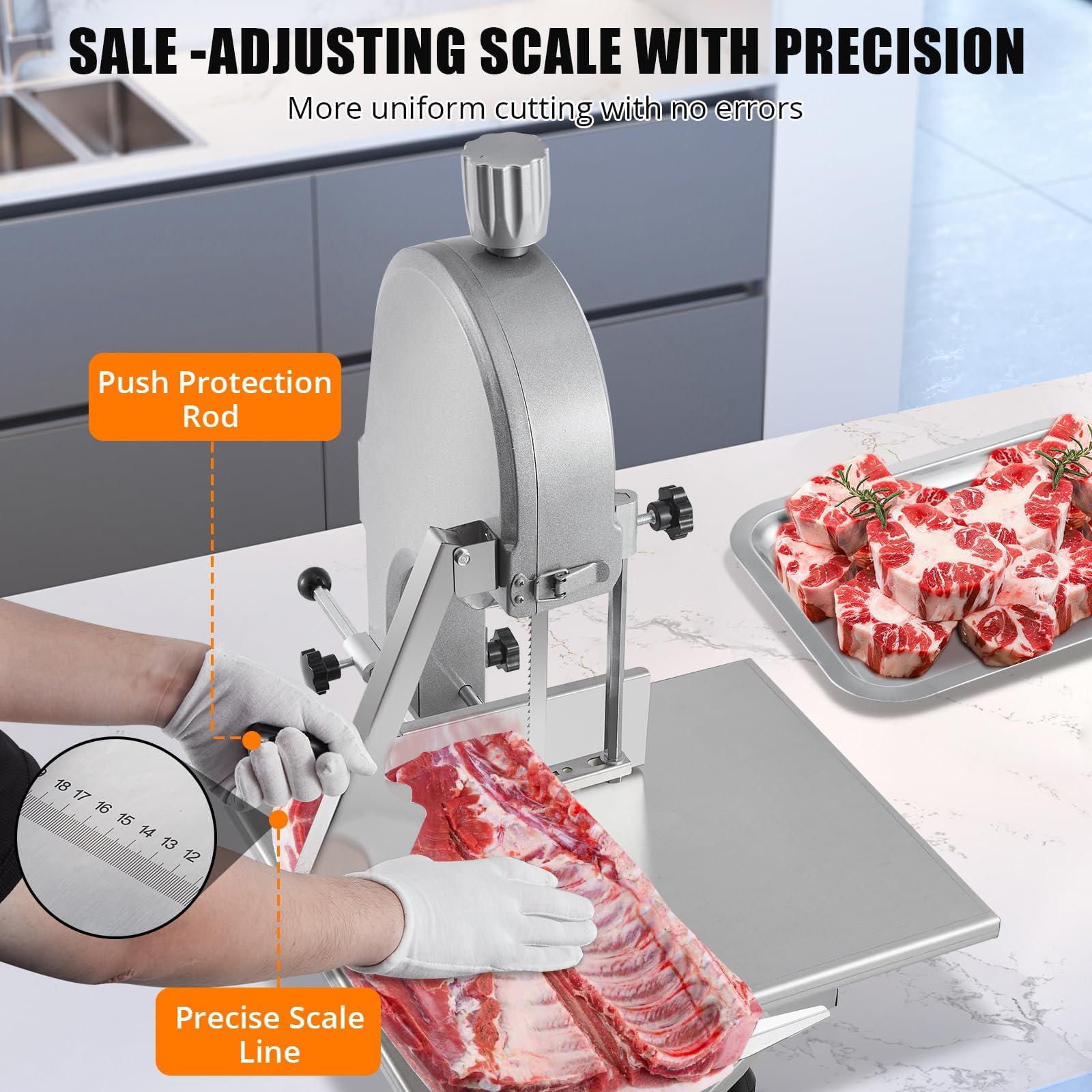

The operation graphic shows adjusting blade tension, setting the thickness stopper, and guiding food with the push rod. Follow the product manual and safety instructions when operating the machine.
The supplied images present this vertical bandsaw for meat and bone cutting, with a scale-marked worktable, adjustable thickness stopper, and push rod. Before purchase, confirm the electrical rating, cutting output, weight, blade quantity, and other variant-specific details for PHO_15B96TGS.
