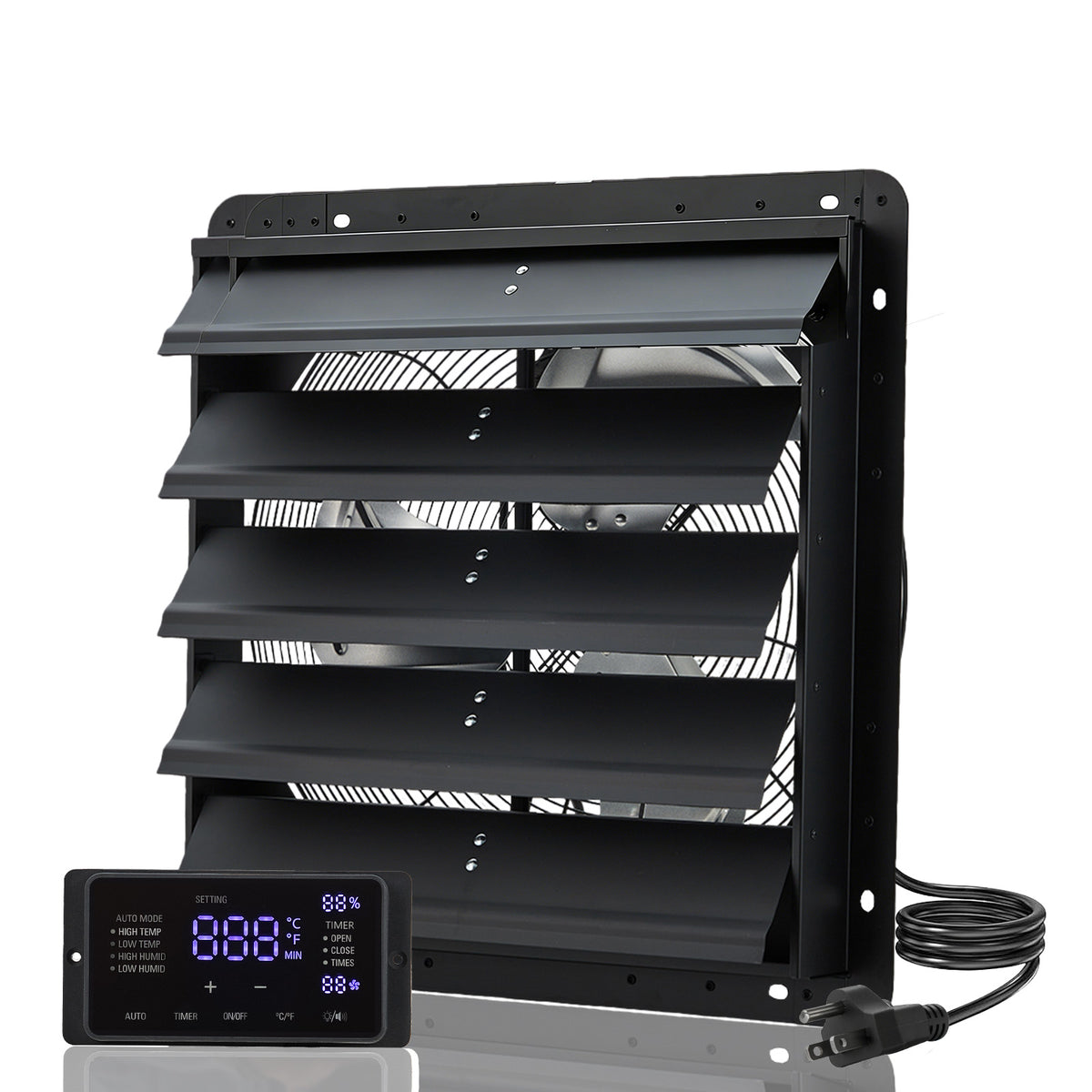

Wall-Mounted Shutter Exhaust Fan with Brushless EC Motor

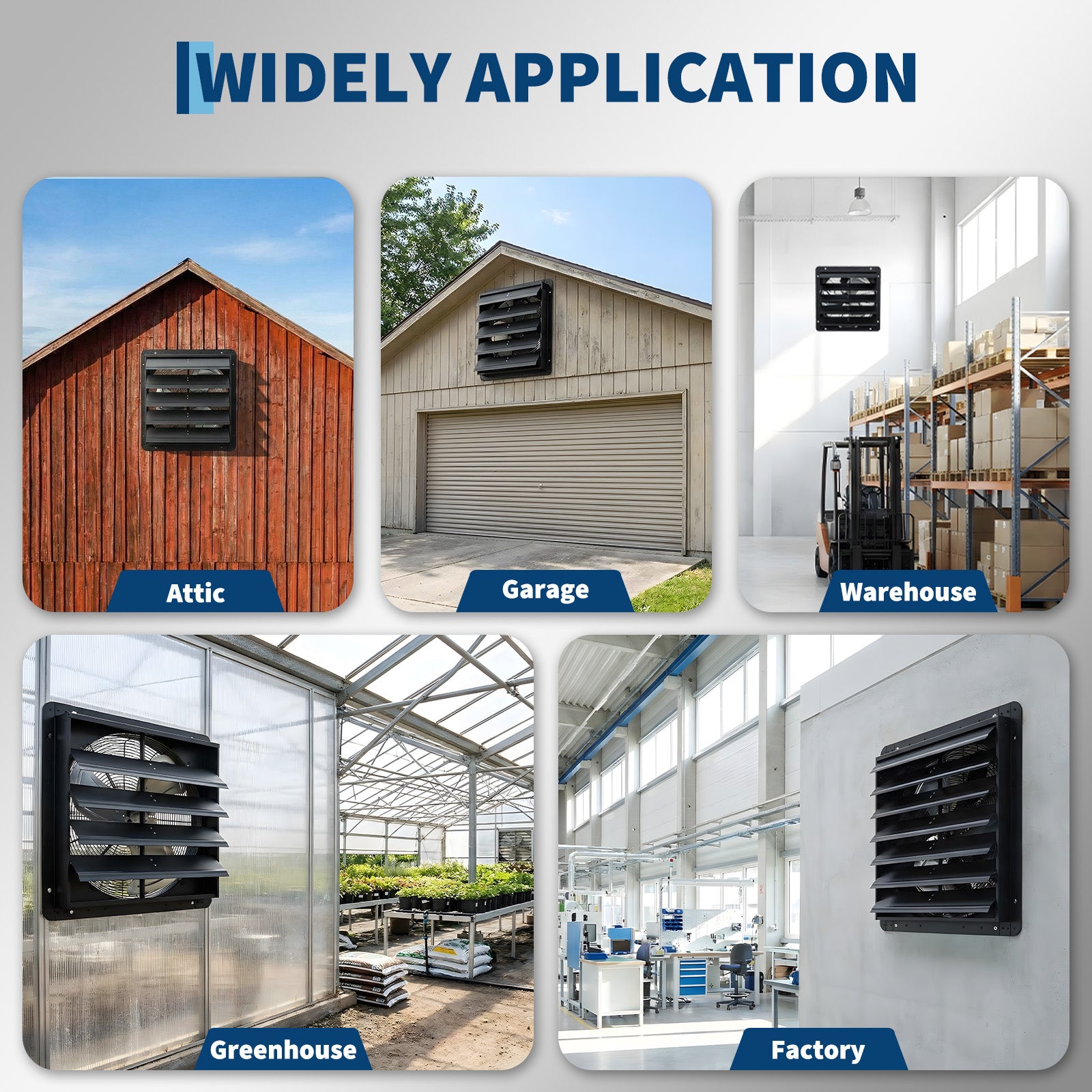

Refresh and protect your space with a high-performance wall mounted shutter exhaust fan designed for attics, garages, greenhouses, workshops, and warehouses. Powered by a brushless EC motor, it delivers strong airflow with efficient, stable operation—ideal for exhausting heat, moisture, and odors.

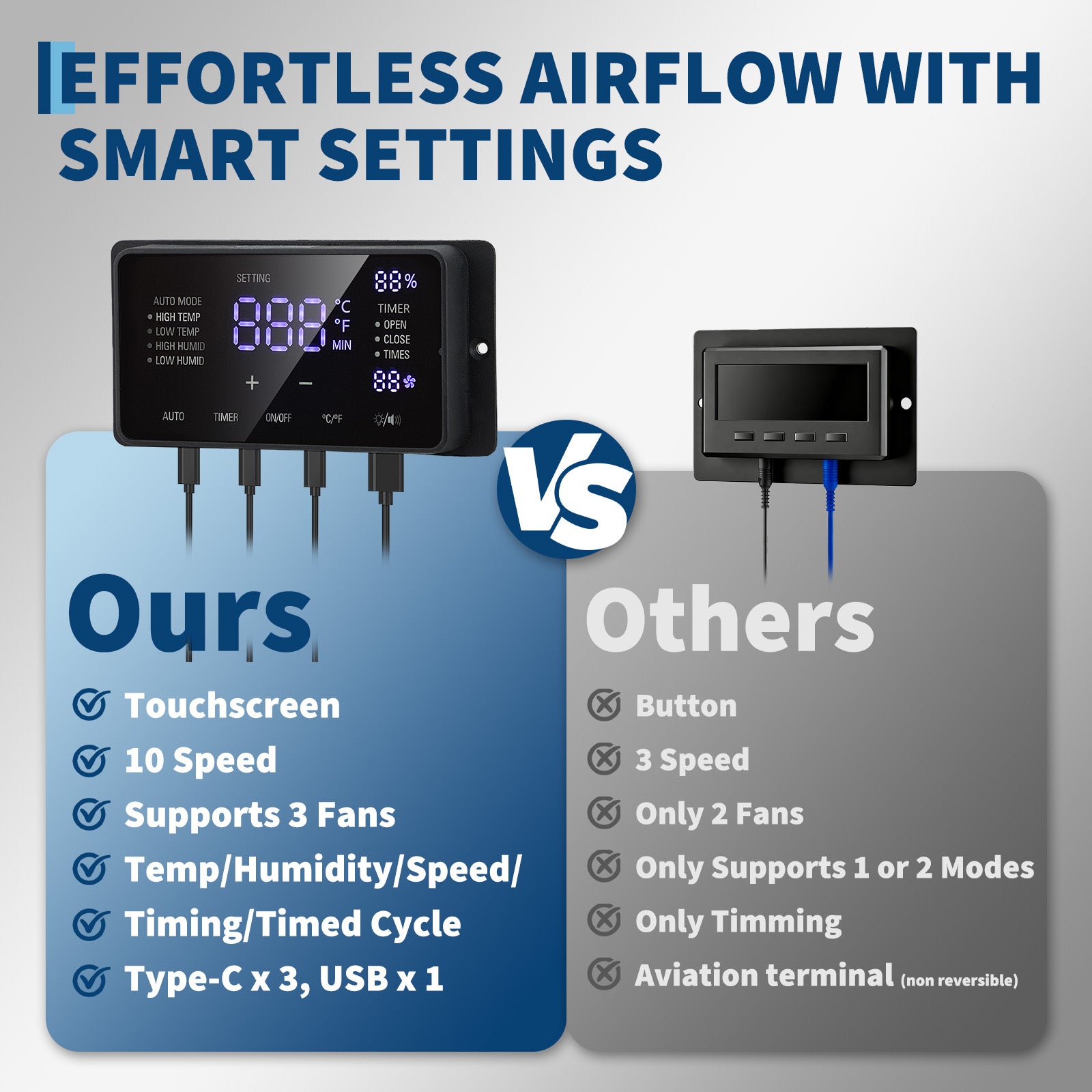

Smart Touchscreen Climate Control
-
10-speed adjustable control for accurate ventilation
-
Digital touchscreen controller with temperature & humidity display
-
Timer and cycle modes to match your schedule

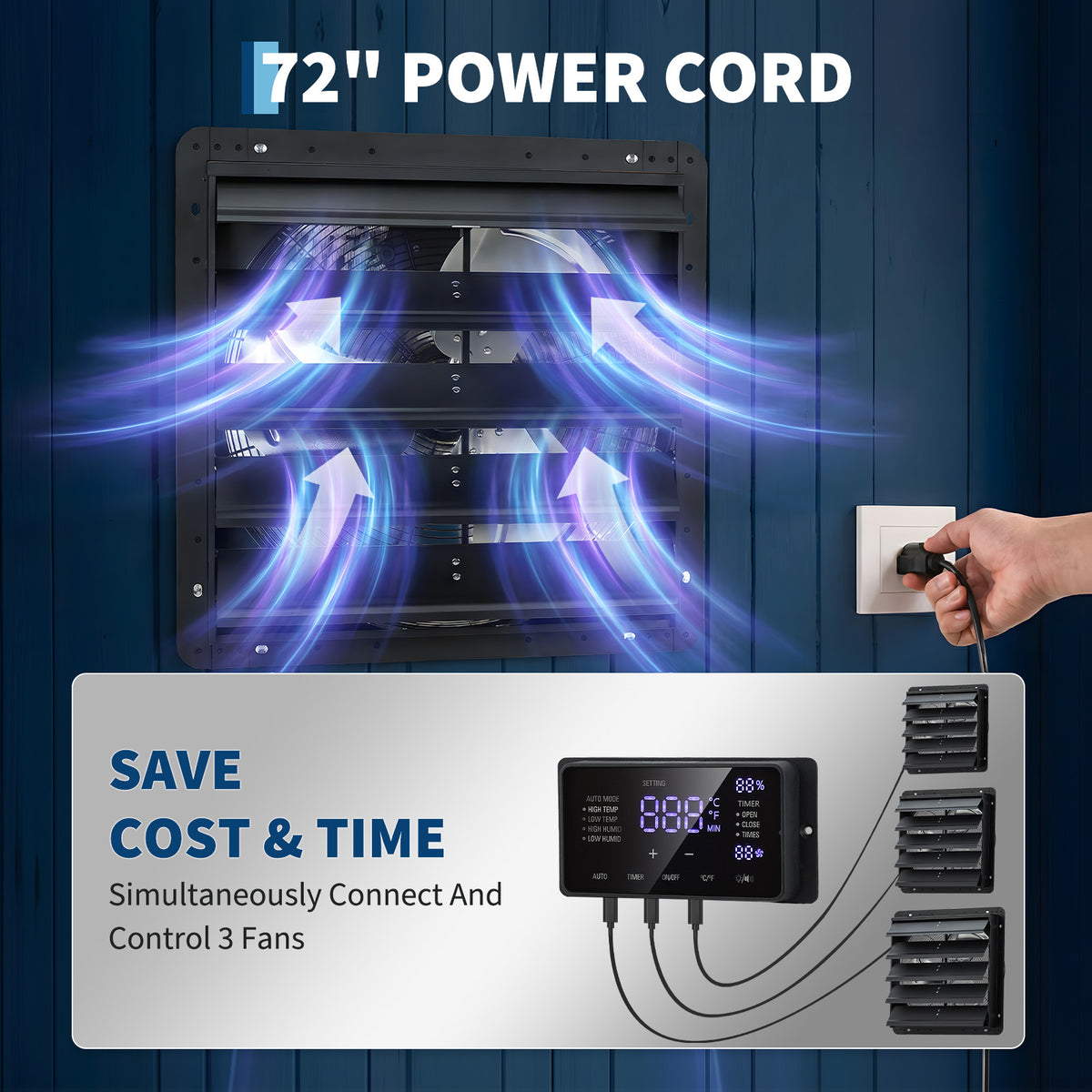

- Controller can manage up to 3 fans via Type-C ports

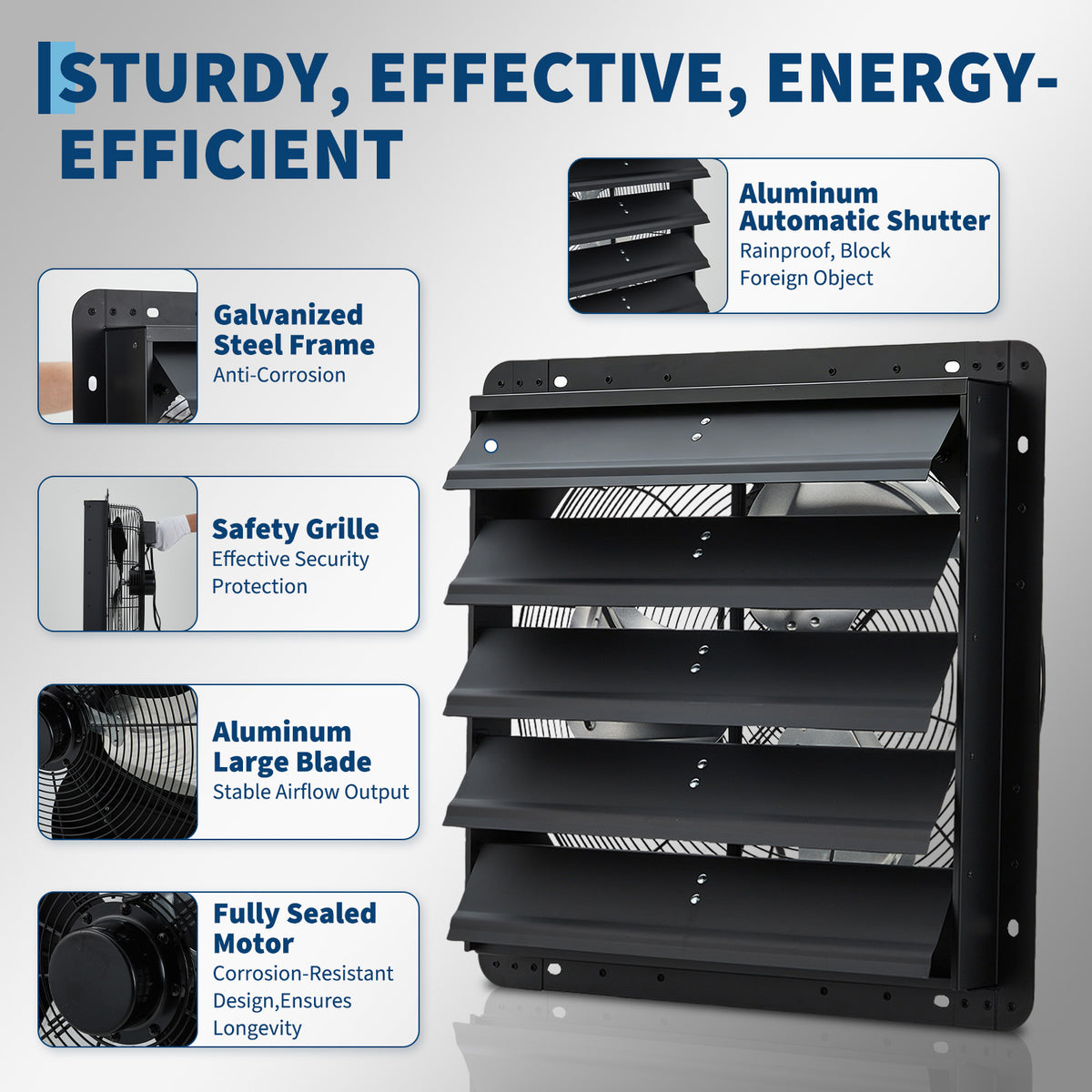

Built for Daily Use
-

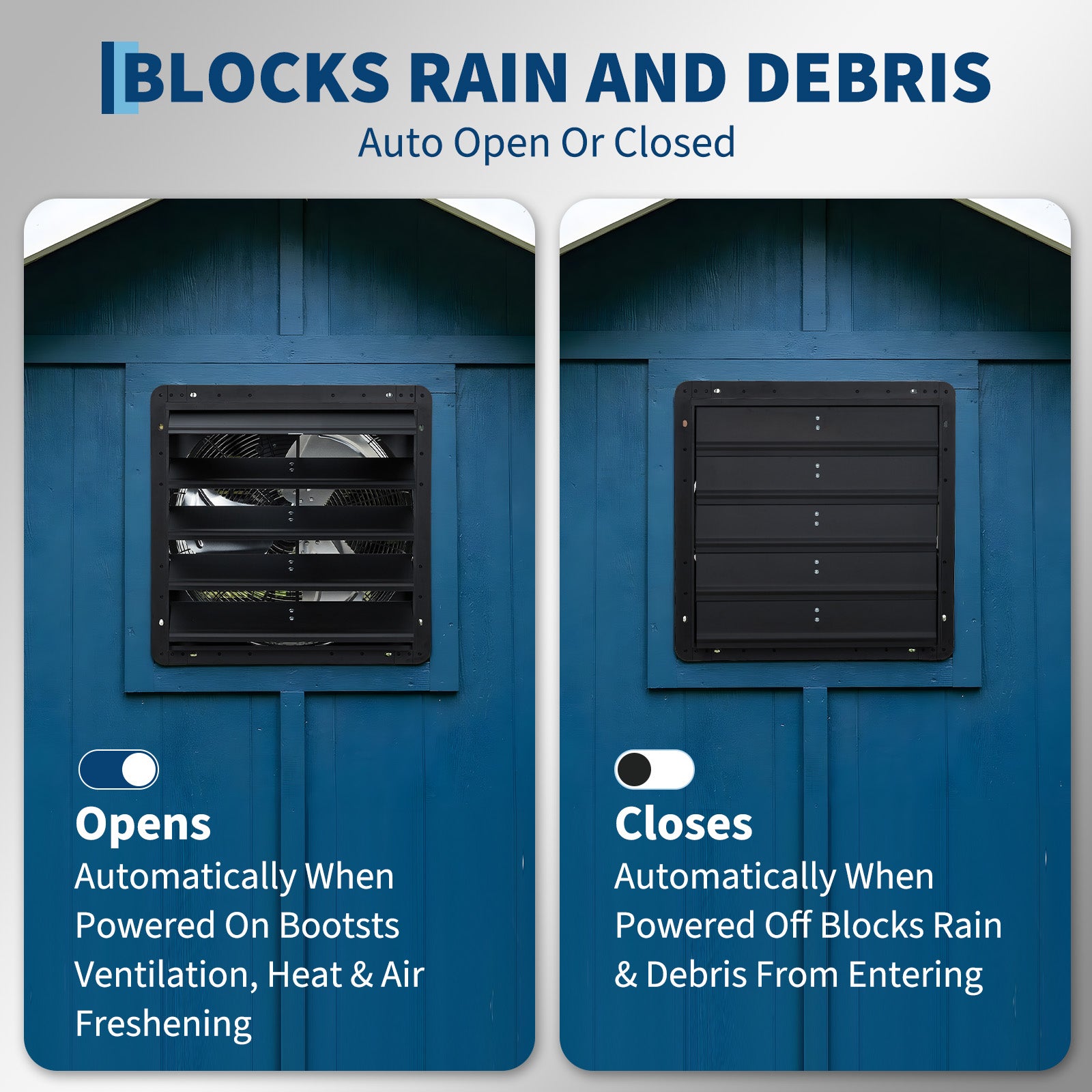

Automatic aluminum louvers open/close to help block airflow reversal, particles, and debris when off
-
Rust-resistant aluminum alloy blades (3-blade design) for dependable airflow
-
Heavy-duty housing (galvanized/carbon steel, black powder coated) for long-term durability
-
Quiet operation up to ≤70 dB

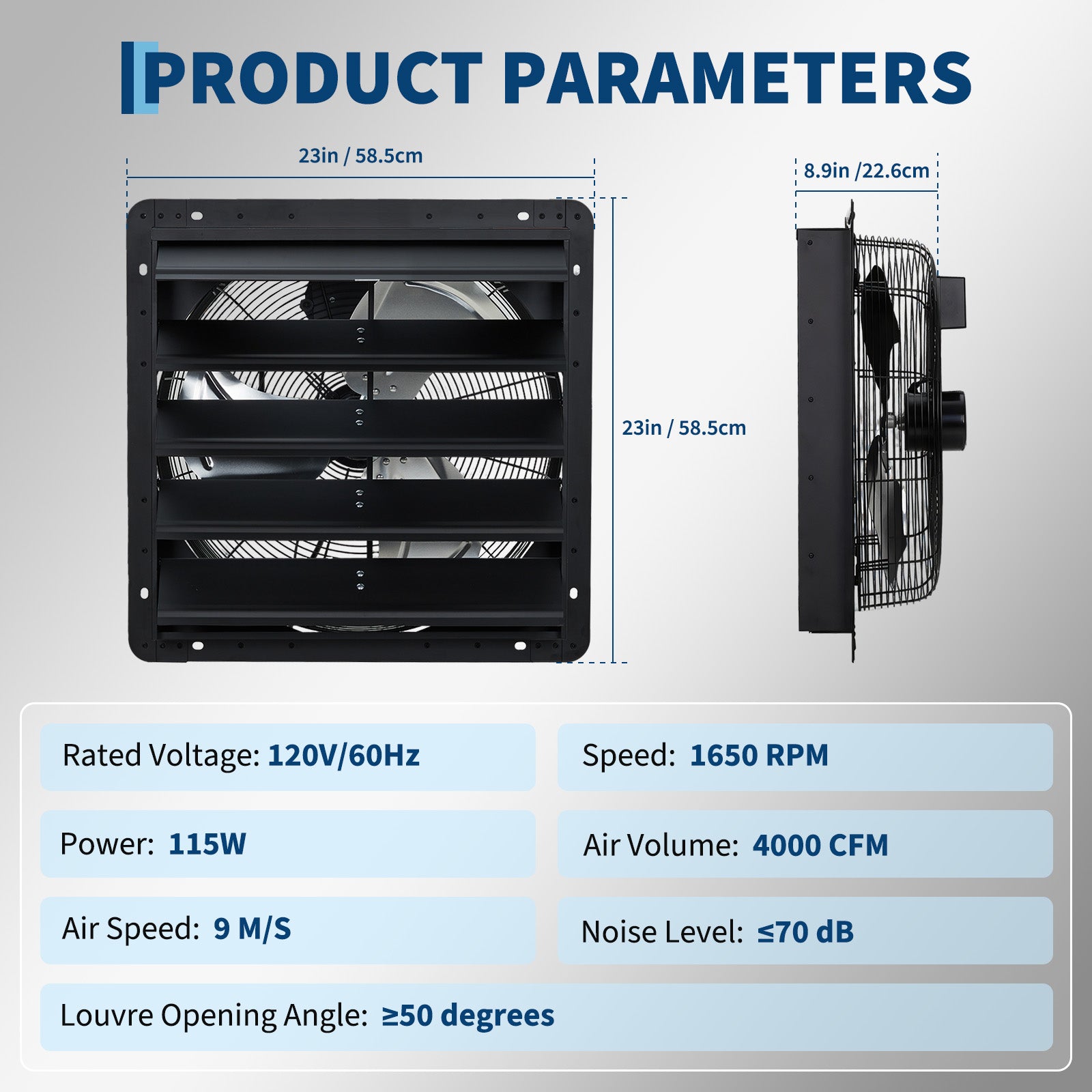

Key Specifications
- Power: 120V AC, 60Hz
- Airflow option: 1500 CFM (also available in higher-airflow sizes up to 4000 CFM)
- Speed: 1650 RPM
- Louver opening angle: ≥50°
- Weight (1500 CFM model): 9.48 lb
- Power cord: 6–8 ft (by size)
- Mounting: Wall mount (pre-assembled)
In the Box
- Shutter Exhaust Fan
- Touchscreen Controller
- Power Cord
- Mounting Kit
- Instruction Manual
Installation & Care
For best ventilation, mount approximately 10–16 ft above ground. Use in dry, clean environments. Clean blades/guard monthly with a soft cloth and gentle detergent, and disconnect power before maintenance.
