Confined Space Assist Tripod Kit with Winch & Fall Protection

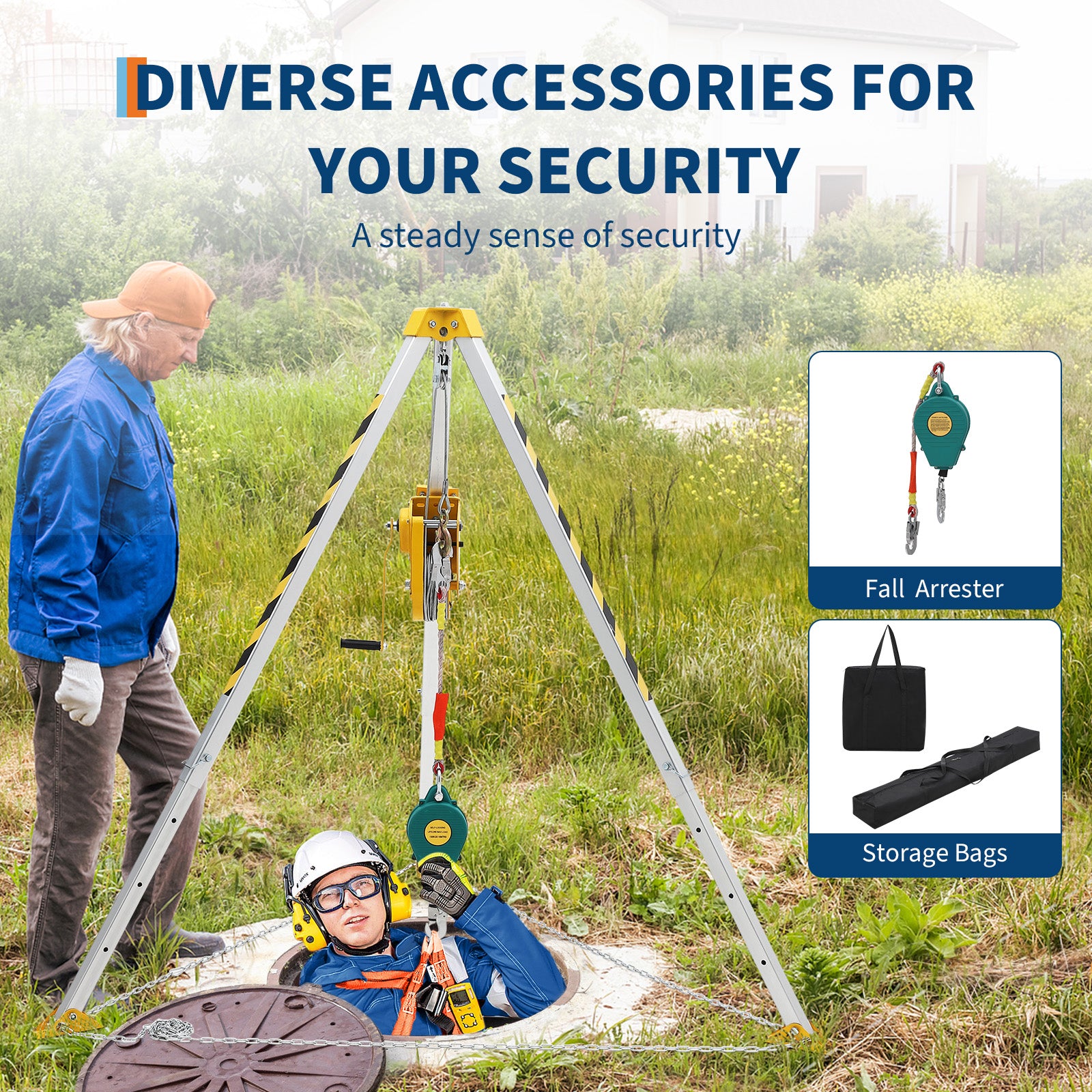

Built for professional confined-space work, this complete assist tripod lifting hoist system is designed for fast setup, stable positioning, and dependable fall protection in manholes, tanks, sewers, tunnels, and similar vertical access points. The kit includes a collapsible tripod, a 1200 lb manual winch with steel cable, a 32.8 ft (10 m) fall arrester, a reflective safety perimeter chain, and a durable carry/storage bag.
Key Safety & Performance Features
-
1200 lb auto-locking winch: Heavy-duty manual winch provides controlled raising/lowering with a built-in self-locking device for secure operation.
-

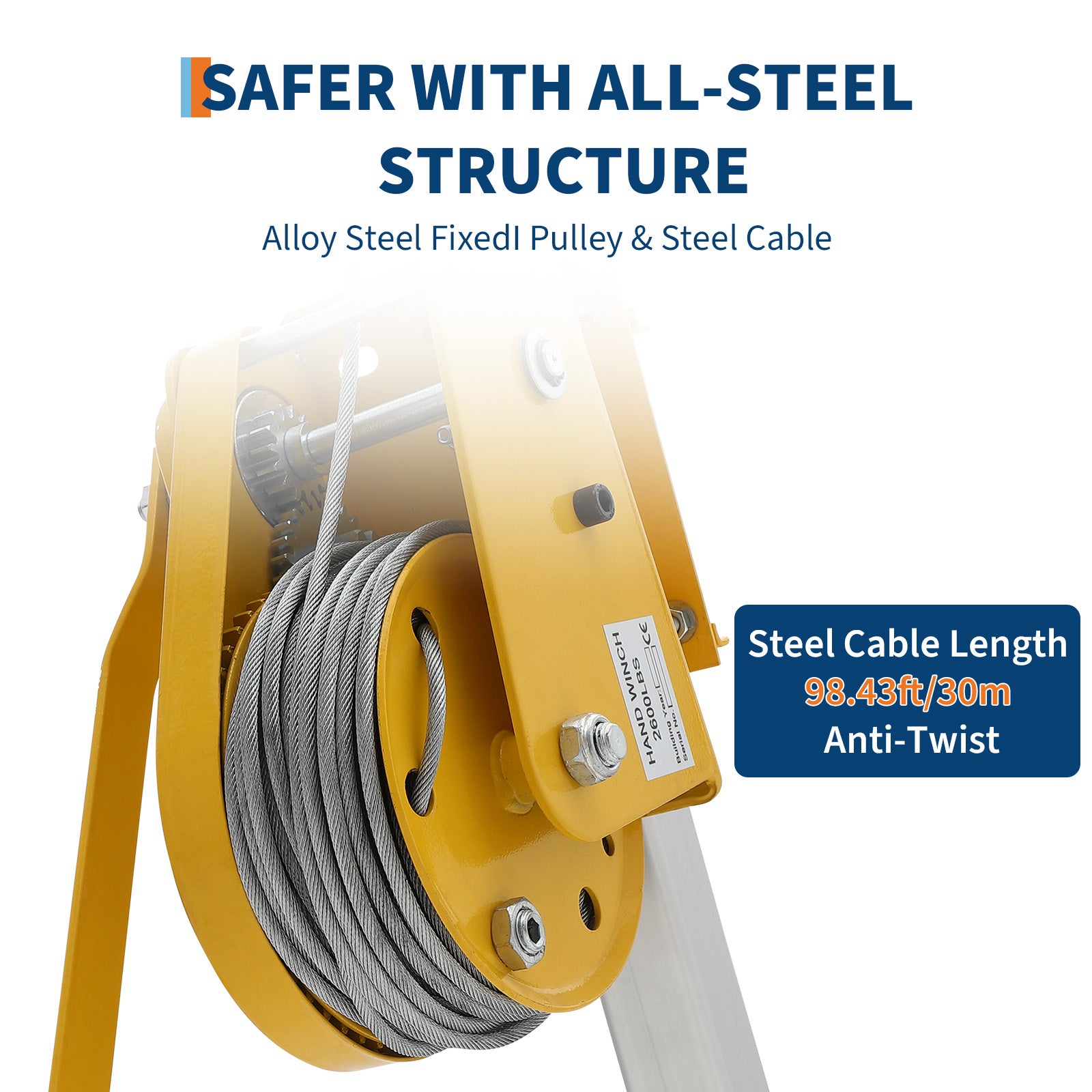

98 ft (30 m) stainless steel core cable: Φ4 mm anti-corrosion cable helps resist tangling and supports deep confined-space access.
-
Certified capacity guidance: Maximum personnel capacity 330 lb (150 kg); static load tested up to 1,760 lb (800 kg). Operates with minimal manual force (≤500N).
-

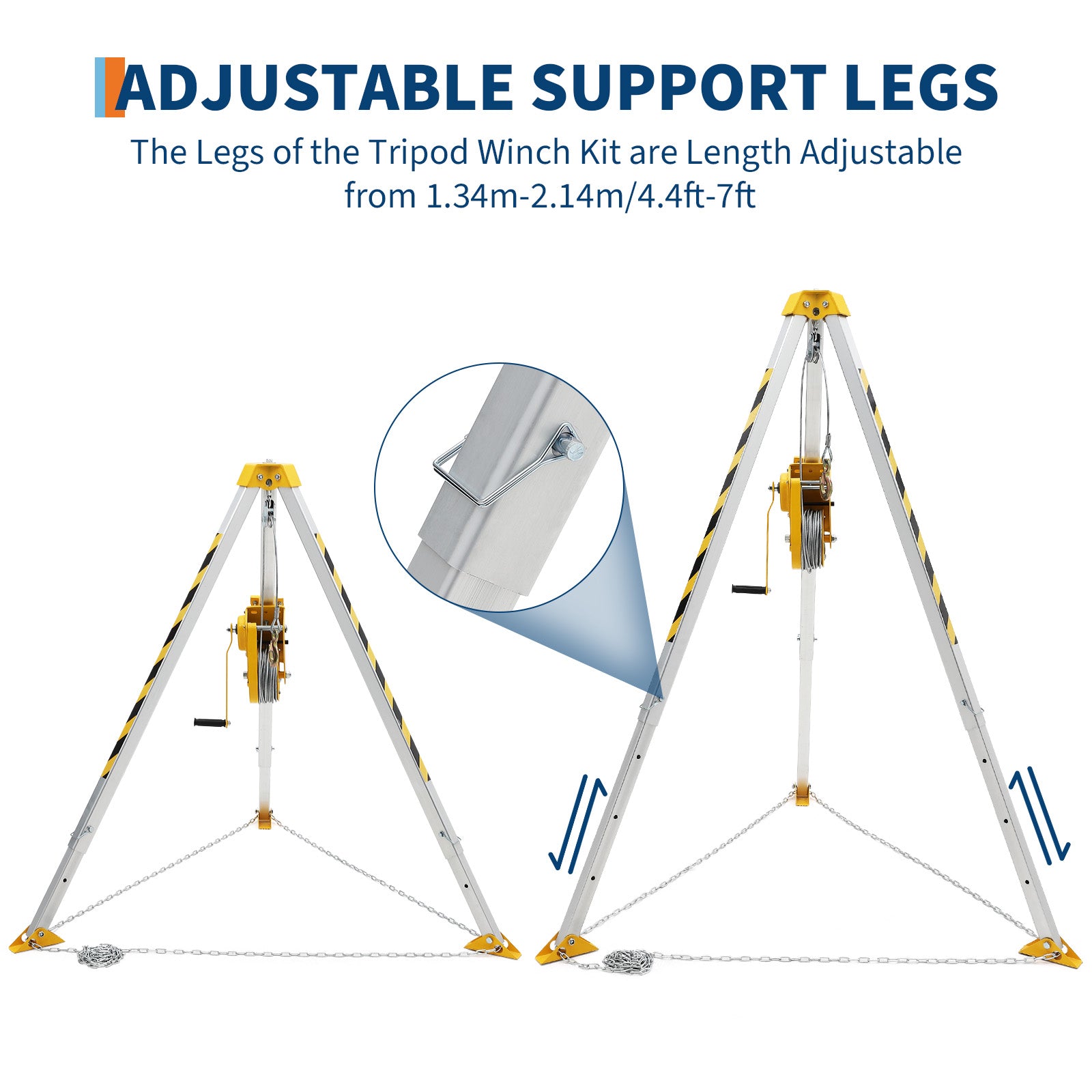

Adjustable tripod height: Legs adjust for a working height range of approx. 4–7 ft to adapt to varied entry points and uneven terrain.
-
Aerial vehicle-grade aluminum frame: Lightweight, strong, and built for harsh jobsite conditions; operates in temperatures from -4°F to 140°F.
-

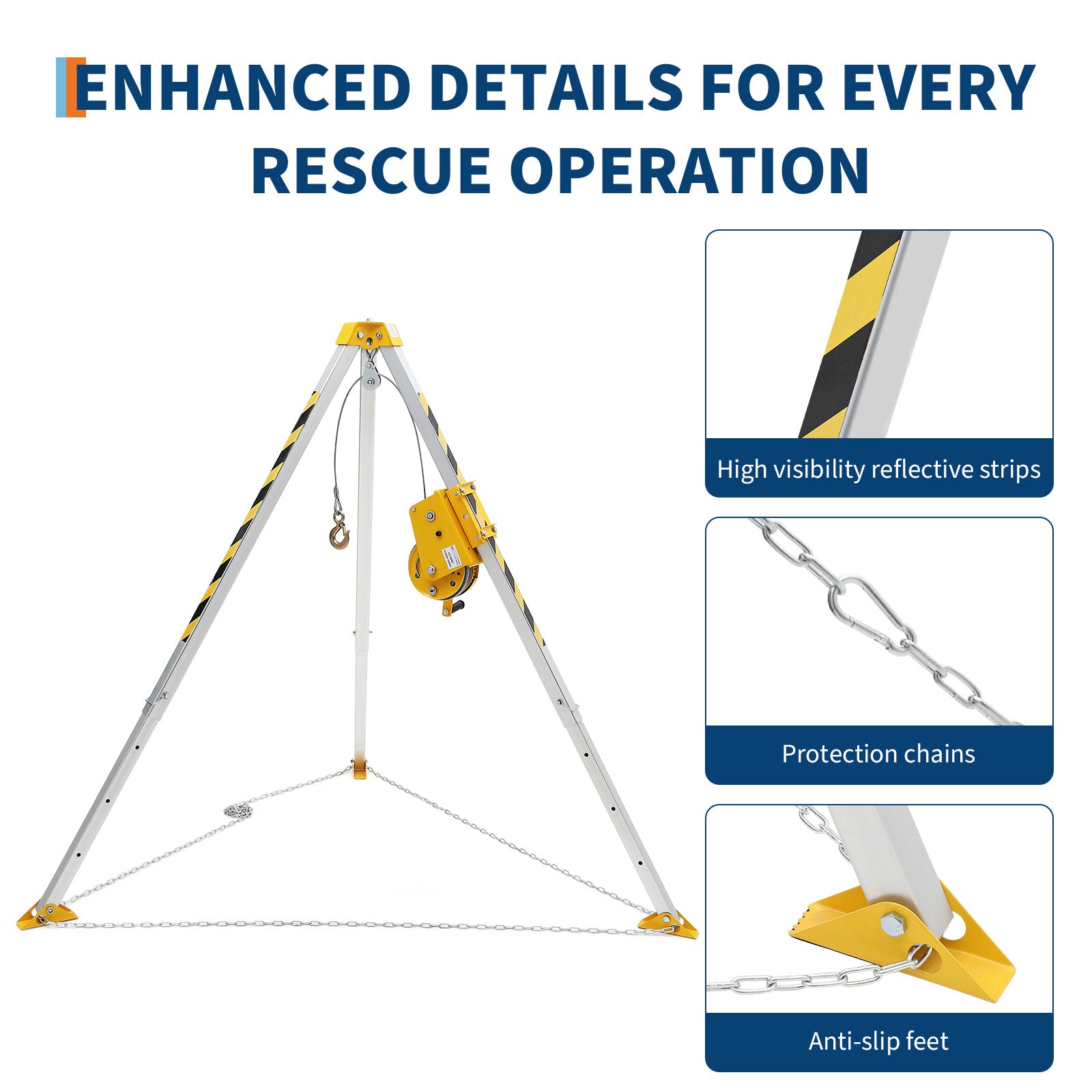

Reflective safety chain & anti-slip handling: Adds stability and visibility for low-light, high-risk environments.
What’s Included

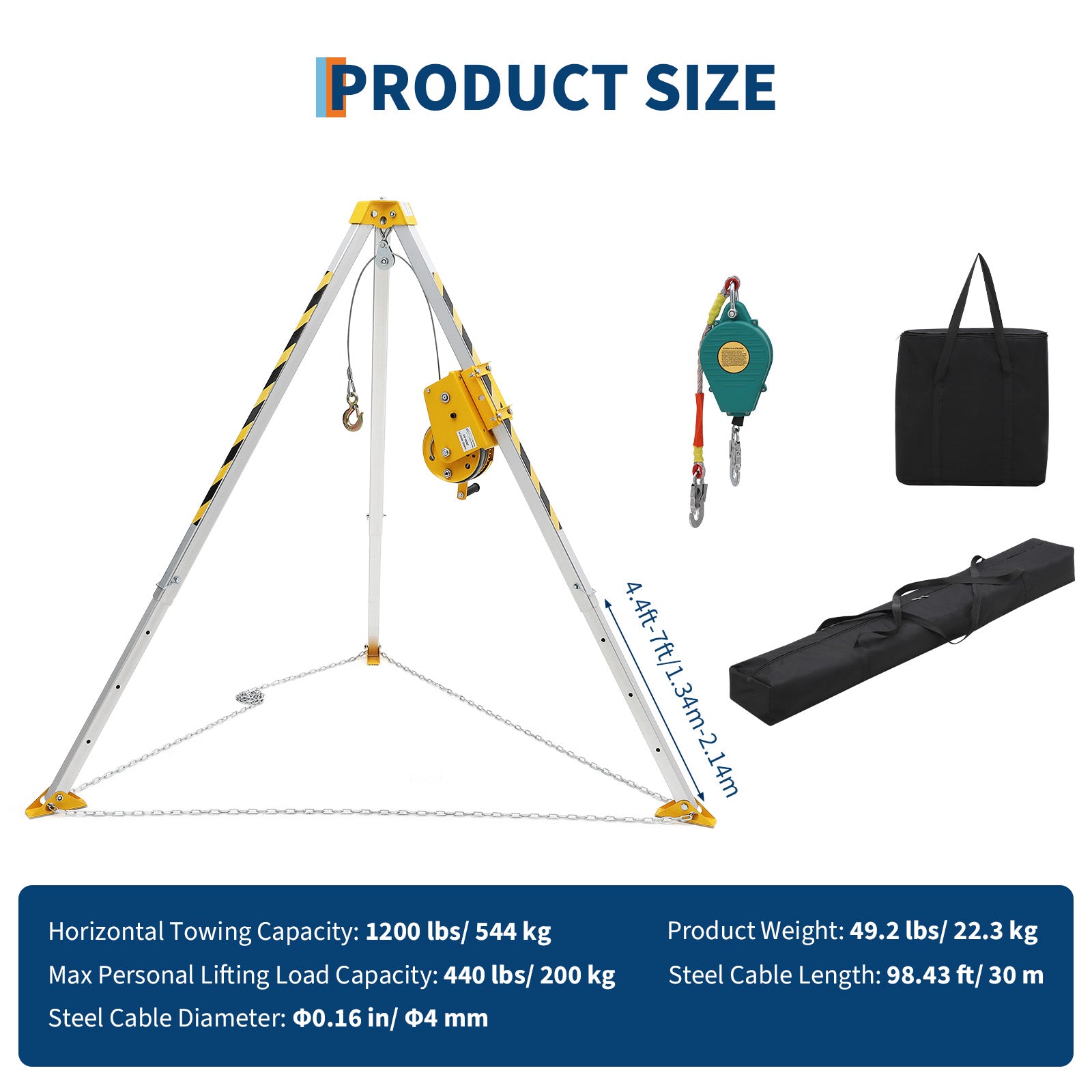

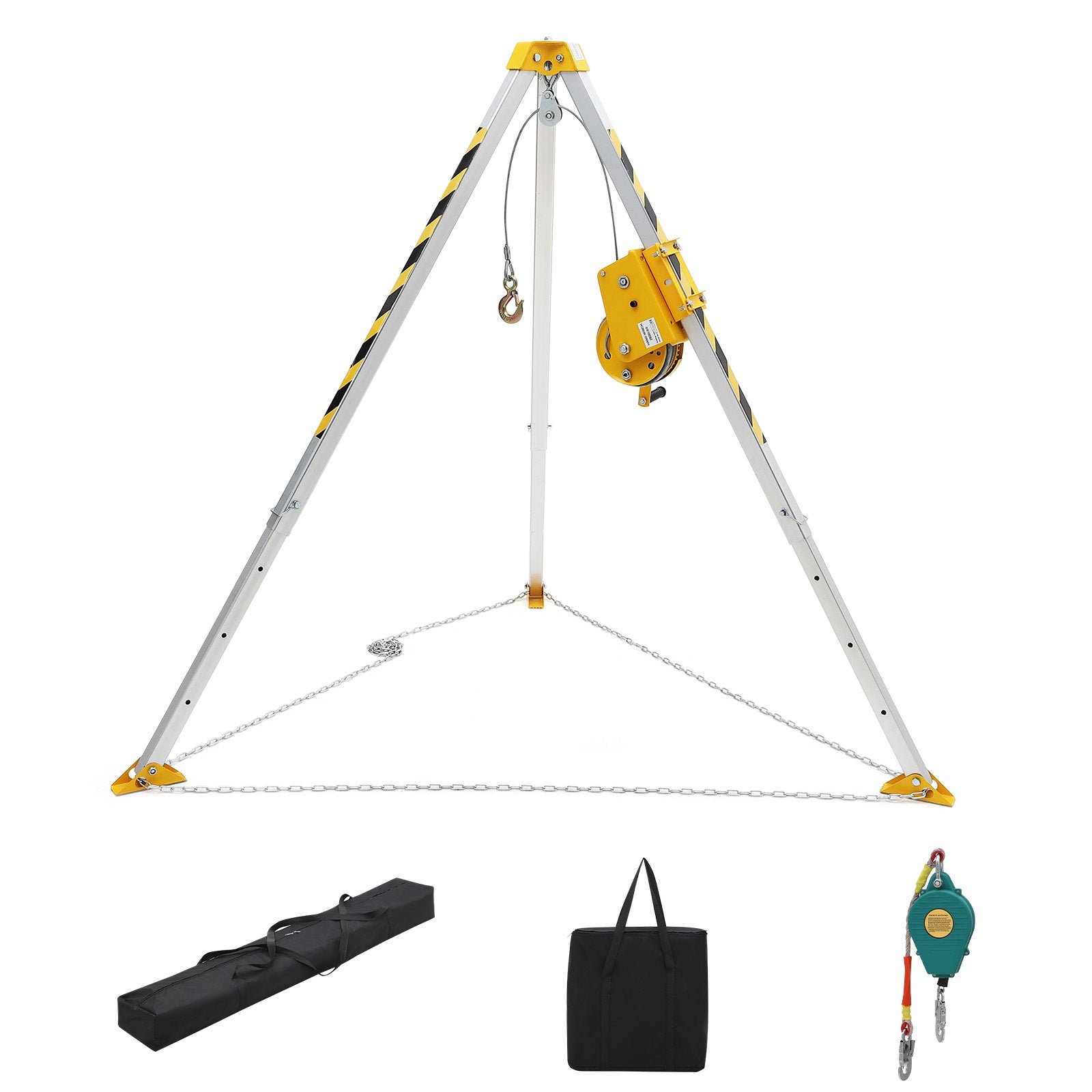

1× collapsible assist tripod, 1× 1200 lb winch with 98 ft cable, 1× 32.8 ft fall arrester, 1× reflective safety perimeter chain, 1× carry/storage bag, hooks/hardware set.
Note: The winch handle may arrive disassembled for shipping safety and reattaches in seconds.
